Description

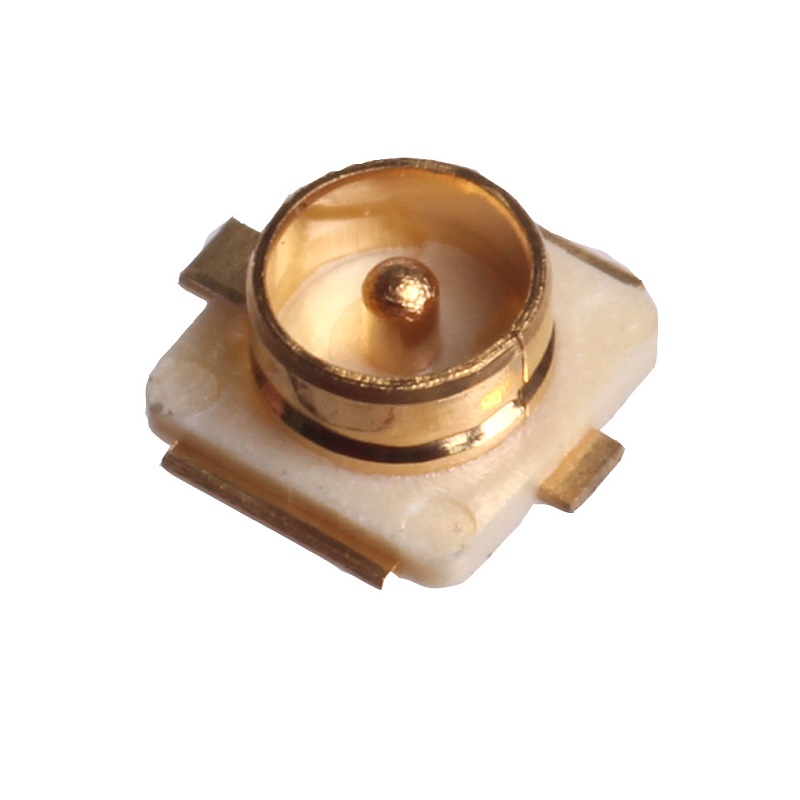

The UFL/IPEX/MHF1 RF Connector is a high-performance, miniature coaxial connector designed for space-constrained PCB applications. Commonly referred to as an IPEX or MHF1 connector, this surface-mount (SMT) component provides a reliable, low-profile interface for connecting antennas to wireless modules. It is the industry-standard choice for compact hardware including Wi-Fi modules, GSM modems, GPS receivers, and other RF communication devices.
Engineered for efficiency, this connector features a robust brass body with gold-plated contacts and a high-grade PTFE insulator, ensuring excellent signal transmission with minimal loss. With an operational frequency range up to 6.0 GHz and a low VSWR (<1.4), it delivers professional-grade stability for high-frequency wireless signal routing in miniature electronics.
Key Features
- Design: UFL / IPEX / MHF1 SMT PCB Mount Connector
- Dimensions: Extremely compact (2.5 x 2.5 x 1.9 mm)
- Performance: Optimized for broadband RF operation up to 6.0 GHz
- Build Quality: Gold-plated brass body and phosphor bronze center contact for superior connectivity
- Reliability: Professional-grade construction with high insulation resistance (>500 MΩ)
- Efficiency: SMT mounting design facilitates automated pick-and-place assembly
Technical Benefits
- Ultra-miniature form factor is perfect for smartphones, IoT devices, and compact wearables
- Gold-plated interface minimizes contact resistance and provides excellent corrosion protection
- Low VSWR performance ensures maximum power transfer and signal clarity
- Precision SMT design reduces assembly time and improves repeatability on high-density PCBs
- Compatible with standard UFL/MHF1 antenna cables used across global wireless modules
Applications
- Wireless Connectivity: Wi-Fi, WLAN, and Bluetooth modules
- Mobile Communication: GSM, LTE, and cellular telemetry hardware
- Navigation: GPS and GNSS antenna connections
- IoT & M2M: Compact wireless sensor nodes and industrial data transmitters
Package Includes
- 1 x UFL / IPEX / MHF1 RF Connector
Specifications
| Parameter | Specification |
|---|---|
| Connector Type | UFL / IPEX / MHF1 (SMT) |
| Frequency Range | 0 – 6.0 GHz |
| Working Voltage | 200 V |
| VSWR | < 1.4 |
| Insulation Resistance | > 500 MΩ |
| Dimensions | 2.5 x 2.5 x 1.9 mm |
| Body Material | Gold-Plated Brass |
