Description

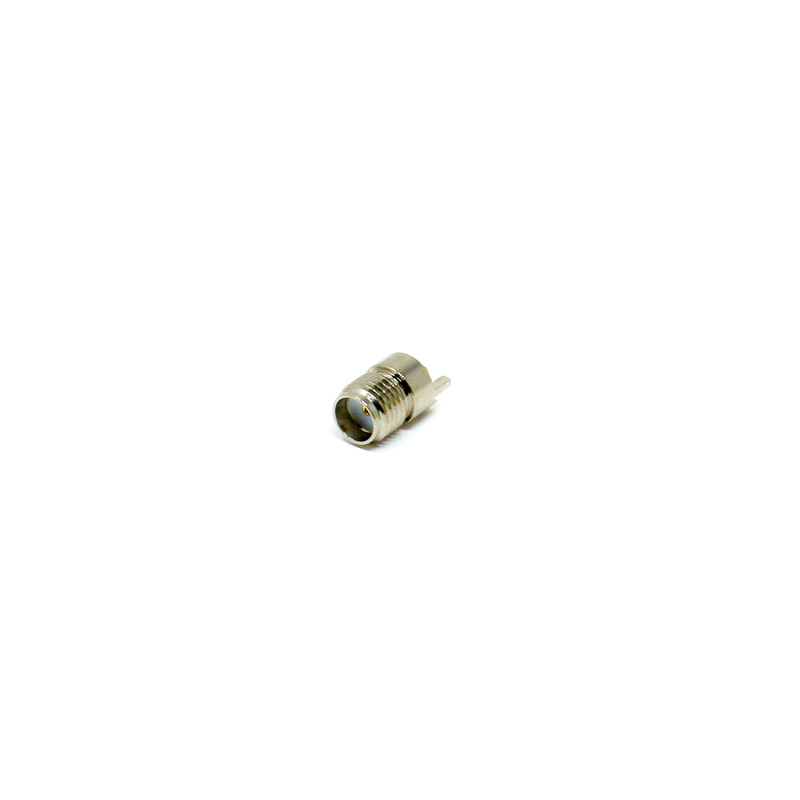

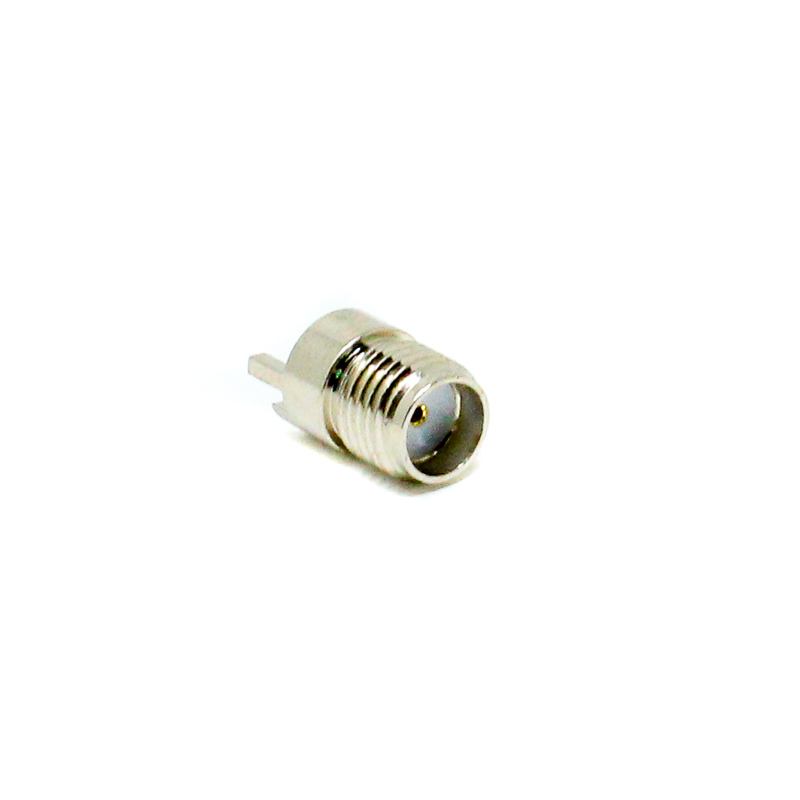

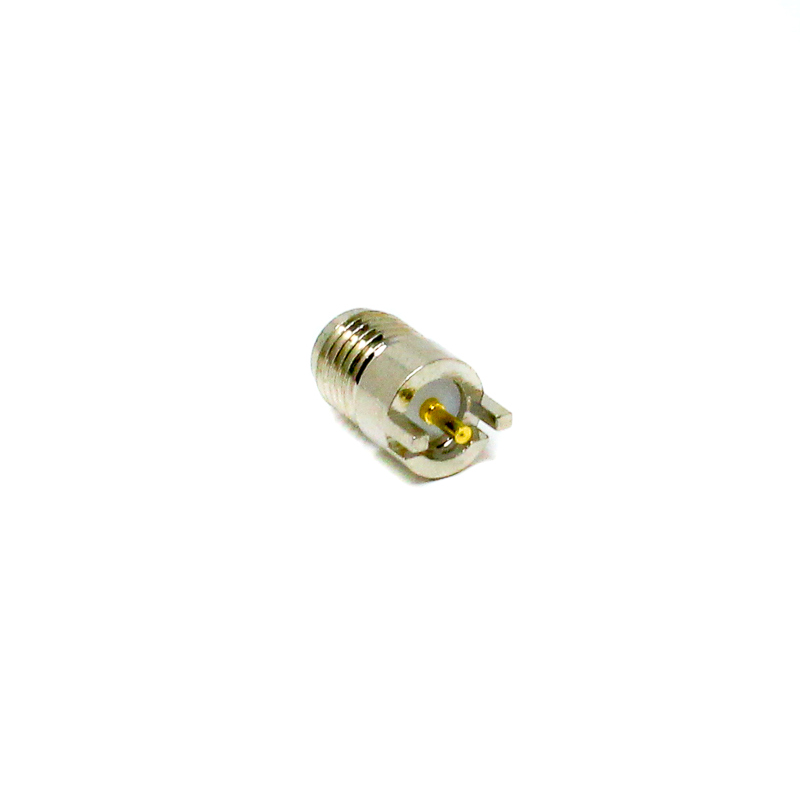

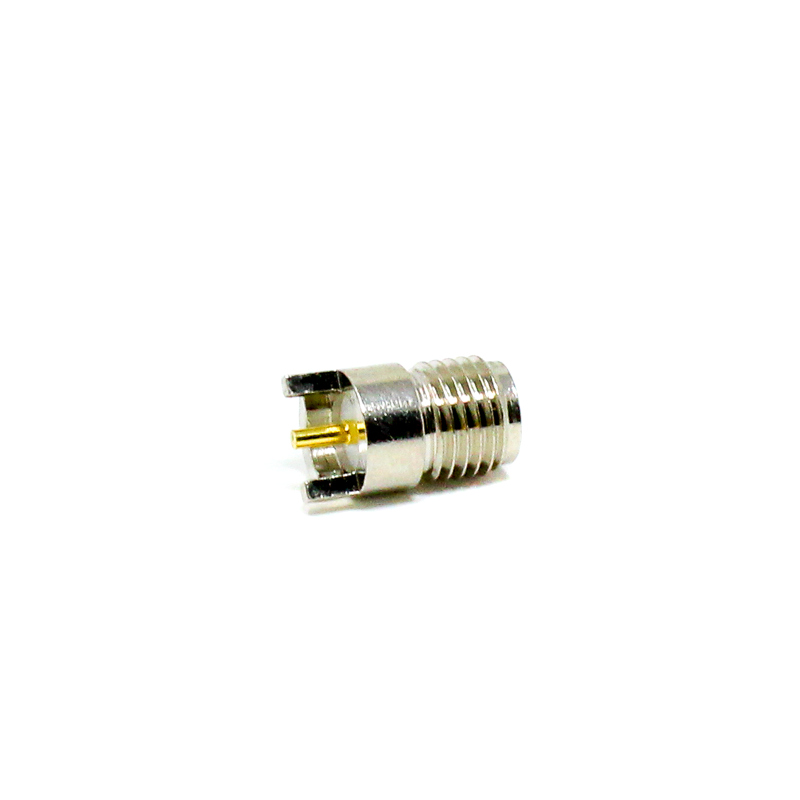

The SMA Female Bulkhead Edge-Mount Connector is a professional-grade RF jack specifically engineered for plate-edge PCB mounting. This dual-purpose design allows for seamless integration onto the edge of a circuit board while providing a bulkhead interface for secure chassis or panel connection. Featuring a straight 180° orientation and a robust 1/4-36 threaded coupling mechanism, it ensures minimal signal loss and high security, making it ideal for high-density electronic enclosures and compact wireless infrastructure.
Engineered for high-frequency applications, this connector delivers excellent broadband performance up to 18 GHz with low reflection. Its nickel-plated construction provides superior resistance to environmental corrosion, while the high-precision internal design meets stringent MIL-STD-202 standards for vibration and mechanical durability. Whether integrated into aerospace instrumentation, cellular mobile systems, or industrial M2M communication networks, this SMA connector offers the professional-grade stability and longevity required for mission-critical RF hardware.
Key Features
- Design: SMA Female (Jack/Socket), Straight (180°) orientation
- Mounting: Plate-Edge PCB Mount with Bulkhead panel integration
- Coupling: Threaded 1/4-36 interface for high-security, vibration-resistant connections
- Performance: Broadband operation up to 18 GHz with low signal reflection
- Impedance: 50Ω standardized for professional RF and wireless systems
- Reliability: Engineered for ≥500 mating cycles and MIL-STD-202 compliance
- Build Quality: Nickel-plated finish for enhanced durability and environmental protection
Technical Benefits
- Edge-mount design facilitates efficient signal transition from PCB traces to external enclosures
- Bulkhead mounting provides a secure, permanent connection point through a panel/chassis
- Threaded coupling ensures signal stability in high-vibration aerospace and industrial environments
- High-grade materials maintain consistent electrical contact and low insertion loss
- Wide operating temperature range (-55°C to +155°C) suitable for diverse environmental conditions
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Systems
- Aerospace & Defense: Handheld Field Devices and Radar Instrumentation
- Industrial: M2M Communications, Process Controls, and Vehicle Tracking Systems
- Data/Communications: Wi-Fi, WiMAX, and high-frequency broadband hardware
- Medical: Precision diagnostic and telemetry instrumentation
Package Includes
- 1 x SMA Female Bulkhead Edge-Mount PCB Connector
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Female (Jack) |
| Mounting Type | PCB / Panel Mount (Bulkhead / Edge Mount) |
| Termination Style | Solder Type |
| Impedance | 50 Ω |
| Operating Temperature | -55°C to +155°C |
