Description

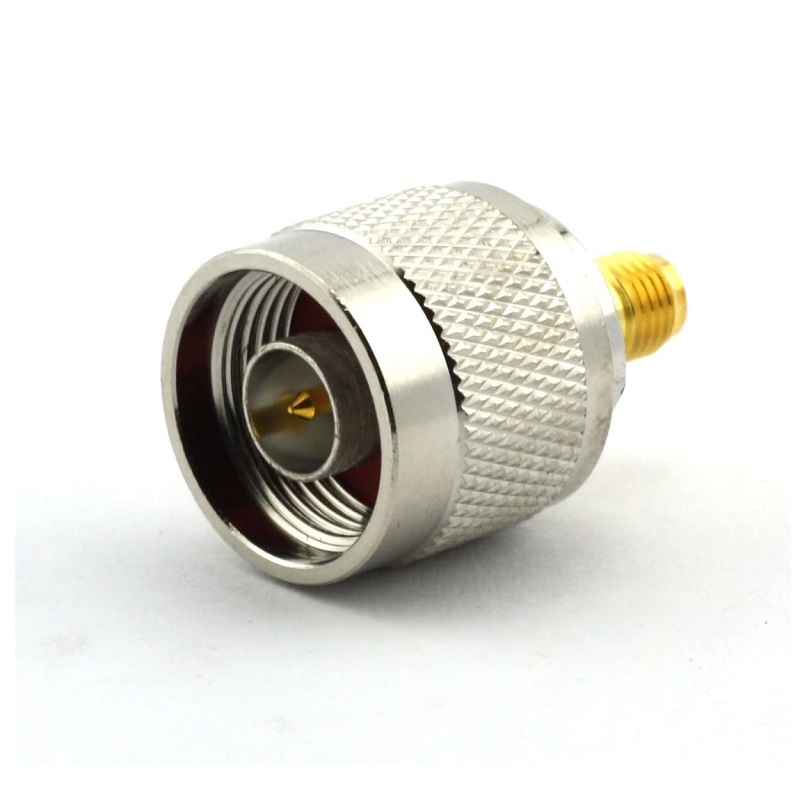

The N Male to SMA Female Coaxial Adapter is a high-precision RF component designed to transition between SMA and N-type series interfaces. This 50Ω adapter is manufactured to rigorous industry standards, offering a broad operational frequency range of up to 11 GHz with excellent signal integrity. It is an ideal solution for interconnecting professional RF cables, testing equipment, and wireless communication hardware where signal purity and mechanical reliability are paramount.
Built for professional use, the adapter features a durable brass body with high-quality nickel/gold plating and a resilient PTFE insulator, ensuring long-term resistance to corrosion and wear. With an exceptionally low VSWR (<1.15:1) and insertion loss (<0.24dB at 3GHz), it provides a stable, low-reflection path for your high-frequency signals. Engineered to exceed >500 mating cycles, this adapter offers the professional stability and longevity required for mission-critical RF assemblies.
Key Features
- Interface: N-Type Male to SMA Female (Between-Series Adapter)
- Performance: Excellent VSWR (<1.15:1) and low insertion loss
- Frequency Range: High-bandwidth operation from DC up to 11 GHz
- Build Quality: Precision-manufactured brass body with gold-plated contacts
- Reliability: Engineered for >500 mating cycles and wide temperature resilience
- Impedance: 50Ω standardized for professional RF and communication infrastructure
Technical Benefits
- Precision geometry ensures minimal signal reflection and power loss across the entire frequency range
- High-grade PTFE insulation and gold-plated contact points maintain low electrical resistance
- Robust design provides a secure mechanical connection between different series RF components
- Wide operating temperature range (-40°C to +85°C) suitable for diverse industrial and field applications
- Compact and lightweight design ideal for integration into crowded equipment racks or field test kits
Applications
- RF Testing: Precision signal analysis and component interconnects
- Telecommunications: Wireless Base Stations and RF signal routing
- Broadband: High-frequency communication signal distribution
- Industrial: RF accessory integration and M2M communication systems
Package Includes
- 1 x N(M) to SMA(F) Coaxial Adapter
Specifications
| Parameter | Specification |
|---|---|
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC – 11 GHz |
| VSWR | < 1.15:1 |
| Insertion Loss | < 0.24 dB (at 3 GHz) |
| Operating Temperature | -40°C to +85°C |
| Durability | > 500 cycles |
| Body Material | Brass (Nickel/Gold Plated) |
