Description
The BNC Female Straight Bulkhead Connector is a versatile, professional-grade RF interface designed for secure chassis or panel integration. Featuring the industry-standard bayonet-style coupling, this connector ensures rapid, vibration-resistant connectivity, making it the ideal choice for broadcast, CCTV, and telecommunications infrastructure. Its straight 180° orientation and bulkhead mounting design provide a clean, permanent connection point that is perfectly suited for high-density patch panels, video switchers, and industrial instrumentation.
Built with robust materials, including high-grade Teflon insulation for superior thermal stability, this BNC jack provides reliable performance up to 3 GHz. It is engineered to maintain consistent 50Ω impedance, ensuring minimal signal loss in critical video and data paths. With ≥500 mating cycles and compliance with strict MIL-STD-202 standards for vibration and corrosion, this connector delivers the professional stability required for mission-critical electronic assemblies.
Key Features
- Design: BNC Female (Jack), Straight (180°) orientation
- Mounting: Bulkhead panel mount with PCB solder termination
- Coupling: Bayonet-style quick-connect/disconnect locking mechanism
- Performance: Optimized 50Ω impedance with reliable broadband operation up to 3 GHz
- Build Quality: High-grade materials offering excellent thermal and environmental resistance
- Reliability: Engineered for ≥500 mating cycles and MIL-STD-202 compliance
- Compact Form: Space-saving design ideal for professional-grade enclosures
Technical Benefits
- Bulkhead mounting provides a secure, weatherproof connection point for equipment enclosures
- Bayonet locking mechanism ensures reliable connectivity in high-vibration broadcast environments
- Superior electrical characteristics ensure low signal reflection and high signal integrity
- Professional, OEM-standard construction suitable for industrial and broadcast infrastructure
- Efficient solder-type termination for a permanent, low-resistance electrical bond
Applications
- Broadcasting & Video: HDTV, Recorders, Video Switchers, and Broadcast Systems
- Surveillance: Professional CCTV and Security Infrastructure
- Telecommunications: Wireless Base Stations and Satcom Hardware
- Industrial & Medical: Test Instrumentation and Medical Monitoring Equipment
- General: Antenna connections and High-Performance RF Cable Assemblies
Package Includes
- 1 x BNC Female Straight Bulkhead PCB/Panel Mount Connector

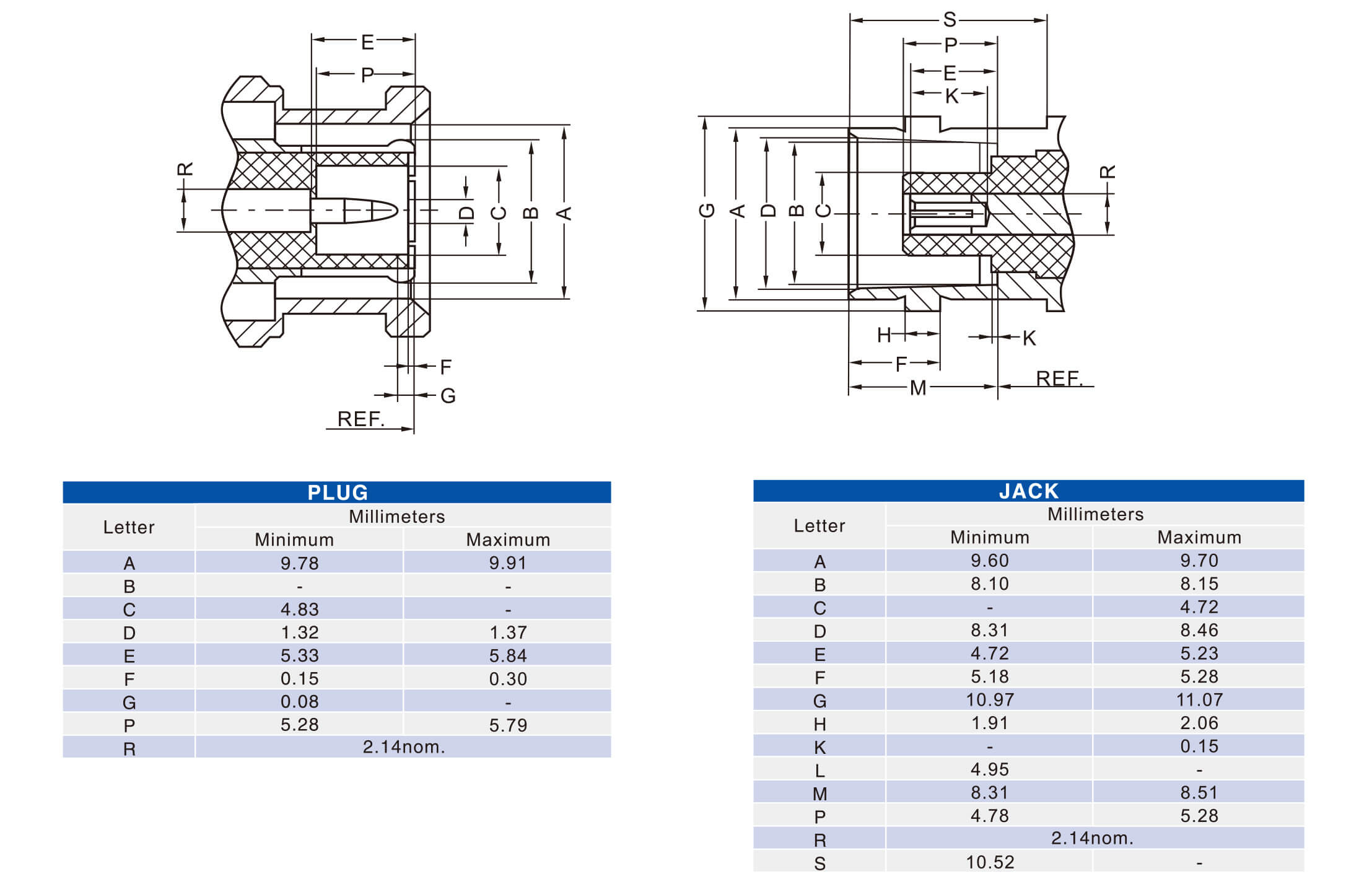

Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Female (Jack) |
| Mounting Type | PCB / Panel Mount (Bulkhead) |
| Termination Style | Solder Type |
| Impedance | 50 Ω |
| Frequency Range | 0 – 3 GHz |
| Operating Temperature | -55°C to +155°C (Teflon) |
