Description

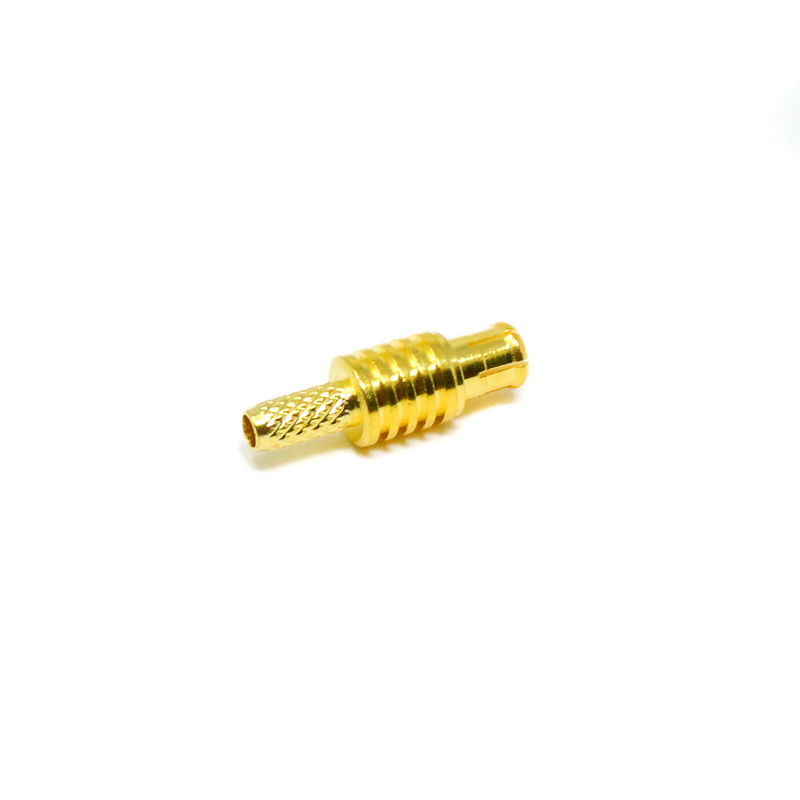

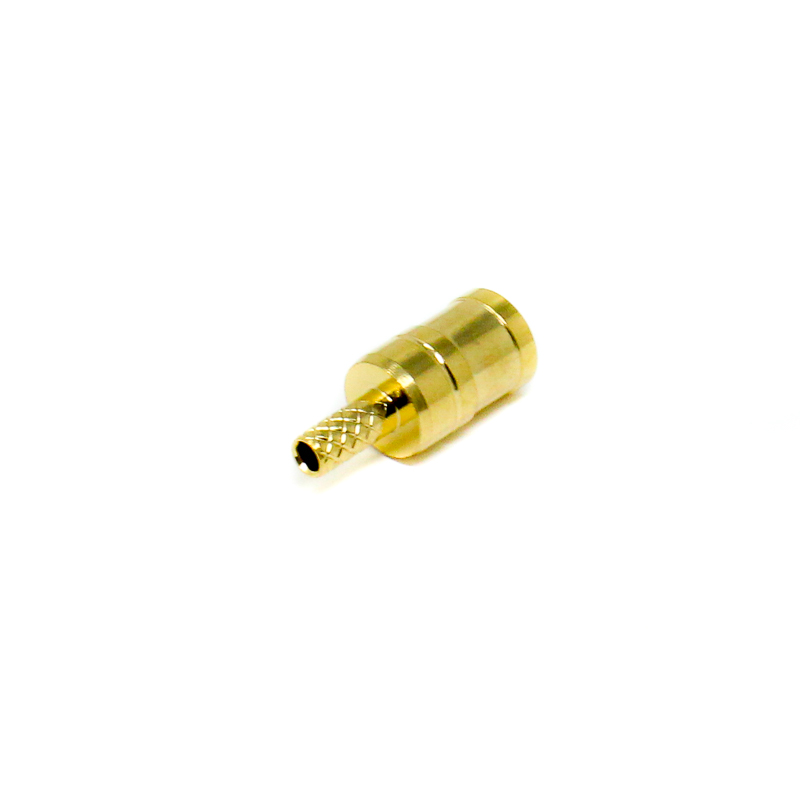

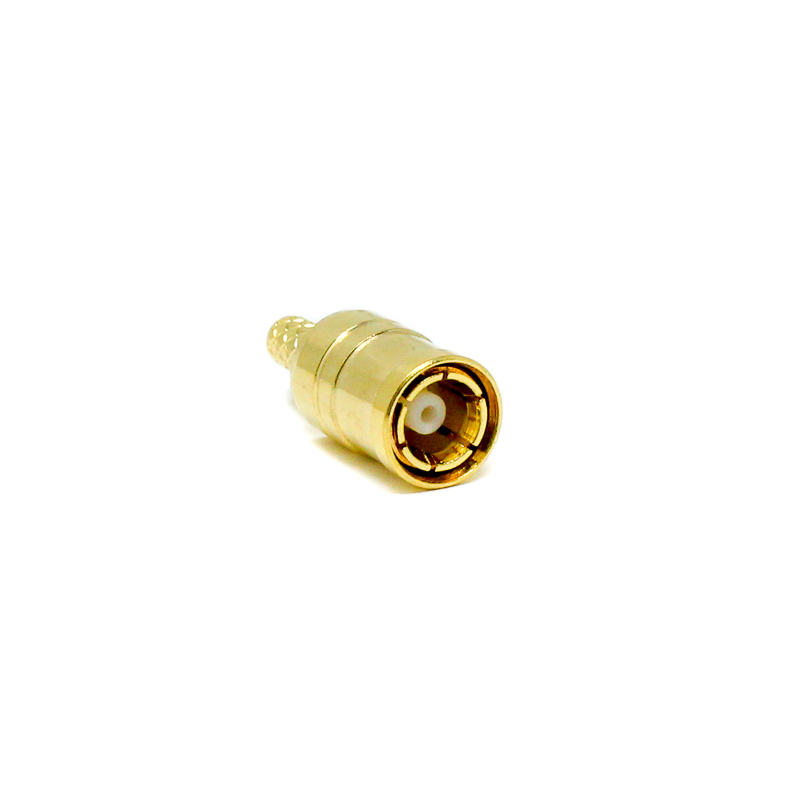

The SMB Male Straight Crimp Connector is a high-performance RF plug designed for reliable coaxial cable termination. Featuring a convenient snap-on coupling mechanism, this connector allows for rapid, tool-free installation and disconnection, making it an ideal solution for wireless base stations, GPS modules, and high-density industrial communication systems. Its straight 180° orientation ensures a clean, efficient signal path for frequencies up to the high-performance range.
Constructed for professional use, this SMB plug provides excellent broadband performance and minimal signal reflection. By utilizing precision die-casting for non-critical components, this connector offers OEM-grade quality and mechanical durability at an exceptional value. Whether used in aerospace test stands, medical telemetry, or M2M communication networks, this connector is built to withstand extreme thermal conditions (-65°C to +155°C) and meets rigorous MIL-STD-202 vibration and corrosion standards, ensuring long-term reliability in demanding field applications.
Key Features
- Design: SMB Male (Plug), Straight (180°) orientation
- Mounting: Cable mount with professional crimp-style termination
- Coupling: Snap-on design for fast, efficient installation and maintenance
- Performance: Broadband operation with low signal reflection
- Impedance: 50Ω optimized for professional RF and communication systems
- Build Quality: High-quality construction with precision plating for environmental protection
- Reliability: Engineered for ≥500 mating cycles and MIL-STD-202 compliance
Technical Benefits
- Crimp-style termination ensures a robust, permanent electrical bond for high-integrity RF paths
- Snap-on interface eliminates the need for threaded coupling, significantly reducing assembly time
- Precision engineering minimizes signal loss in demanding high-frequency RF applications
- Wide operating temperature range ensures stable performance in diverse industrial and field settings
- Cost-optimized design without compromising electrical integrity or mechanical durability
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Systems
- Data/Communications: Wi-Fi Routers, Radio Boards, and Network Hardware
- Industrial: M2M (Machine-to-Machine) Communications and Process Control
- Aerospace & Defense: RF Test Stands and Signal Analysis equipment
- Medical: Telemetry equipment and wireless monitoring sensors
- Commercial: GPS Modules and Vehicle Tracking Systems
Package Includes

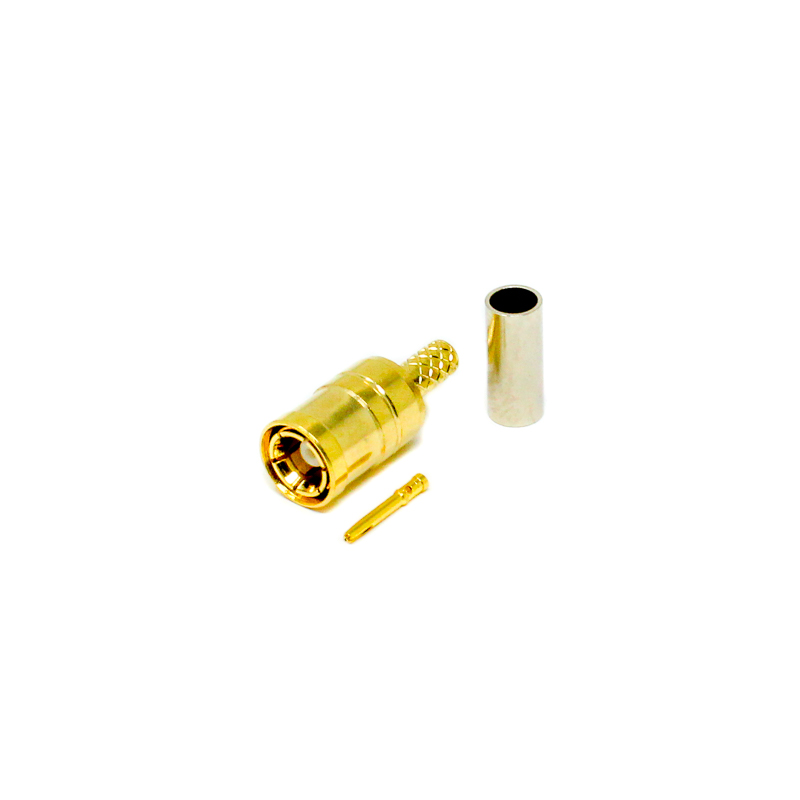

- 1 x SMB Male Straight Crimp Cable Connector
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Crimp Type |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +155°C |
