Description
The SMB Male Straight Connector is a professional-grade RF plug designed for high-performance cable-mount applications. Part of the SubMiniature version B (SMB) series, this connector provides a reliable 50-ohm interface suitable for dense electronic systems, telecommunications, and industrial instrumentation. Its straight 180° orientation ensures a clean, streamlined signal path, making it an excellent choice for compact radio frequency assemblies.
This connector utilizes a convenient snap-on coupling mechanism, which facilitates rapid, tool-free connection and disconnection—a key feature for modular equipment and high-density environments. Constructed with a durable nickel-plated copper body, the connector is engineered for environmental resilience and corrosion resistance. Providing stable broadband performance up to 4 GHz with low signal reflection, this SMB plug is a dependable, cost-effective solution for mission-critical RF infrastructure.
Features
- Design: SMB Male Plug, Straight (180°) orientation
- Mounting: Cable mount with professional crimp-style shield termination
- Coupling: Snap-on interface for fast, tool-free installation
- Performance: Broadband operation (0–4 GHz) with low reflection
- Build Quality: Nickel-plated copper body for enhanced environmental protection
- Durability: Engineered for ≥500 mating cycles
- Reliability: Compliant with MIL-STD-202 standards for vibration and corrosion
Benefits
- Snap-on design significantly reduces assembly time and simplifies field maintenance
- Robust nickel plating ensures consistent electrical performance and long-term durability
- Compact form factor optimizes space in RF cable assemblies
- Consistent signal quality across a wide thermal range (-65°C to +155°C)
- High-quality, cost-effective solution for professional OEM applications
Applications
- Wireless Base Stations and Cellular Mobile Systems
- GPS Tracking and Commercial Vehicle Telemetry
- Medical Monitoring and Telemetry Equipment
- WIFI Routers and Radio Frequency Boards
- Industrial M2M Communications and Process Controls
- Aerospace and Defense Test Stands
Package Includes
- 1 x SMB Connector Crimp Type Male Straight for Cable

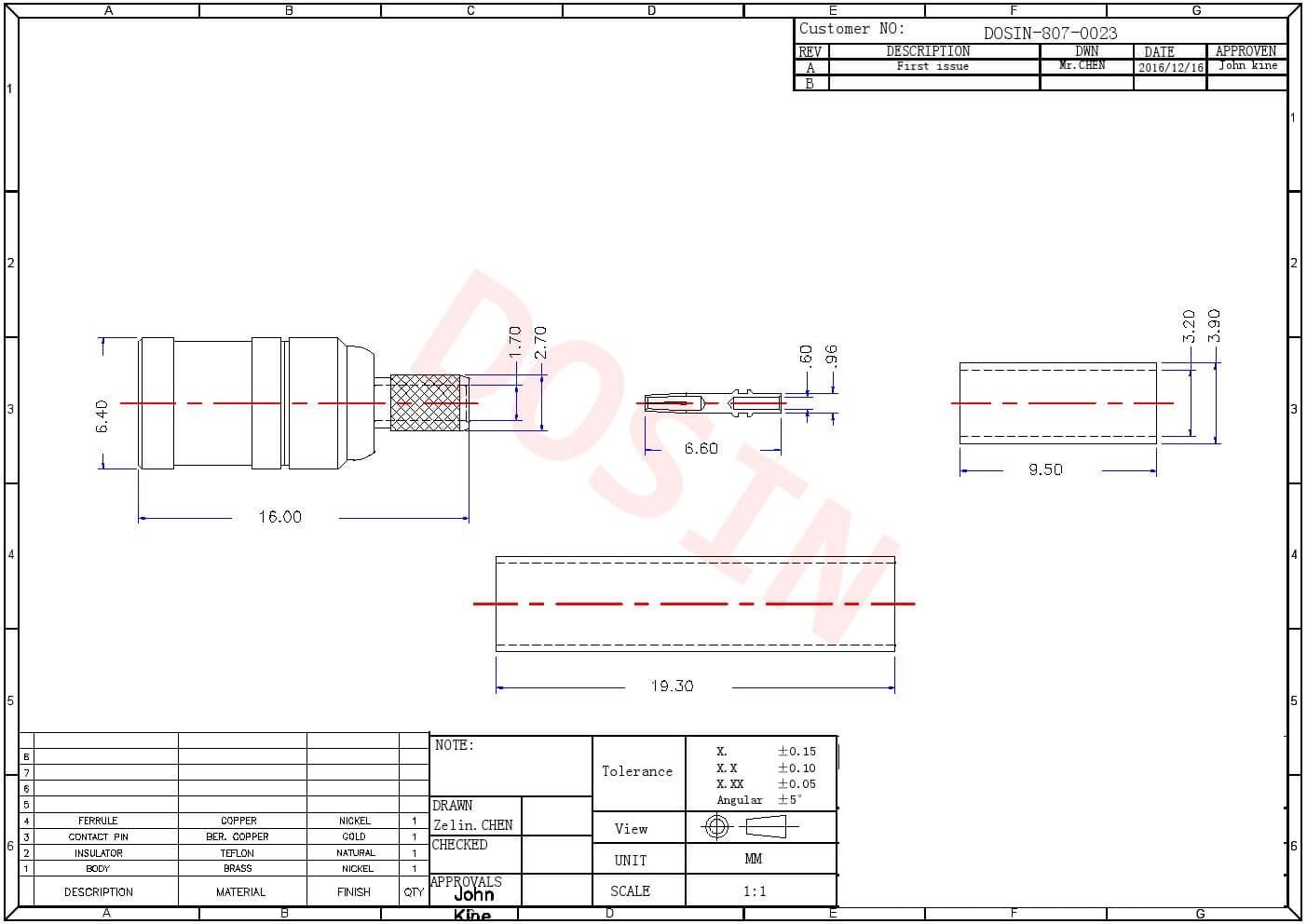

Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Crimp (Shield) / Solder (Center Contact) |
| Body Material | Copper |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +155°C |
