Description

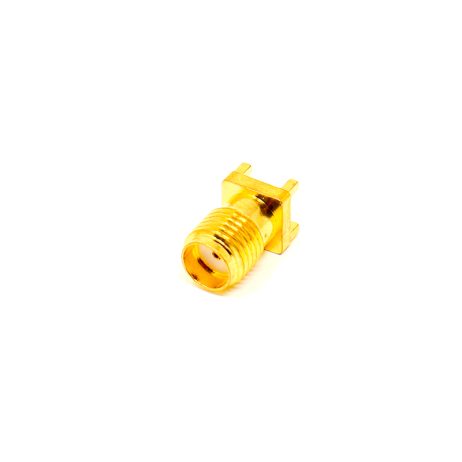

The SMA Female Vertical PCB Connector is a high-performance RF jack engineered for secure, through-hole board mounting. Designed to provide a stable, vertical (180°) signal interface, this connector is the ideal choice for high-density circuit boards, wireless modules, and communication hardware. Featuring a robust 1/4-36 threaded coupling mechanism, it ensures a secure, low-loss connection capable of maintaining excellent signal integrity at frequencies up to 18 GHz.
Constructed with a premium gold-plated copper body, this SMA connector offers superior electrical conductivity and exceptional resistance to environmental degradation. Whether integrated into aerospace instrumentation, medical devices, or cellular communication infrastructure, this component delivers the professional-grade stability and reliability required for mission-critical RF circuits. Its compact, precision design makes it a versatile solution for diverse industrial, data, and commercial applications.
Key Features
- Design: SMA Female (Jack/Socket), Vertical (Straight/180°) orientation
- Mounting: Through-Hole PCB Mount for a permanent, high-integrity bond
- Performance: Excellent broadband operation up to 18 GHz with minimal signal reflection
- Coupling: Threaded 1/4-36 interface for high-security, vibration-resistant connectivity
- Impedance: 50Ω standardized for professional RF and wireless systems
- Build Quality: Gold-plated copper body for maximum conductivity and corrosion resistance
- Reliability: Engineered for ≥500 mating cycles and MIL-STD-202 compliance
Technical Benefits
- Vertical through-hole mounting simplifies assembly and optimizes footprint on PCB layouts
- Threaded coupling mechanism ensures consistent pressure and stable electrical contact
- High-grade materials maintain low insertion loss and high signal purity in sensitive RF paths
- Compliant with military-grade standards (MIL-STD-202) for vibration and environmental robustness
- Versatile design supports a wide range of industrial, data, and defense-grade applications
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Systems
- Aerospace & Defense: Handheld Field Devices and Precision Instrumentation
- Industrial: Active/Passive RF Components, M2M Communications, and Vehicle Tracking
- Data/Communications: Wi-Fi and WiMAX infrastructure
- Medical: Precision diagnostic and telemetry hardware
- Commercial: Automotive Bluetooth and GPS modules
Package Includes
- 1 x SMA Female Vertical Through-Hole PCB Connector
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Vertical (Straight / 180°) |
| Gender | Female (Jack) |
| Mounting Type | PCB Mount (Through-Hole) |
| Termination Style | Solder Type |
| Impedance | 50 Ω |
| Frequency Range | 0 – 18 GHz |
| Operating Temperature | -55°C to +155°C |
