Description

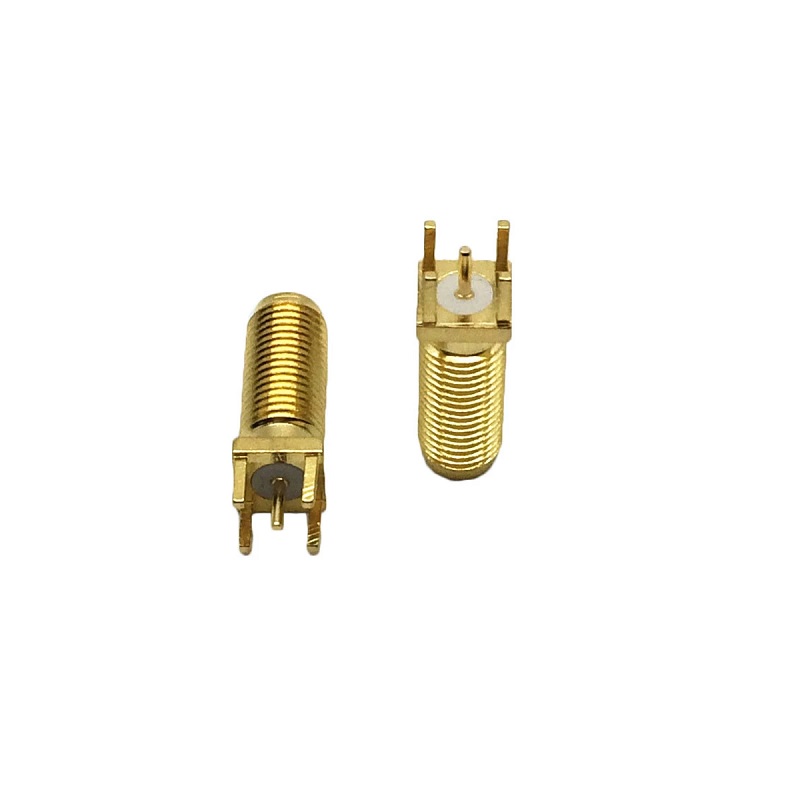

The SMA Female Straight Long-Body PCB Connector is a professional-grade RF jack engineered for secure, through-hole board mounting. Featuring an extended-length (long) body, this connector provides enhanced clearance for specialized enclosure designs or thicker panel integrations. It is designed to deliver a stable, vertical (180°) signal interface, making it an ideal choice for high-frequency wireless modules, instrumentation hardware, and communication systems.
Constructed with a premium gold-plated brass body, this SMA connector offers superior electrical conductivity and exceptional resistance to environmental degradation. Engineered for mission-critical reliability, it supports broadband operation up to 18 GHz with minimal signal reflection. Whether integrated into aerospace instrumentation, medical diagnostic equipment, or industrial M2M communication systems, this component provides the professional-grade stability and longevity required for mission-critical RF circuits.
Key Features
- Design: SMA Female (Jack), Straight (180°) orientation, Long-Body profile
- Mounting: Through-Hole PCB Mount for a permanent, high-integrity bond
- Performance: Excellent broadband operation up to 18 GHz
- Impedance: 50Ω standardized for professional RF and wireless systems
- Build Quality: Gold-plated brass body for maximum conductivity and corrosion resistance
- Durability: Wide operating temperature range (-65°C to +165°C)
Technical Benefits
- Extended body design facilitates flexible mounting options in thick-walled enclosures or specialized PCB assemblies
- Through-hole mounting ensures a robust mechanical connection capable of withstanding physical stress
- Gold plating minimizes contact resistance and maximizes long-term reliability
- High-grade materials maintain low insertion loss and high signal purity in critical RF paths
- Broad temperature tolerance ensures stable performance in extreme operational environments
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Systems
- Aerospace & Defense: Handheld Field Devices and Precision Instrumentation
- Industrial: Active/Passive RF Components, M2M Communications, and Vehicle Tracking
- Data/Communications: Wi-Fi and WiMAX infrastructure
- Medical: Precision diagnostic and telemetry hardware
- Commercial: Automotive Bluetooth and GPS modules
Package Includes
- 1 x SMA Female Long-Body Straight Through-Hole PCB Connector
Specifications
| Parameter | Specification |
|---|---|
| Product Type | SMA Female |
| Mounting Type | PCB Mount (Through-Hole) |
| Orientation | Straight (180°) |
| Impedance | 50 Ω |
| Body Material | Gold-Plated Brass |
| Frequency Range | Up to 18 GHz |
| Operating Temperature | -65°C to +165°C |
