Description

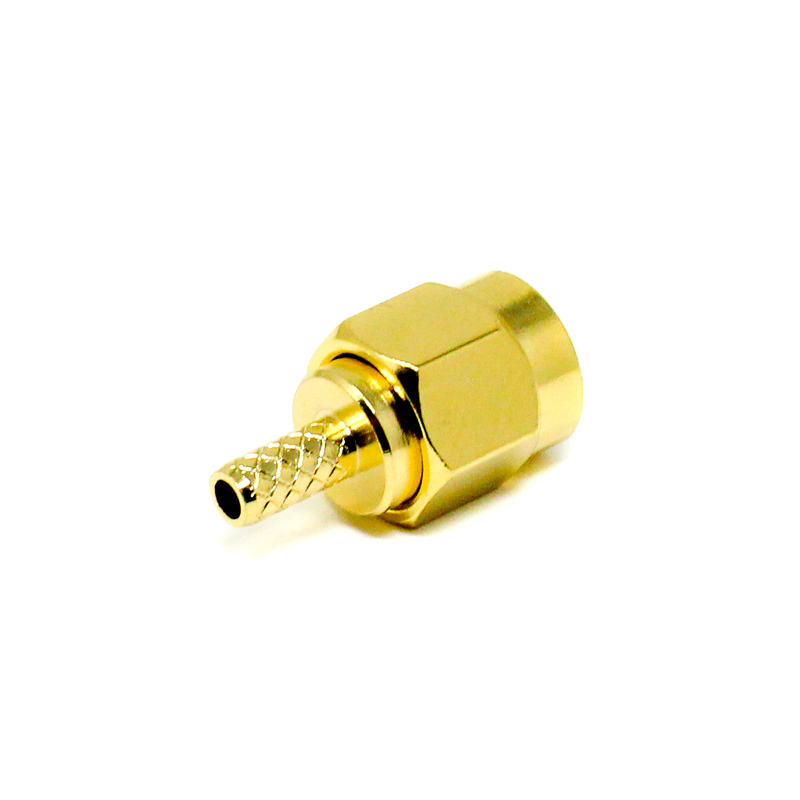

The SMA Male Straight Crimp Connector is a high-performance RF plug engineered for secure termination to coaxial cables. Featuring a durable gold-plated copper body and a reliable 1/4-36 threaded coupling mechanism, this connector provides superior signal integrity, low insertion loss, and high mechanical security. It is optimized for applications up to 6 GHz (with support for up to 18 GHz), making it an ideal choice for GPS modules, network connectivity, and mission-critical communication systems.
Engineered to meet rigorous industry standards, this SMA male connector delivers excellent broadband performance and minimal signal reflection. Whether you are developing handheld field devices, medical instrumentation, or industrial M2M communication networks, this connector offers the professional-grade stability and longevity required for high-frequency RF cable assemblies. With its precision design and gold-plated finish, it ensures consistent electrical contact and robust protection against environmental degradation.
Key Features
- Design: SMA Male (Plug), Straight (180°) orientation
- Mounting: Cable mount for coaxial termination
- Performance: Broadband operation up to 6 GHz (supporting up to 18 GHz)
- Coupling: Threaded 1/4-36 interface for high-security, vibration-resistant connectivity
- Impedance: 50Ω standardized for professional RF and wireless systems
- Build Quality: Gold-plated copper body for superior conductivity and durability
- Reliability: Engineered for mission-critical signal stability in diverse professional environments
Technical Benefits
- Precision crimp-style design ensures a robust, low-loss electrical bond for critical RF paths
- Threaded coupling mechanism provides reliable signal integrity in high-vibration aerospace and automotive environments
- High dielectric withstanding voltage supports a wide variety of professional coaxial cable types (RG142, RG405, RG316, etc.)
- Compact form factor facilitates high-density cable management in professional equipment
- Gold plating minimizes contact resistance and maximizes long-term corrosion resistance
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Systems
- Aerospace & Defense: Handheld Field Devices and Precision Instrumentation
- Industrial: M2M Communications, Process Controls, and Vehicle Tracking Systems
- Data/Communications: Wi-Fi, WiMAX, and high-frequency broadband hardware
- Medical: Precision diagnostic and telemetry instrumentation
- Commercial: Automotive Bluetooth and GPS modules
Package Includes

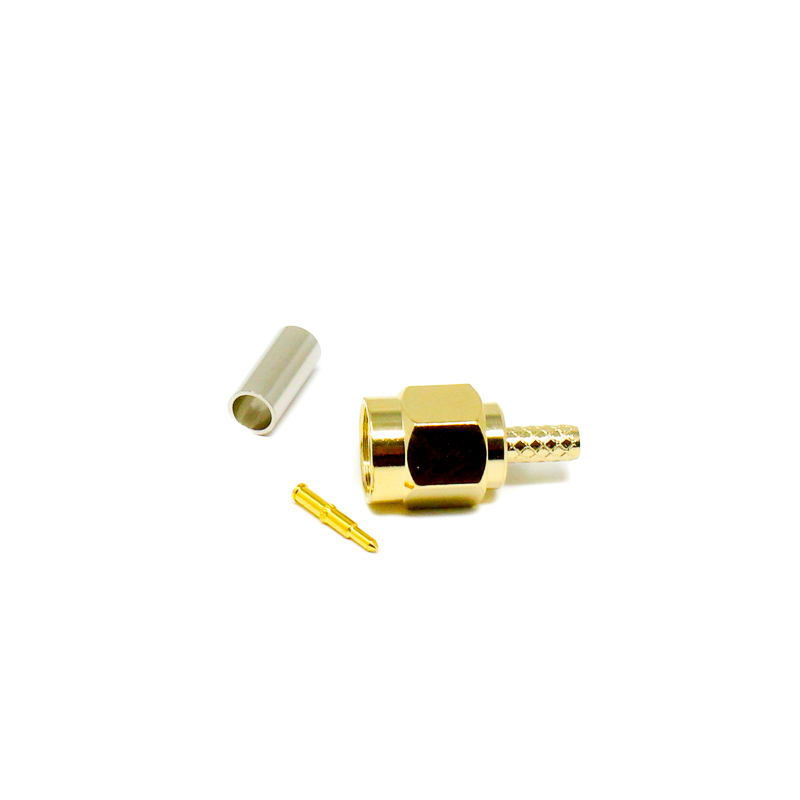

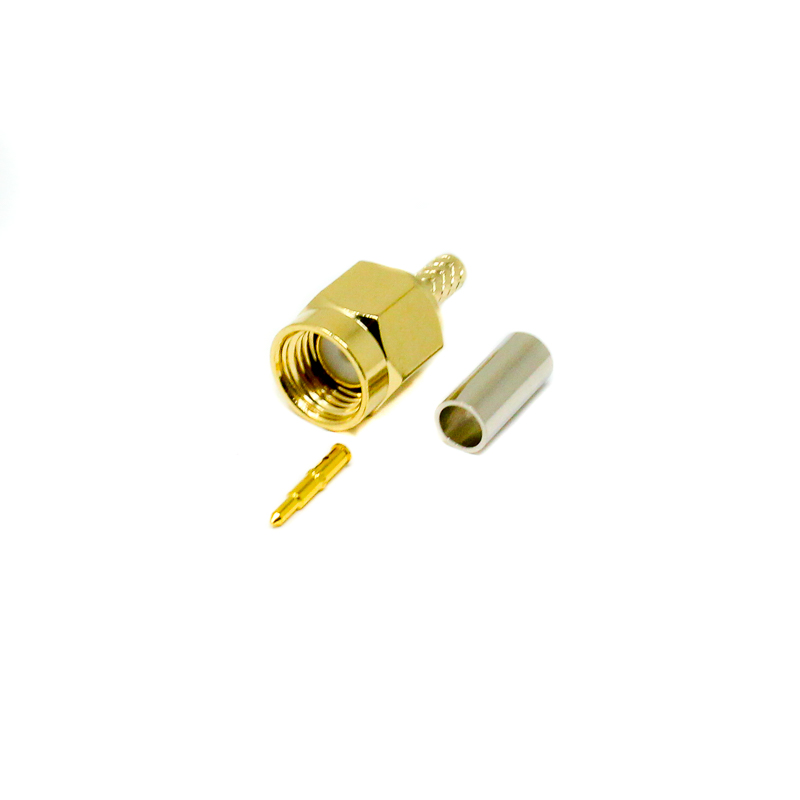

- 1 x Coaxial SMA Male Straight Cable Connector

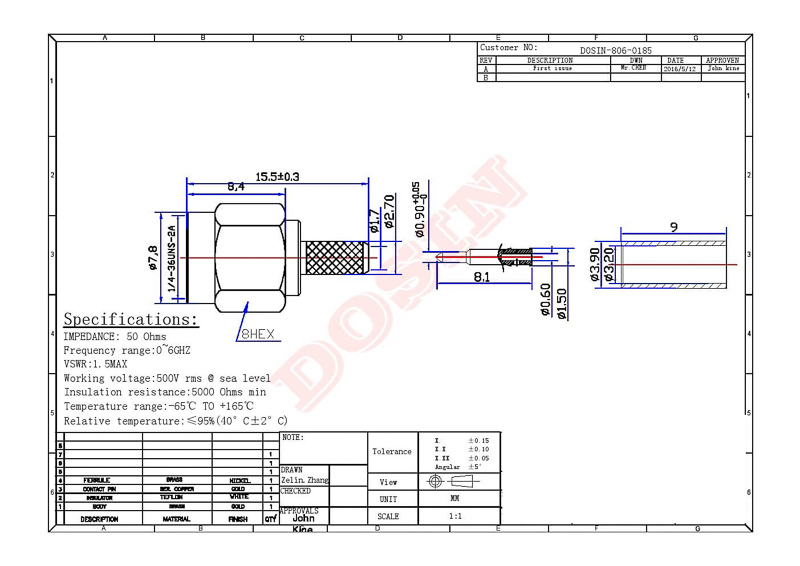

Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Solder Type (Crimp-compatible) |
| Impedance | 50 Ω |
| Frequency Range | 0 – 6 GHz |
