Description

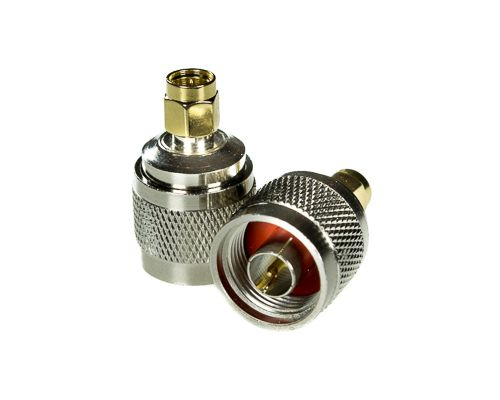

The N Male to SMA Male Coaxial Adapter is a high-precision RF component engineered to bridge the gap between N-type and SMA-type interfaces with minimal signal degradation. Featuring a Low Passive Intermodulation (Low PIM) design, this adapter is purpose-built for demanding cellular and wireless communication infrastructure. Its optimized geometry provides superior VSWR performance (≤1.08), ensuring excellent signal integrity and minimal reflection across the DC to 3 GHz frequency range.
Constructed for professional durability, this adapter utilizes high-quality brass with a precision nickel/gold plating finish and a resilient PTFE insulator. This combination provides exceptional corrosion resistance and longevity, even in challenging environmental conditions. Whether you are performing site maintenance, testing RF components, or integrating cell-site equipment, this adapter offers the professional stability, compact form factor, and low-loss performance required for mission-critical RF assemblies.
Key Features
- Interface: N-Type Male to SMA Male (Dual-Male Pin Adapter)
- Performance: Low PIM design with excellent VSWR (≤1.08) for stable signal transmission
- Frequency Range: Optimized for DC to 3 GHz operation
- Build Quality: Precision-manufactured brass body with high-durability plating
- Reliability: Engineered for >500 mating cycles and robust environmental resilience
- Impedance: 50Ω standardized for professional telecommunications infrastructure
Technical Benefits
- Low PIM performance significantly reduces interference in high-density communication networks
- Superior VSWR minimizes signal loss, ensuring maximum power transfer in RF paths
- Standardized interfaces allow for quick and secure transition between N and SMA hardware
- High-grade PTFE insulation and gold-plated contacts ensure low contact resistance
- Compact, lightweight design ideal for field-testing and space-constrained equipment racks
Applications
- Telecommunications: Cell-site infrastructure, Wireless Base Stations, and Repeater systems
- RF Testing: Precision signal analysis and component testing
- Broadband: CATV and high-frequency communication signal routing
- Industrial: M2M communication systems and RF accessory integration
Package Includes
- 1 x N Male to SMA Male RF Coaxial Adapter
Specifications
| Parameter | Specification |
|---|---|
| Characteristic Impedance | 50 Ω |
| Frequency Range | DC – 3 GHz |
| VSWR | ≤ 1.08 |
| Operating Temperature | -40°C to +85°C |
| Durability | > 500 cycles |
| Insulator Material | PTFE |
| Body Material | Brass (Nickel/Gold Plated) |
