Description

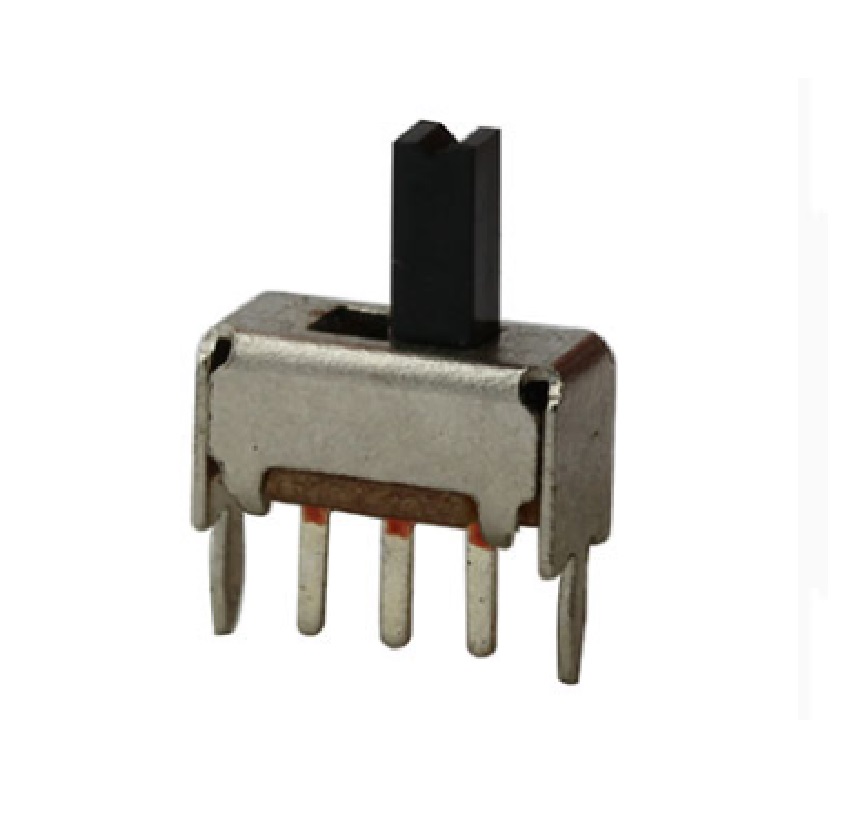

The SS-12D07 1P2T Slide Switch is a high-reliability, miniature electronic component engineered for efficient circuit control on printed circuit boards (PCBs). Featuring a Single Pole, Double Throw (1P2T) configuration and a 3-pin layout, this switch allows for seamless toggling between two distinct electrical paths, making it an ideal solution for space-saving design requirements.
Built from durable, high-quality materials, the SS-12D07 is designed to withstand the demands of modern electronic devices, including consumer audio equipment, computer peripherals, and professional instrumentation. Its vertical design and straightforward sliding mechanism ensure easy installation and long-lasting, consistent performance for your circuit-switching needs.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Miniature SMT-Compatible Design: Ultra-compact 3-pin vertical layout, perfect for high-density PCBs and breadboarding.
- 1P2T Configuration: Versatile two-position switching for routing signals or power between two pathways.
- Robust Electrical Specs: Rated for up to 50V DC and 0.5A, providing ample capacity for low-voltage signal and power control.
- High-Quality Construction: Engineered for durability, ensuring a reliable sliding action throughout its lifespan.
- Ease of Installation: Designed for straightforward mounting, making it an excellent choice for custom DIY electronics and industrial assembly.
Benefits
- Space Optimization: The compact form factor helps save valuable board space in miniaturized designs.
- Versatile Application: Suitable for a wide range of fields, from consumer entertainment electronics to professional testing instrumentation.
- Reliable Connectivity: Provides a firm, consistent tactile sliding action for dependable signal toggling.
Applications
- Consumer Electronics: Ideal for color TVs, audio equipment, and various home gadgets.
- Computer Peripherals: Reliable mode selection and interface routing for networking hardware.
- Industrial Instrumentation: Precision control for diagnostic tools and laboratory testing equipment.
Package Includes
- 1 x Slide Switch SS-12D07 1P2T
Specifications
| Parameter | Specification |
|---|---|
| Model | SS-12D07 |
| Configuration | 1P2T (Single Pole, Double Throw) |
| Pin Count | 3 Pins |
| Rated Voltage | 50V DC |
| Rated Current | 0.5A |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 2 × 2 × 1 cm |
