Description

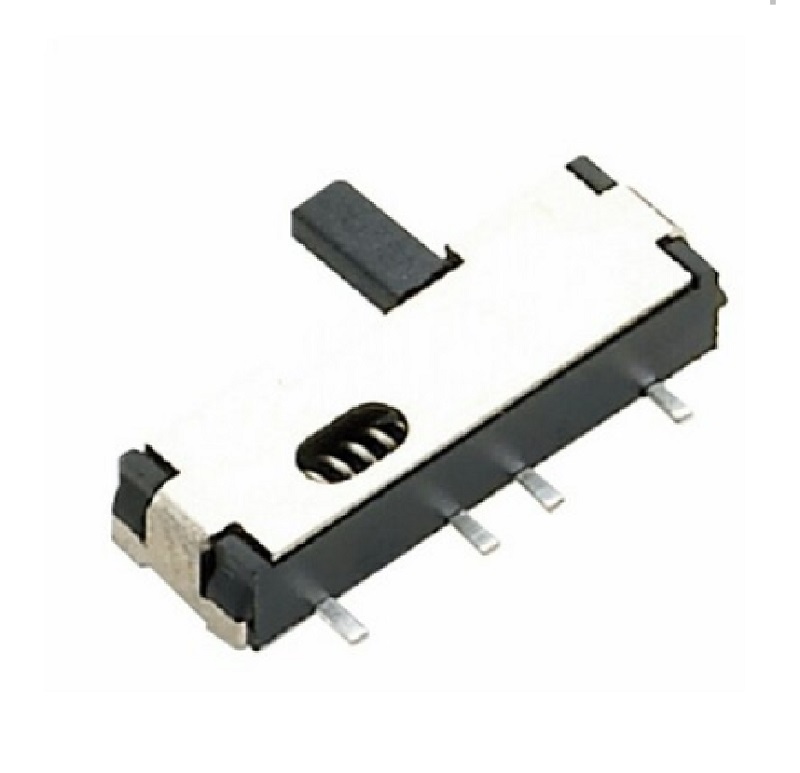

The SHM-13C05 Slide Switch is a high-precision, ultraminiature SMT (Surface Mount Technology) component engineered for modern, space-constrained electronic designs. Featuring a horizontal push direction and a 1.5mm low-profile height, this switch is designed to integrate seamlessly into compact circuit boards without adding bulk.
The SHM-13C05 utilizes a 1P3T (Single Pole, Triple Throw) circuit configuration with a functional On-On-Mom (Momentary) switching pattern. Its design is fully compatible with reflow soldering processes, making it an excellent choice for automated manufacturing assembly. With its durable build and compact form factor, it is a reliable solution for advanced networking equipment, telecommunications, and professional testing instrumentation.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Ultraminiature SMT Design: Compact footprint ideal for high-density PCB layouts.
- Low Profile: Ultra-slim 1.5mm height keeps your device designs streamlined.
- Versatile Configuration: 1P3T circuit with On-On-Mom functionality for flexible signal routing and momentary triggering.
- Manufacturing Ready: Fully reflow solderable and RoHS compliant for environmentally conscious production.
- Horizontal Push: Ergonomic horizontal actuation for easy access in dense device housings.
Benefits
- Space Optimization: Perfect for modern, miniaturized gadgets where internal volume is at a premium.
- Efficiency: Designed for surface-mount assembly, reducing manual labor costs and time in large-scale production.
- Consistent Reliability: Engineered for precision performance in technical and communication-focused applications.
Applications
- Computer Peripherals: Ideal for compact networking products and interface modules.
- Telecommunications: Reliable switching for mobile and stationary communication hardware.
- Test & Measurement: Precision control for professional diagnostic and laboratory equipment.
Package Includes
- 1 x Slide Switch-SHM-13C05
Specifications
| Parameter | Specification |
|---|---|
| Model | SHM-13C05 |
| Mounting Type | SMT (Surface Mount) |
| Circuit Configuration | 1P3T |
| Function | On-On-Mom |
| Travel | 1.5 mm |
| RoHS Compliant | Yes |
| Shipping Weight | 0.004 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
