Description
The SK-09 Slide Switch is a versatile, high-reliability component designed for efficient circuit connection and disconnection in low-voltage applications. By toggling the switch handle, users achieve precise circuit switching through a smooth and flexible sliding block action. Engineered for consistent performance, the SK-09 is a dependable choice for a wide variety of electronic products.
Built to handle the demands of frequent use, this switch features a minimum lifespan of 10,000 cycles and operates reliably across a wide temperature range of -30°C to 85°C. Whether integrated into professional measurement instrumentation, consumer toys, or audio equipment, the SK-09 provides the mechanical stability and electrical reliability required for effective circuit management.

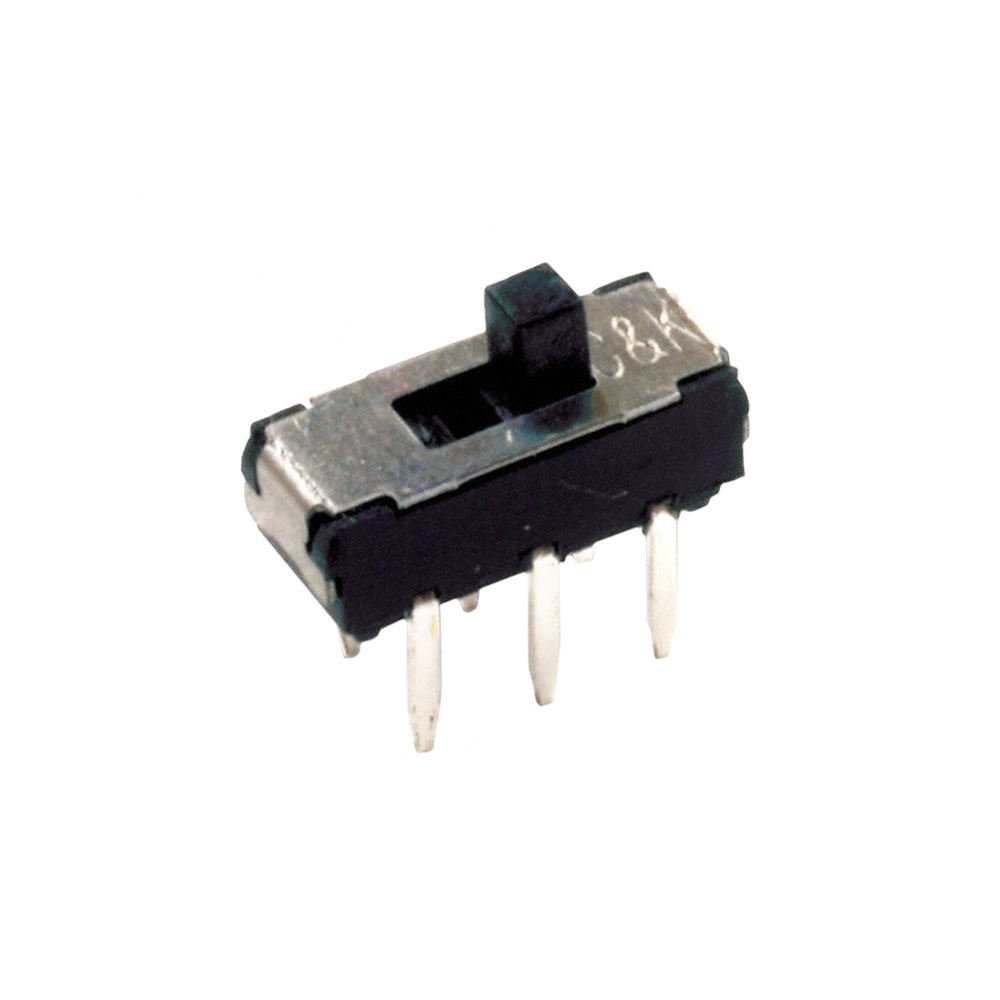

Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Flexible Sliding Action: Smooth, stable sliding block mechanism provides consistent, reliable switching.
- Wide Temperature Tolerance: Rated for operation between -30°C and 85°C, ensuring stability in diverse operating environments.
- High Durability: Minimum 10,000-cycle lifespan for reliable long-term performance.
- Low-Voltage Optimized: Designed specifically for efficient operation in low-voltage circuits.
Benefits
- Application Versatility: Suitable for a wide range of fields, including test instrumentation, communications, and consumer hobby electronics.
- Consistent Performance: Stable mechanical design reduces the risk of intermittent failures or signal degradation.
- Easy Integration: Its standard, compact form factor facilitates straightforward installation in both production lines and custom DIY projects.
Applications
- Instrumentation & Meters: Reliable mode and power switching for precision diagnostic tools.
- Consumer Gadgets: Ideal for electric toys, fax machines, and home electronic devices.
- Audio Equipment: Consistent signal routing for portable and home audio systems.
- Custom Projects: A robust, essential switch for custom circuit development and hobbyist hardware.
Package Includes
- 1 x Slide Switch SK-09
Specifications
| Parameter | Specification |
|---|---|
| Model | SK-09 |
| Rated Voltage | 12V DC |
| Rated Current | 50mA |
| Operating Temperature | -30°C to 85°C |
| Lifespan | ≥ 10,000 Cycles |
| Compressive Strength | 110V AC (50Hz / 1 min) |
| Shipping Weight | 0.003 kg |
| Shipping Dimensions | 5 × 4 × 2 cm |
