Description

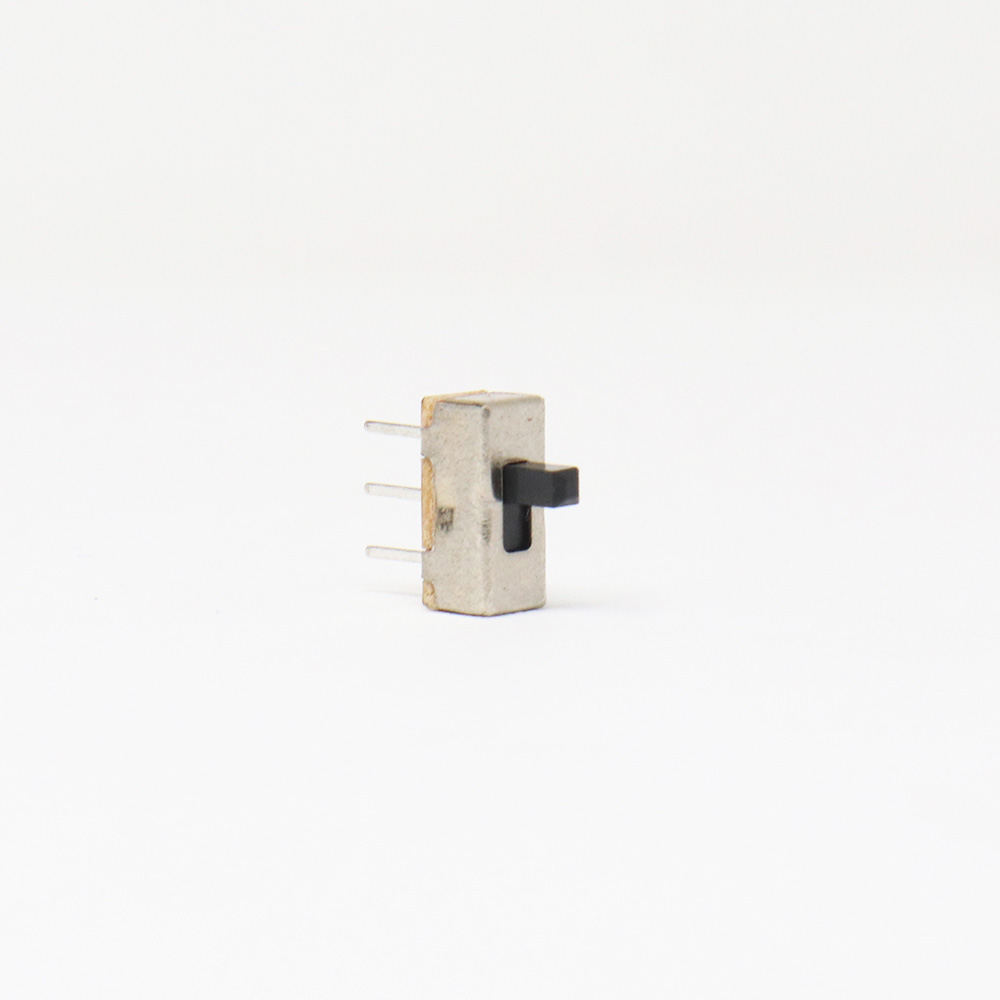

The SS-12D00 1P2T Slide Switch is a miniature, high-reliability electronic component designed for seamless integration into printed circuit board (PCB) layouts. Featuring a Single Pole, Double Throw (1P2T) configuration with a two-position sliding lever mechanism, it offers a compact and convenient solution for controlling electrical connections in constrained spaces.
Constructed from high-quality materials to ensure long-term durability and consistent performance, this switch is an essential tool for various electronic projects, including audio devices, computer peripherals, and diagnostic instrumentation. Its vertical, 3-pin design is ideal for breadboarding and direct PCB mounting, providing a stable, easy-to-use interface for your circuit-switching needs.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Miniature Design: Ultra-compact 3-pin layout, perfect for high-density PCBs and breadboarding.
- 1P2T Configuration: Versatile two-position switching for routing signals or power in simple circuits.
- High-Quality Construction: Engineered for durability and repeated usage, ensuring a long operational lifespan.
- Ease of Installation: Designed for straightforward mounting, making it an excellent choice for both custom DIY electronics and industrial assembly.
Benefits
- Space Optimization: Small form factor helps save valuable board space in complex designs.
- Versatile Application: Suitable for a wide range of fields, from consumer entertainment electronics to professional testing equipment.
- Reliable Connectivity: Provides a firm, consistent sliding action for dependable on/off or mode-toggling functionality.
Applications
- Consumer Electronics: Ideal for color TVs, audio equipment, and home electronic gadgets.
- Computer Peripherals: Reliable mode selection for networking and peripheral interface hardware.
- Industrial Instrumentation: Precision control for diagnostic tools and laboratory testing equipment.
Package Includes
- 1 x Slide Switch SS-12D00 1P2T
Specifications
| Parameter | Specification |
|---|---|
| Model | SS-12D00 |
| Configuration | 1P2T (Single Pole, Double Throw) |
| Mounting | Vertical / PCB |
| Pin Count | 3 Pins |
| Shipping Weight | 0.001 kg |
| Shipping Dimensions | 2 × 2 × 1 cm |
