Description

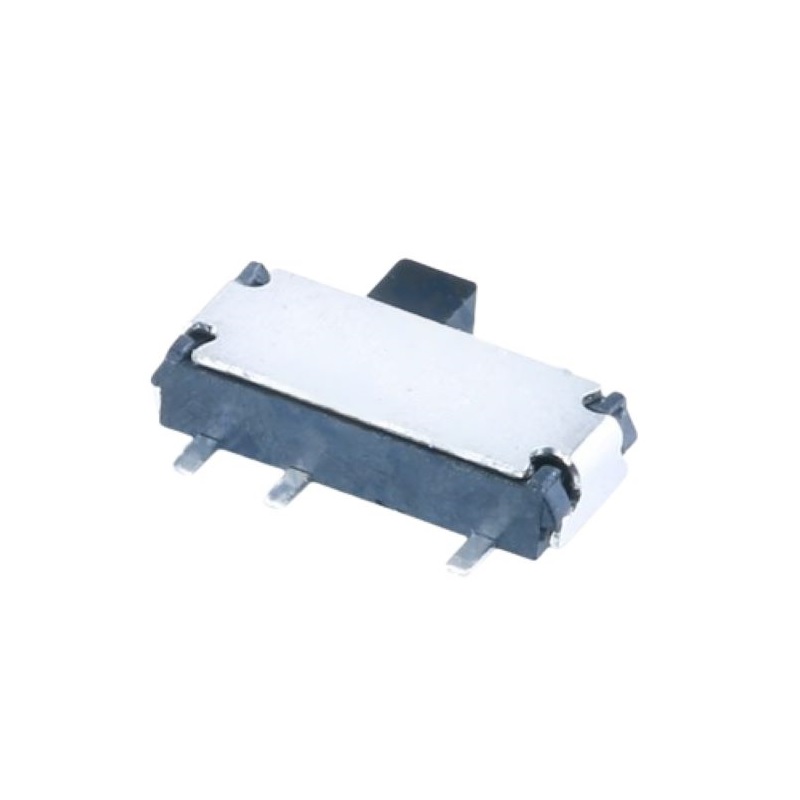

The SK-01 Slide Switch is a high-quality component designed for seamless circuit connection and disconnection in low-voltage electronics. Featuring a flexible, sliding block action, it allows for stable and reliable circuit switching by simply toggling the handle. Its robust mechanical design ensures it remains a dependable choice for a variety of demanding applications.
Built for longevity and consistency, the SK-01 is rated for a minimum of 10,000 operation cycles and performs reliably across a wide temperature range of -30°C to 85°C. Whether it is integrated into precision instrumentation, electric toys, or consumer audio equipment, this switch provides the mechanical stability and electrical reliability required for professional-grade performance.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- Flexible Sliding Action: Smooth, stable handle mechanism provides consistent, reliable switching.
- Wide Operational Range: Rated for use in temperatures from -30°C to 85°C, ensuring stability in diverse operating environments.
- Durable Lifespan: Minimum 10,000-cycle operational rating for long-term consistency in daily use.
- High-Quality Construction: Designed for stable performance in low-voltage circuitry with a maximum contact resistance of 50MΩ.
Benefits
- Application Versatility: Suitable for a wide range of fields, including test instrumentation, communications, and consumer hobby electronics.
- Consistent Performance: Stable mechanical design reduces the risk of intermittent failures or signal degradation.
- Easy Integration: Its standard, compact form factor facilitates straightforward installation in both production lines and custom DIY projects.
Applications
- Instrumentation & Meters: Reliable mode and power switching for precision diagnostic tools.
- Consumer Gadgets: Ideal for electric toys, fax machines, and home electronic devices.
- Audio Equipment: Consistent signal routing for portable and home audio systems.
- Custom Projects: A robust, essential switch for custom circuit development and hobbyist hardware.
Package Includes
- 1 x Slide Switch-SK-01
Specifications
| Parameter | Specification |
|---|---|
| Model | SK-01 |
| Rated Voltage | 12V DC |
| Rated Current | 50mA |
| Operating Temperature | -30°C to 85°C |
| Lifespan | ≥ 10,000 Cycles |
| Contact Resistance | ≤ 50MΩ |
| Compressive Strength | 110V AC (50Hz / 1 min) |
| Shipping Weight | Approx. 0.001 kg |
