Description

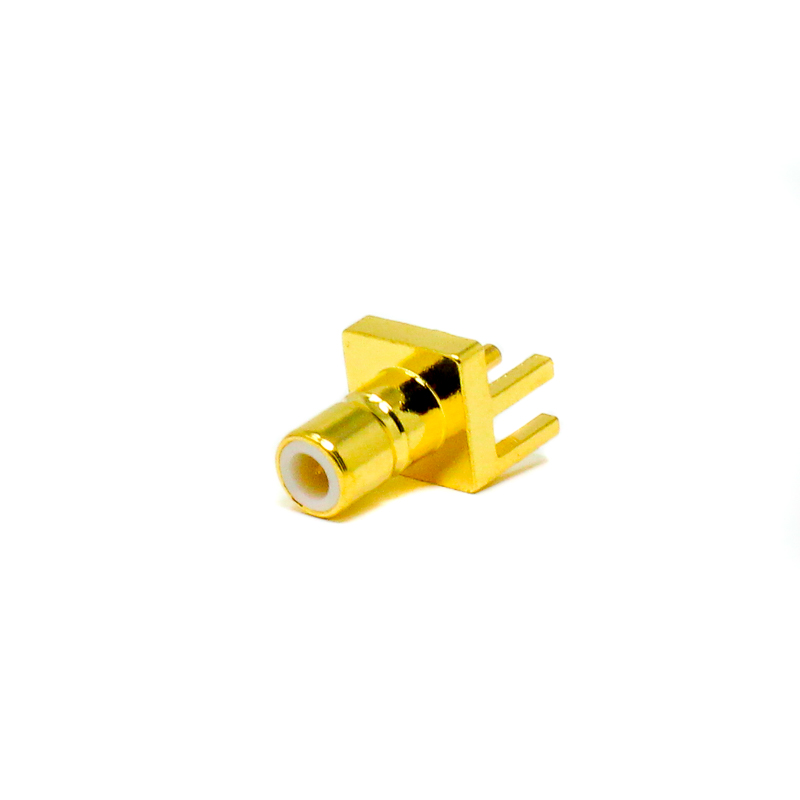

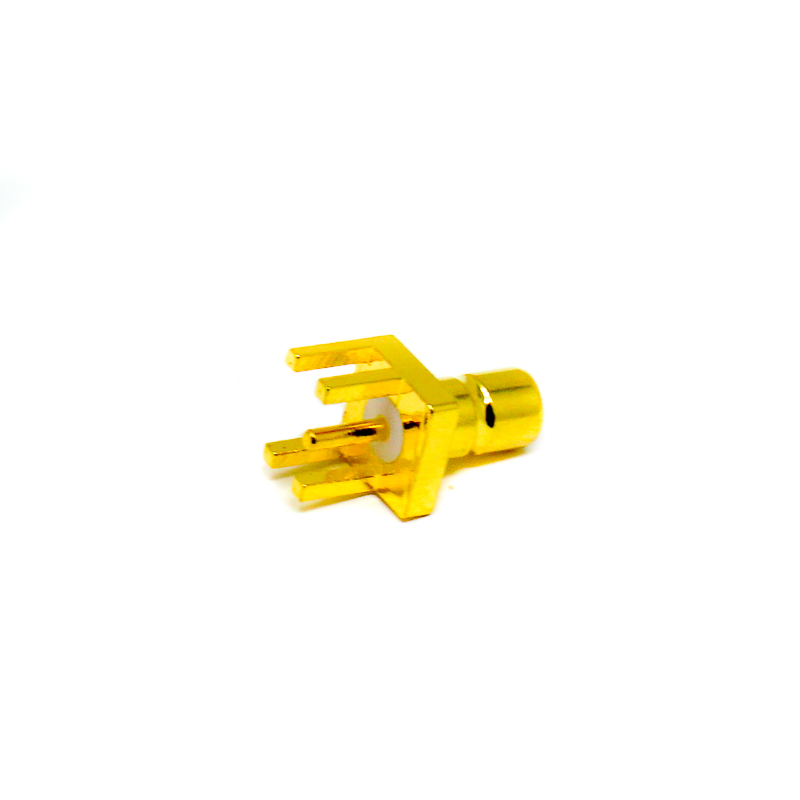

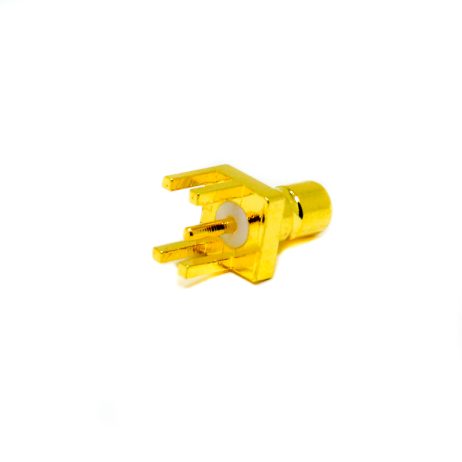

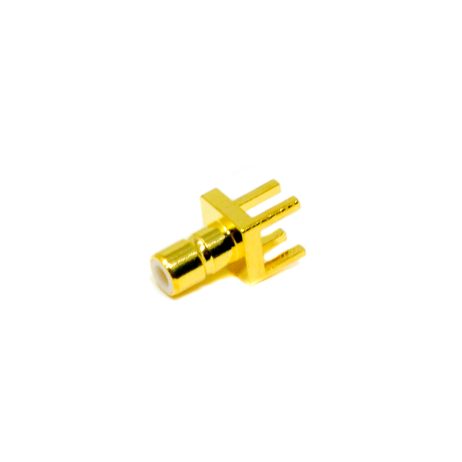

The SMB Male Straight Connector is a high-performance RF plug engineered specifically for plate edge PCB mounting. Combining the industry-standard SubMiniature version B (SMB) design with a convenient snap-on interface, this connector allows for rapid, secure installation, making it ideal for high-density circuit boards, wireless infrastructure, and industrial telemetry systems. Its straight 180° orientation ensures a clean, efficient signal path for frequencies up to 3 GHz.
Built with a high-conductivity gold-plated body, this connector provides superior electrical performance, minimal signal reflection, and excellent resistance to environmental corrosion. Whether integrated into wireless base stations, M2M communication modules, or medical telemetry equipment, this SMB connector delivers the professional-grade stability and broadband performance required for mission-critical RF hardware. Its compact, precision-cast construction offers a cost-effective yet highly durable solution for modern electronic manufacturing.
Key Features
- Design: SMB Male (Plug), Straight (180°) orientation
- Mounting: Plate Edge PCB Mount for streamlined, high-density signal integration
- Coupling: Snap-on interface ensures quick, tool-free installation and disconnection
- Performance: Broadband operation with low signal reflection and consistent signal integrity
- Impedance: Versatile support for 50Ω and 75Ω systems
- Build Quality: Gold-plated body for enhanced conductivity and long-term durability
- Reliability: Engineered to MIL-STD-202 standards for vibration and corrosion resistance
Technical Benefits
- Edge-mount design facilitates efficient signal transition from PCB traces to external cables
- Snap-on mechanism significantly reduces assembly time and simplifies modular maintenance
- Superior contact retention and ≥500 mating cycles ensure reliable long-term performance
- Wide operating temperature range (-65°C to +165°C) suitable for diverse industrial environments
- Precision construction minimizes signal loss in demanding high-frequency applications
Applications
- Telecommunications: Wireless Base Stations and Cellular Mobile Infrastructure
- Data/Communications: Routers, WIFI Access Points, and Radio Boards
- Industrial: M2M Communications, Process Controls, and Instrumentation
- Commercial: GPS Modules and Vehicle Tracking Systems
- Medical: Telemetry equipment and wireless monitoring sensors
- Aerospace & Defense: RF Test Stands and Signal Analysis hardware
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | PCB Mount (Plate Edge) |
| Termination Style | Solder Type |
| Body Material | Copper |
| Body Plating | Gold Plating |
| Impedance | 50 Ω / 75 Ω |
| Operating Temperature | -65°C to +165°C |
