Description

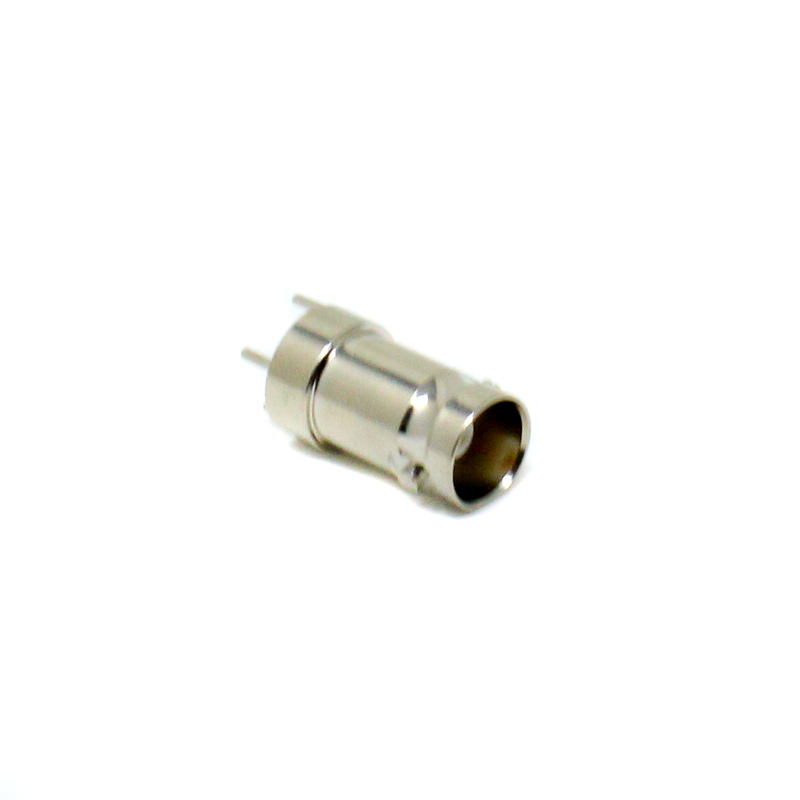

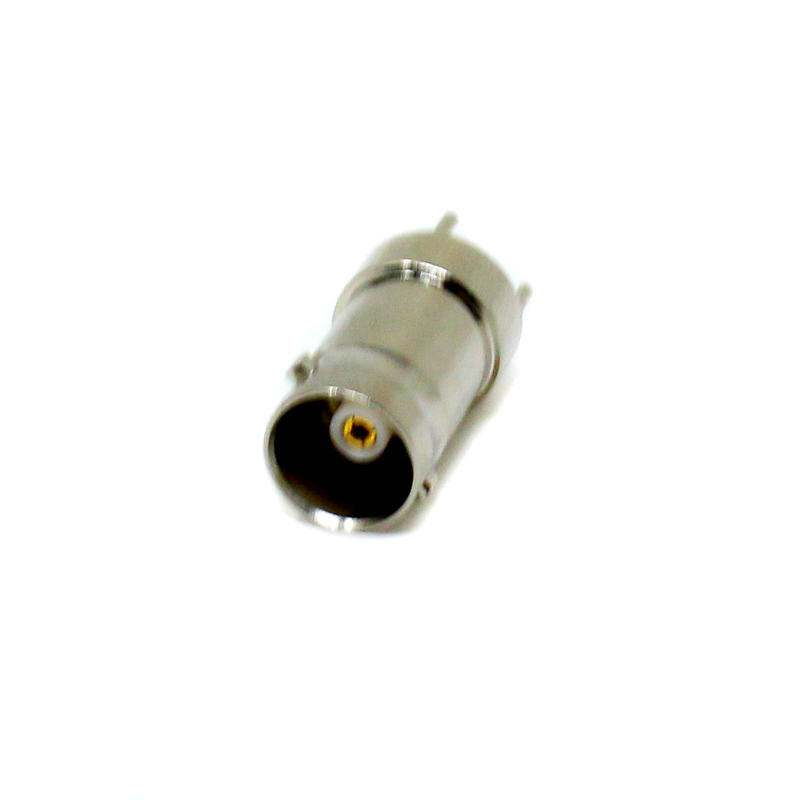

The BNC Female Straight Receptacle is a durable and precision-engineered connector designed for seamless PCB mounting in professional RF and video equipment. Featuring the industry-standard bayonet-style coupling, this connector ensures rapid, secure connection and disconnection, essential for broadcast, telecommunications, and CCTV systems. Its compact, straight 180° orientation is specifically designed to optimize space on crowded circuit boards while maintaining reliable signal integrity.
Constructed from a robust nickel-plated zinc alloy body, this receptacle offers excellent resistance to environmental degradation and mechanical wear. Engineered to support 50Ω impedance with high electrical stability, it is an ideal interface for antennas, recorders, and industrial instrumentation. With a proven durability of ≥500 mating cycles and compliance with MIL-STD-202 vibration and corrosion standards, this BNC jack provides the professional-grade performance required for mission-critical electronic assemblies.
Key Features
- Design: BNC Female (Jack), Straight (180°) orientation
- Mounting: PCB/Panel Mount with secure through-hole solder termination
- Coupling: Bayonet-style quick-connect/disconnect mechanism
- Performance: Optimized for 50Ω systems; broadband operation up to 4 GHz
- Build Quality: Nickel-plated zinc alloy body for enhanced environmental protection
- Reliability: Engineered for ≥500 mating cycles and MIL-STD-202 compliance
- Compact Form: Space-saving design ideal for high-density electronic enclosures
Technical Benefits
- Bayonet locking mechanism prevents signal loss from accidental tugging or vibration
- High-grade materials offer superior resistance to oxidation and mechanical stress
- Stable electrical performance ensures low signal reflection in sensitive RF circuits
- Professional, OEM-standard build quality suitable for industrial and broadcast use
- Efficient solder-type termination for a permanent, low-resistance electrical bond
Applications
- Broadcasting: HDTV, Video Recording, and Switchers
- Surveillance: CCTV and Professional Security Systems
- Telecommunications: Wireless Base Stations and Satcom Infrastructure
- Industrial: Medical Equipment, Test Instrumentation, and Radio Systems
- General: Antenna connections and High-Performance Cable Assemblies
Package Includes
- 1 x Zinc Alloy BNC Female Jack Receptacle (PCB Mount)

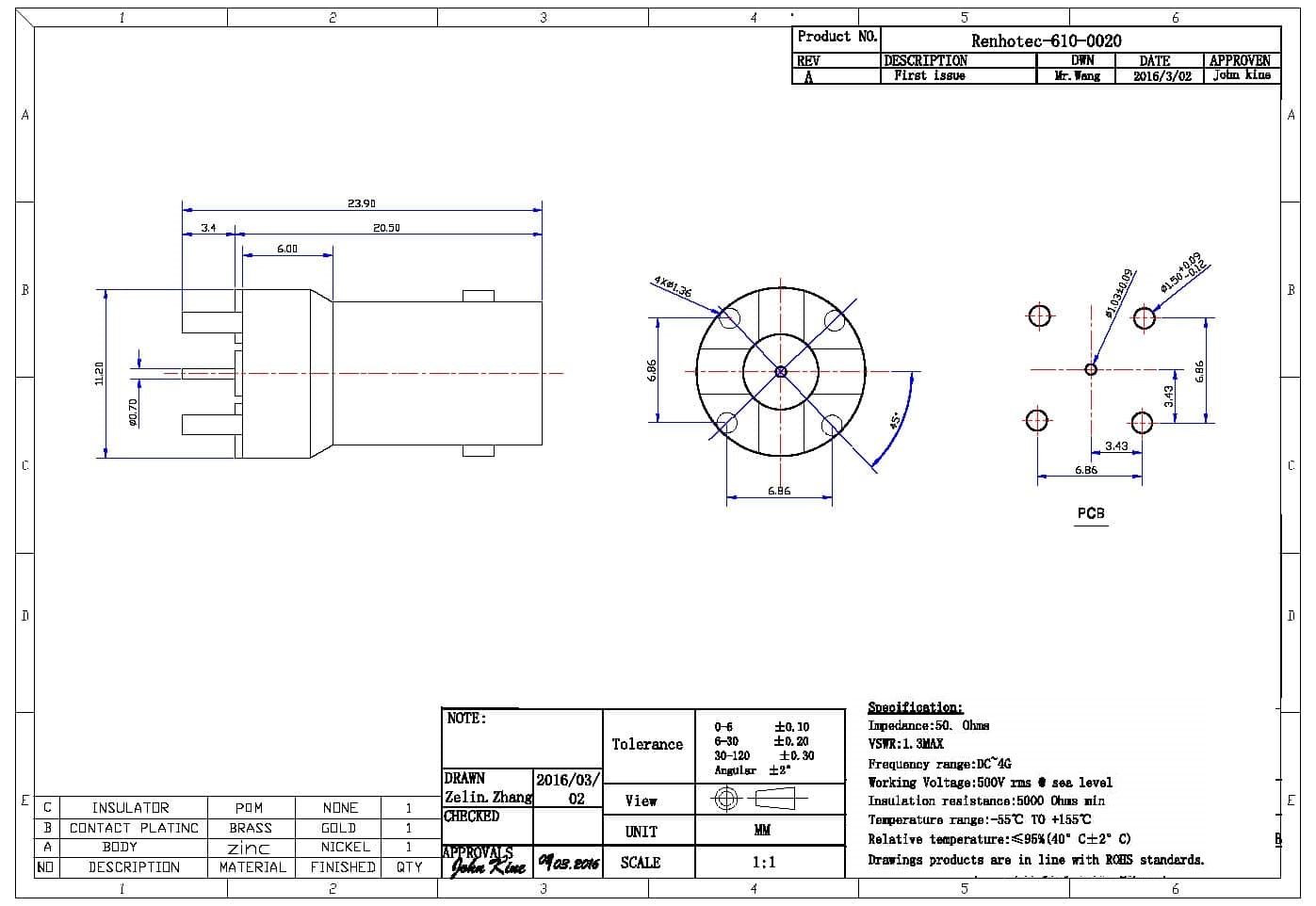

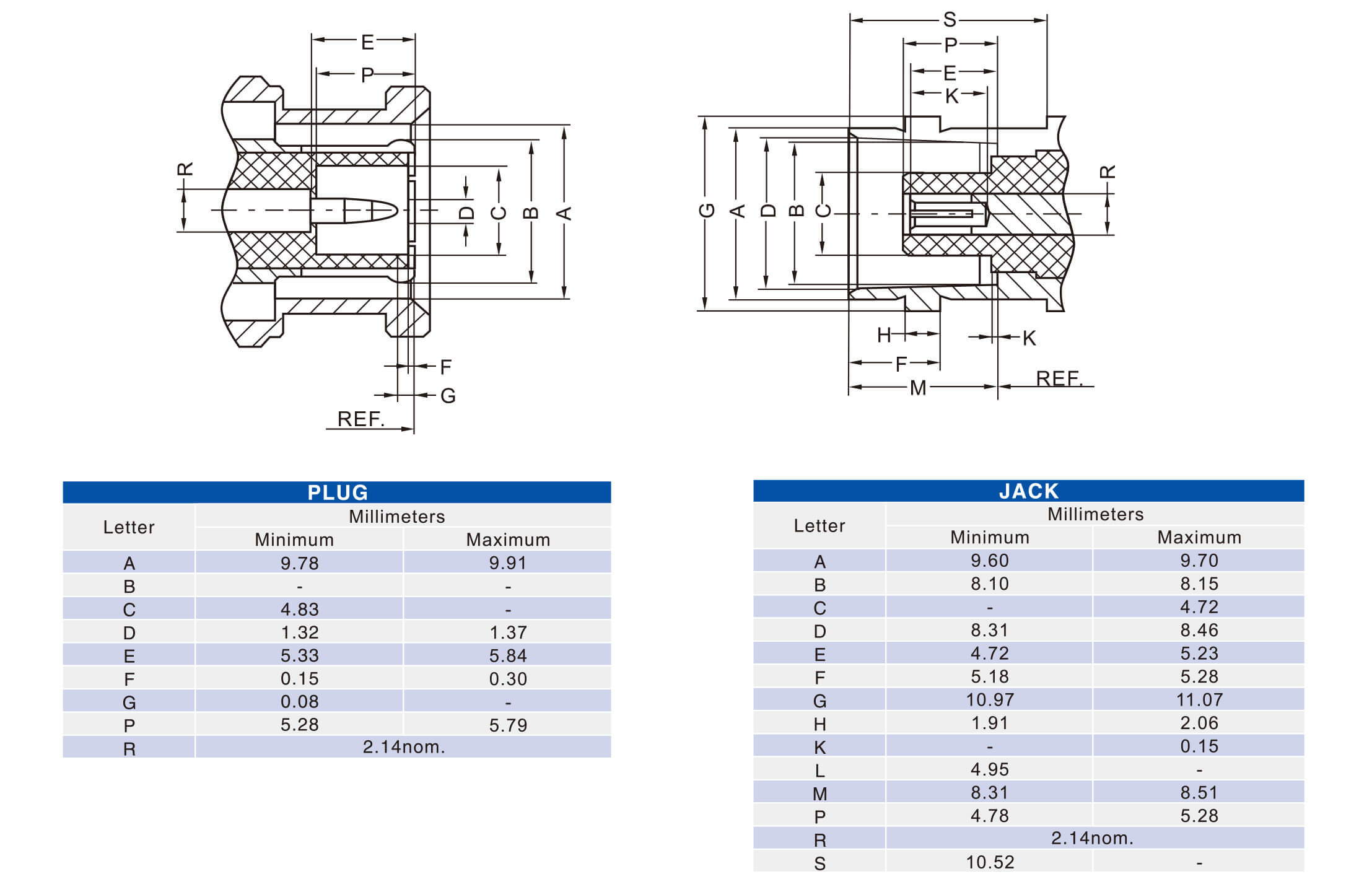

Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Female (Jack) |
| Mounting Type | PCB / Panel Mount |
| Termination Style | Solder Type |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Frequency Range | 0 – 4 GHz |
| Operating Temperature | -55°C to +155°C (Teflon) |
