Description

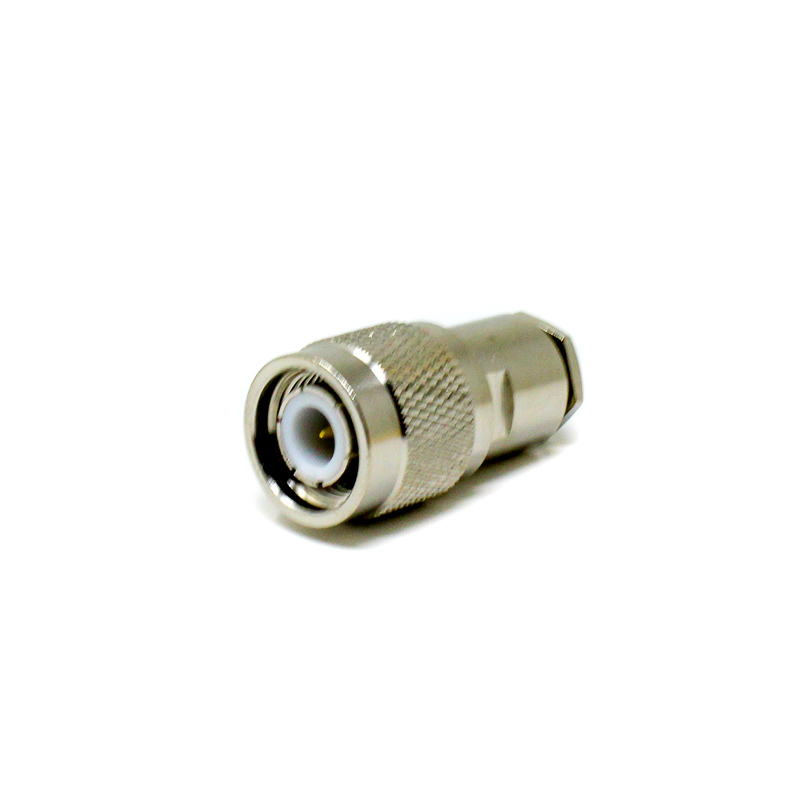

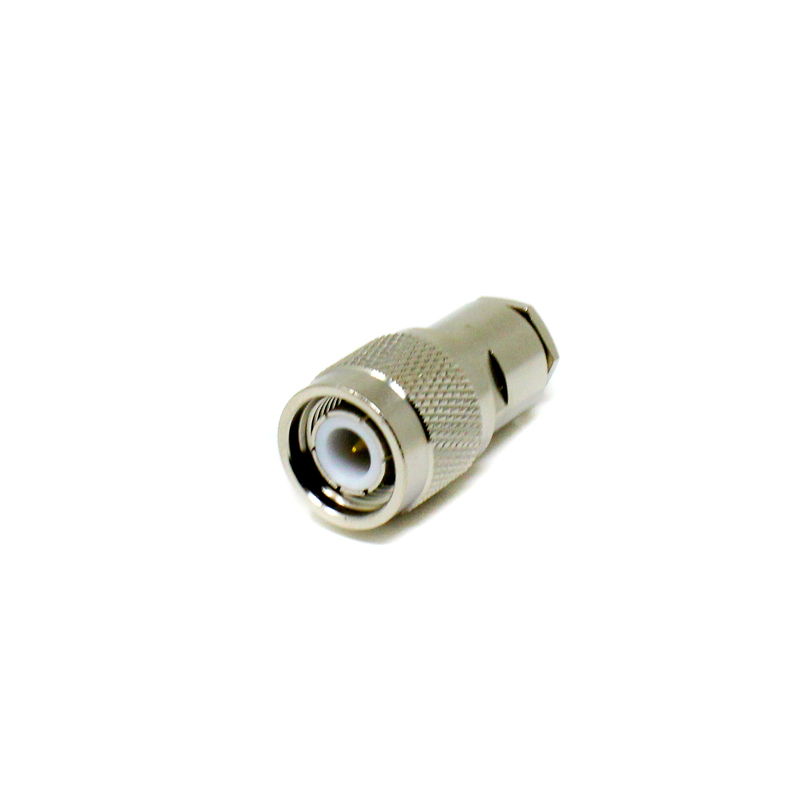

The TNC Male Straight Connector is a high-performance RF interface designed for demanding industrial, telecommunication, and aerospace applications. As a threaded version of the BNC connector, the TNC (Threaded Neill-Concelman) design utilizes a 7/16-28 threaded coupling mechanism to ensure a secure, vibration-resistant connection that remains stable even in high-motion environments.
Engineered to MIL-C-39012 standards, this connector delivers superior performance compared to traditional BNC types, supporting microwave frequencies up to 11 GHz. It is constructed from a durable nickel-plated brass body, providing excellent resistance to corrosion and environmental stress. Featuring a versatile termination style, this TNC plug is an ideal solution for mission-critical systems, including radar equipment, wireless base stations, and high-precision measuring instruments.
Features
- Design: TNC Male (Plug), Straight (180°) orientation
- Mounting: Cable mount with professional termination style
- Coupling: Threaded 7/16-28 interface for superior vibration resistance
- Performance: Broadband microwave frequency support up to 11 GHz
- Impedance: Supports standard 50Ω and 75Ω RF systems
- Build Quality: Nickel-plated brass for enhanced environmental durability
- Reliability: Engineered to MIL-STD-202 specifications
Benefits
- Threaded locking mechanism prevents signal drops in high-vibration scenarios
- High mechanical durability rating (≥500 mating cycles) ensures long operational life
- Professional, OEM-standard build quality at a competitive price
- Resilient in extreme thermal conditions (-65°C to +145°C)
- Versatile design suitable for diverse RF interconnects and antenna mounts
Applications
- Wireless Base Stations and Cellular Networks
- Microwave Components and Radar Systems
- GPS, Telemetry, and Bluetooth Equipment
- Machine-to-Machine (M2M) Industrial Communications
- Security Devices and Measurement Instrumentation
Package Includes
- 1 x TNC Plug Straight Screw Terminal / Crimp Type for Cable
Warranty Information
This product includes a 15-day warranty against manufacturing defects from the date of delivery. Please note that the warranty is valid only for sealed products; the warranty is void if the product has been tampered with, soldered, altered, or damaged due to misuse, accidents, or environmental factors. If the manufacturer’s seal is broken, returns are not accepted unless the issue is a verified manufacturing defect.
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Crimp / Screw Terminal |
| Body Material | Brass |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω / 75 Ω |
| Operating Temperature | -65°C to +145°C |
