Description
The TNC Male Straight Connector is a professional-grade RF interface engineered for high-performance cable-mount applications. Often described as the threaded version of the BNC connector, the TNC (Threaded Neill-Concelman) design utilizes a 7/16-28 threaded coupling mechanism, ensuring a secure and stable connection that will not loosen in high-vibration environments. This connector is an excellent choice for mission-critical systems requiring durability and consistent signal integrity.
Built to meet the MIL-C-39012 standard, this connector offers superior performance compared to standard BNC types, supporting microwave frequencies up to 11 GHz. It features a robust nickel-plated zinc alloy body, providing excellent resistance to corrosion and environmental stress. With a wide operating temperature range and reliable crimp-style shield termination, this TNC plug is ideal for cellular networks, aviation controls, and industrial instrumentation where precision and long-term reliability are paramount.
Features
- Design: TNC Male (Plug), Straight (180°) orientation
- Mounting: Cable mount with professional crimp-style shield termination

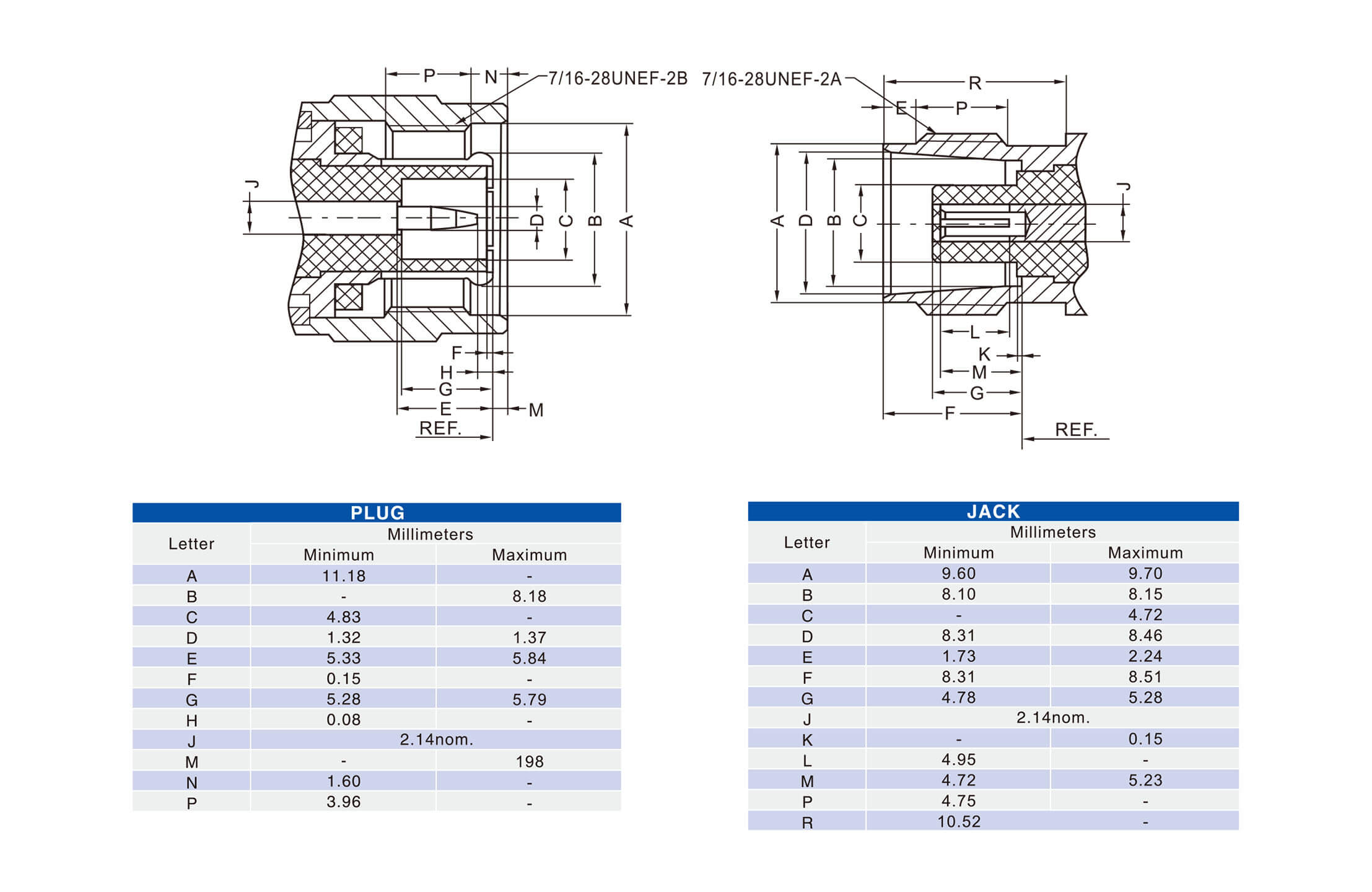

- Coupling: Threaded 7/16-28 interface for exceptional vibration resistance
- Performance: Supports microwave frequencies up to 11 GHz
- Impedance: 50Ω optimized for RF systems
- Durability: Nickel-plated zinc alloy body for harsh environment protection
- Reliability: Engineered to MIL-C-39012 and MIL-STD-202 specifications
Benefits
- Threaded locking prevents signal loss due to mechanical shock or vibration
- High mechanical durability rating (≥500 mating cycles) ensures a long operational life
- Professional, OEM-quality build at a competitive price
- Resilient in extreme thermal conditions (-65°C to +145°C)
- Versatile termination style supports reliable, permanent cable assembly
Applications
- Wireless Base Stations and Cellular Infrastructure
- Aviation and Aerospace Control Systems
- Telemetry, GPS, and Bluetooth Equipment
- Microwave Components and Radar Systems
- Machine-to-Machine (M2M) Industrial Communications
- Instrumentation and Security Devices
Package Includes

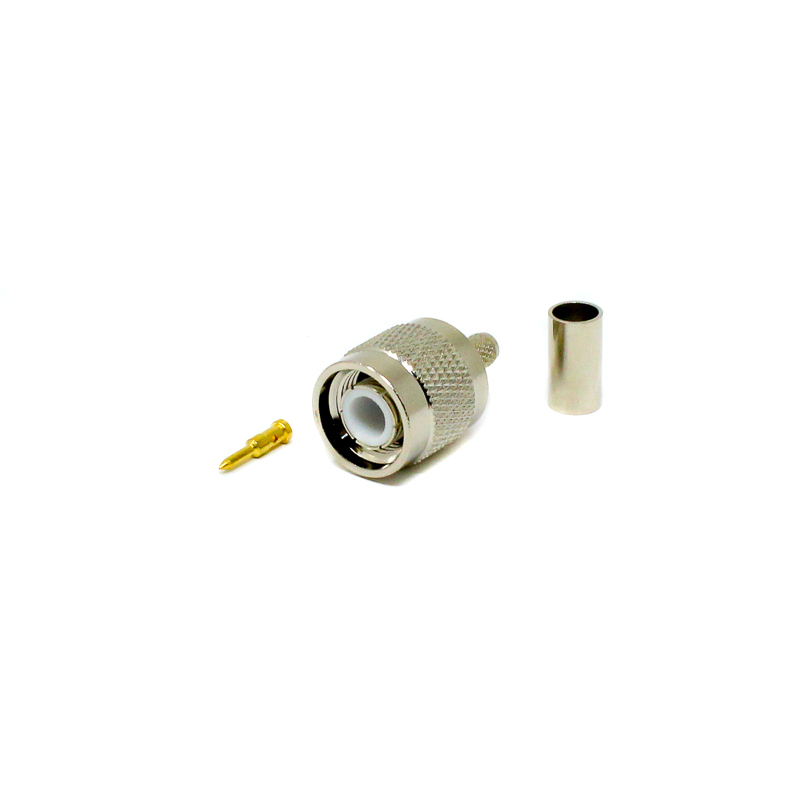

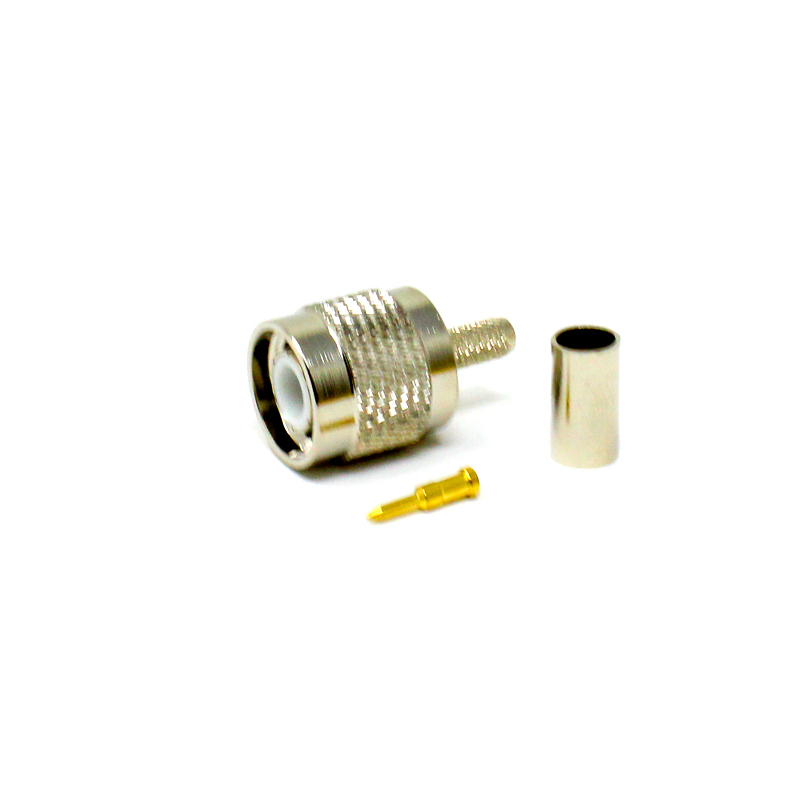

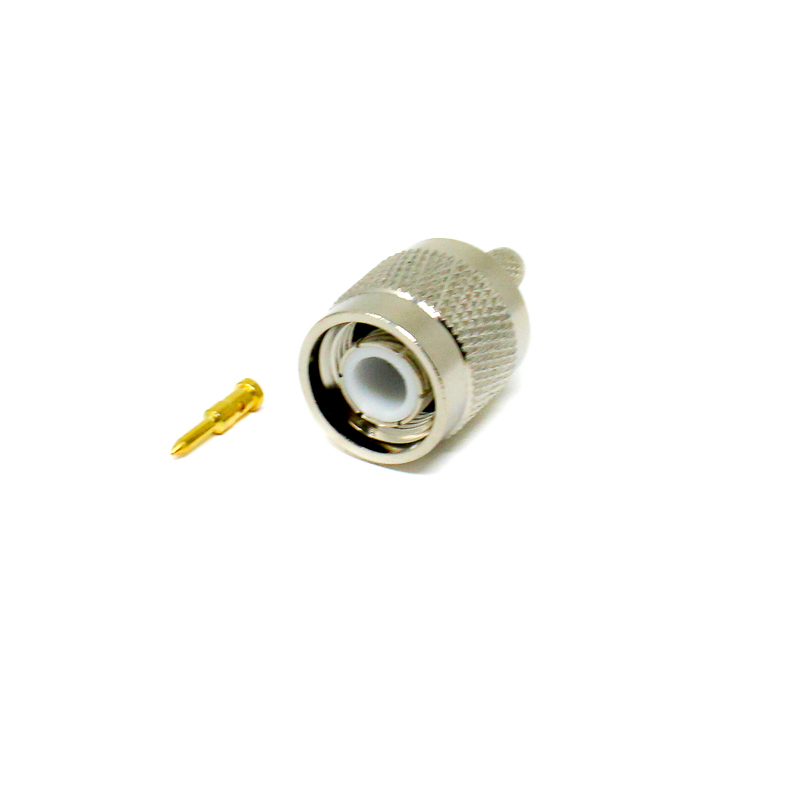

- 1 x TNC Male Straight Crimped Connector for Cable
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Solder/Crimp |
| Body Material | Zinc Alloy |
| Body Plating | Nickel Plating |
| Impedance | 50 Ω |
| Operating Temperature | -65°C to +145°C |
| Shipping Weight | 0.01 kg |
