Description

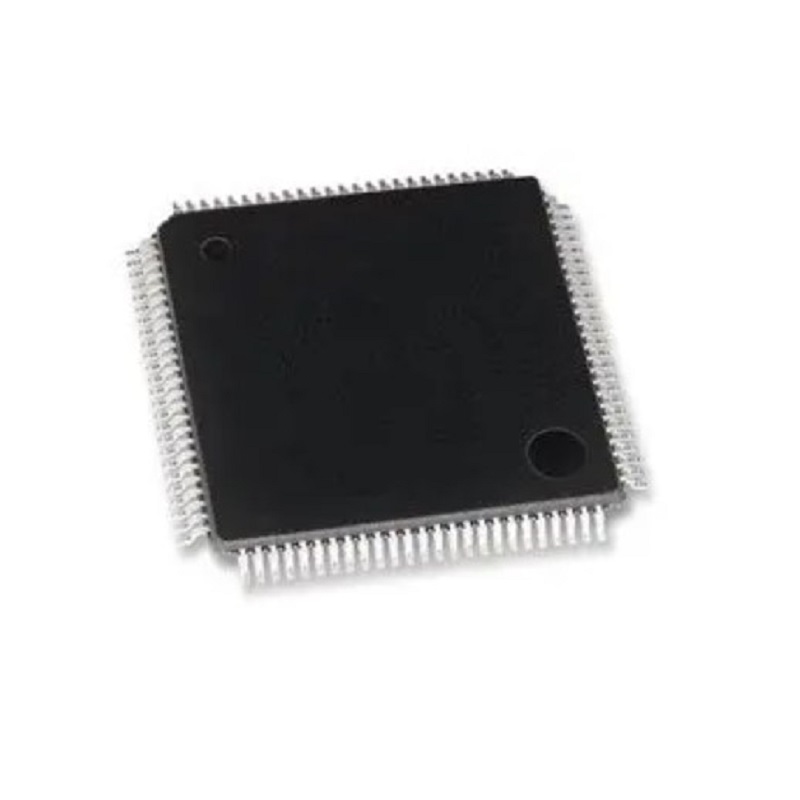

The STM32F411VCT6 is a highly efficient microcontroller from the STM32F4 series, powered by the ARM® Cortex®-M4 32-bit RISC core. Operating at frequencies up to 100MHz, this device is optimized for applications requiring a balance of high performance, low power consumption, and rich peripheral integration. With 256KB of Flash memory and a sophisticated set of connectivity and control features, it provides a robust platform for developers looking to maximize efficiency in compact, high-performance designs.
Key Features
- ARM® Cortex®-M4 Core: 32-bit RISC core providing high computational performance at 100MHz.
- Integrated Memory: 256KB of on-chip Flash memory for reliable code and data storage.
- Efficient Architecture: Designed for high performance while maintaining excellent energy efficiency.
- Peripheral Integration: Rich set of internal peripherals for advanced system control and communication.
- Versatile Power Range: Operates reliably across a supply voltage range of 1.7V to 3.6V.
Applications
- Industrial Automation: Suitable for control systems and sensor-based monitoring nodes.
- Consumer Electronics: High-performance core for compact portable devices and wearable electronics.
- Data Acquisition: Efficient processing for signal-heavy embedded applications.
- General Embedded Control: Versatile MCU for prototyping and production designs requiring the ARM® Cortex®-M4 architecture.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | STM32F411VCT6 |
| Core Architecture | ARM Cortex-M4 (32-bit) |
| Max Clock Frequency | 100 MHz |
| Program Memory | 256 KB Flash |
| Supply Voltage | 1.7V to 3.6V |
| Operating Temp | –40°C to +85°C |
| Package/Case | LQFP |
| Shipping Weight | 0.005 kg |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. Please refer to the official STMicroelectronics datasheet for complete electrical characteristics and application design details.
