Description
The PCA9306USG from onsemi is a high-performance, dual-channel, bidirectional voltage-level translator specifically designed for I²C-bus and SMBus applications. It facilitates seamless communication between devices operating at different voltage domains without the need for a direction control pin. By utilizing a low 3.5Ω ON-state resistance, the translator ensures minimal signal distortion and maintains signal integrity across the interface.
Featuring a “flow-through” pinout, the device simplifies PCB trace routing, making it an excellent choice for compact board designs. With lock-up free operation and a wide supply voltage range (0V to 5.5V), the PCA9306USG provides a reliable and flexible solution for multi-voltage electronic systems where inter-device communication is critical.
Key Features
- Bidirectional Translation: Enables level shifting between different voltage domains without a direction control signal.
- Signal Integrity: Low 3.5Ω ON-state resistance reduces signal distortion.
- Lock-up Free: Designed for stable, reliable operation in I²C and SMBus environments.
- PCB Friendly: Flow-through pinout architecture allows for easy and efficient layout routing.
- Wide Voltage Range: Supports flexible operation from 0V to 5.5V.
- Compact Packaging: Housed in a space-efficient 8-pin US8 package.
Applications
- Multi-Voltage Systems: Interfacing microcontrollers and peripherals operating at different voltage levels.
- I²C/SMBus Interfaces: Essential for communication between components on complex PCBs.
- Portable Electronics: Ideal for compact, battery-powered designs requiring low-distortion signal translation.
- Industrial Controllers: Reliable level shifting for data buses in harsh or complex operating environments.
Package Includes

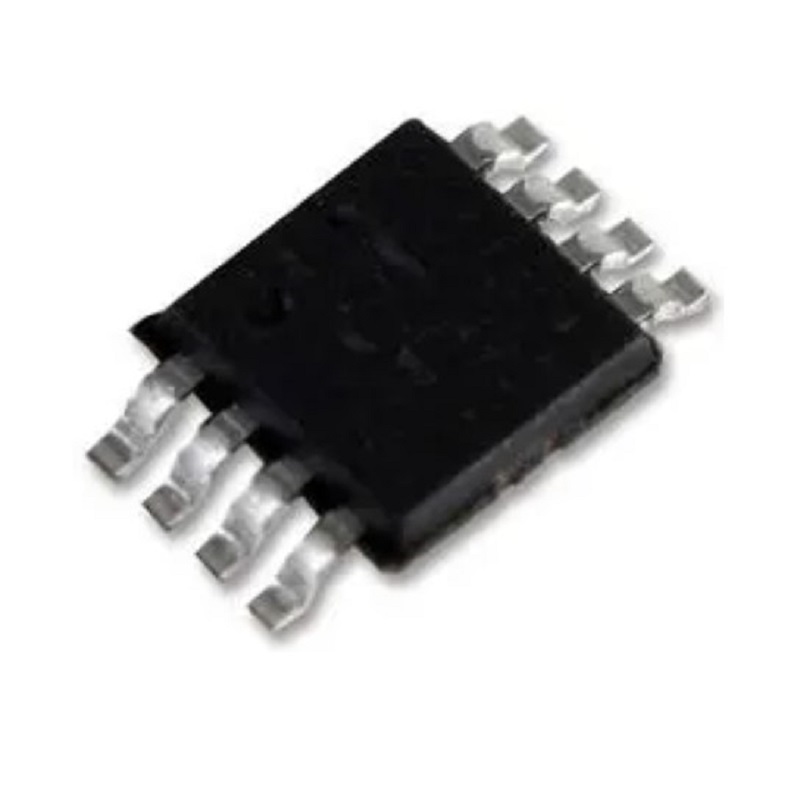

- 1 x PCA9306USG Voltage Level Translator (US8)
Technical Specifications
| Parameter | Specification |
|---|---|
| Device | PCA9306USG |
| Logic Type | Bidirectional Level Translator |
| Inputs | 2 |
| Supply Voltage | 0V to 5.5V |
| Max Output Current | 64 mA |
| Propagation Delay | 1.5 ns |
| Operating Temp | -55°C to +125°C |
| Package/Case | US8 (8-Pin) |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 9 × 7 × 2 cm |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. For complete electrical characteristics and application notes, please refer to the official onsemi datasheet.
