Description
The STM32F407VGT6 is a high-performance microcontroller from the STM32F4 series, powered by the ARM® Cortex®-M4 32-bit RISC core. Operating at up to 168MHz, this MCU includes a hardware Floating Point Unit (FPU), a full suite of DSP instructions, and a Memory Protection Unit (MPU) for enhanced security. It features high-speed embedded memory, including up to 1MB of Flash and 192KB of SRAM, along with an advanced bus matrix architecture. With its extensive range of high-speed peripherals and connectivity options, it is designed for demanding real-time applications requiring significant processing power.
Key Features
- ARM® Cortex®-M4 Core: 32-bit RISC processor with integrated FPU running at up to 168MHz.
- High-Speed Memory: Up to 1MB Flash and 192KB+4KB SRAM, including 64KB Core Coupled Memory (CCM).
- Advanced Connectivity: Features Ethernet MAC, 15 communication interfaces, and support for high-speed serial protocols.
- Flexible Memory Controller: Supports external storage interfaces including Compact Flash, SRAM, PSRAM, NOR, and NAND.
- Multimedia Support: Integrated LCD parallel interface (8080/6800 modes) for advanced display control.
- Extensive I/O: Up to 140 I/O ports with interrupt capability, including 138 5V-tolerant I/Os.
- System Reliability: Advanced clock/reset management, integrated MPU for security, and dedicated debug modes.
Applications
- Industrial Automation: Robust control for motor drives, PLCs, and factory instrumentation.
- Communication Hubs: Ethernet-enabled networking devices and data gateways.
- Advanced Human-Machine Interface: High-performance controllers for LCD-based displays and user interfaces.
- Data Acquisition: High-speed processing for complex sensors and medical diagnostic equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | STM32F407VGT6 |
| Core Architecture | ARM Cortex-M4 (32-bit) |
| Max Clock Frequency | 168 MHz |
| Program Memory | 1 MB Flash |
| RAM Size | 192 KB + 4 KB |
| Supply Voltage | 1.8V to 3.6V |
| Operating Temp | –40°C to +85°C |
| Package/Case | LQFP |

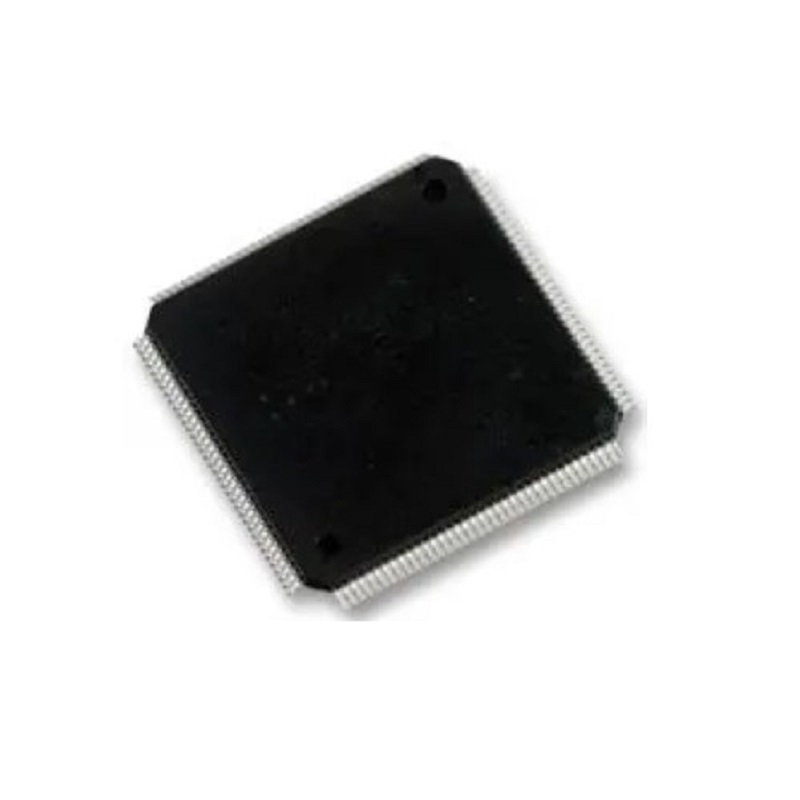

Note: Product images are shown for illustrative purposes only and may differ from the actual product. Please refer to the official STMicroelectronics datasheet for complete electrical characteristics and application design details.
