Description

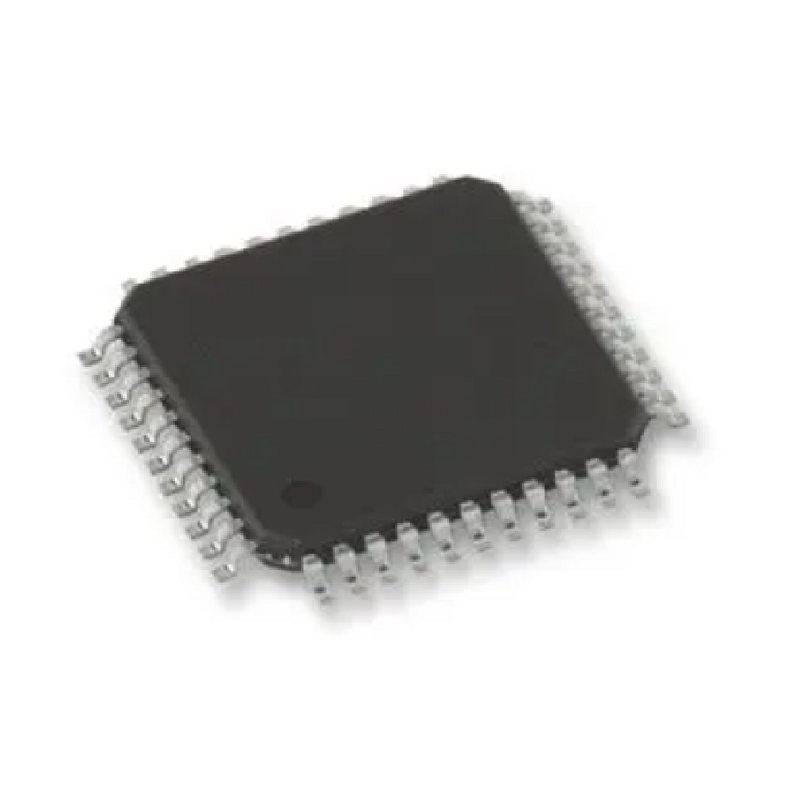

The PIC18F4580-I/PT is a high-performance, 8-bit enhanced Flash microcontroller featuring Microchip’s nanoWatt technology and integrated ECAN™ (Enhanced Controller Area Network) capability. Designed for power-sensitive and high-performance applications, it includes a flexible internal oscillator block that can eliminate the need for external components. With in-circuit serial programming (ICSP™) and extensive peripheral support, it provides a powerful, reliable solution for demanding embedded control tasks.
Key Features
- ECAN™ Technology: Integrated CAN module supporting message bit rates up to 1Mbps with automatic remote frame handling.
- Power Management: Includes Run, Idle, and Sleep modes to significantly reduce power consumption.
- Flexible Clocking: Internal oscillator block generates multiple clock signals; supports secondary 32kHz Timer1 oscillator and fail-safe clock monitoring.
- Data Reliability: Flash and EEPROM memory guaranteed for 40 years of retention; self-programmable under software control.
- Enhanced Peripherals: Features three external interrupts, a Capture/Compare/PWM (CCP) module, and an 8×8 single-cycle hardware multiplier.
- In-Circuit Support: Easy development with In-Circuit Serial Programming™ (ICSP™) and In-Circuit Debug (ICD) via a simple two-pin interface.
Applications
- Automotive: Ideal for CAN-based automotive control systems and diagnostic modules.
- Industrial Automation: Reliable performance for instrumentation and high-speed communication nodes.
- Embedded Control: Versatile platform for power-sensitive applications requiring sophisticated control logic.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | PIC18F4580-I/PT |
| Brand | Microchip |
| Operating Frequency | 40 MHz |
| Interfaces | ECAN, EUSART, I2C, PSP, SPI |
| Supply Voltage | 4.2V to 5.5V |
| Operating Temp | –40°C to +85°C |
| Package/Case | TQFP (44 Pins) |
Note: Product images are shown for illustrative purposes only and may differ from the actual product. Please refer to the official Microchip datasheet for complete electrical characteristics and application design details.
