SPIDER Automation Raspberry Pi 500 Personal Computer Keyboard | Quad-Core 2.4GHz, 8GB RAM (US Unit)
Description
SPIDER Automation Raspberry Pi 500 builds directly on the monumental success of the Pi 400, uniting the cutting-edge performance of the Raspberry Pi 5 platform with the ultimate convenience of a fully integrated desktop keyboard. Driven by a powerful 2.4GHz quad-core 64-bit ARM Cortex-A76 processor and supported by an integrated one-piece aluminum heatsink for exceptional thermal management, the Pi 500 runs fast, cool, and smooth even under heavy workloads.

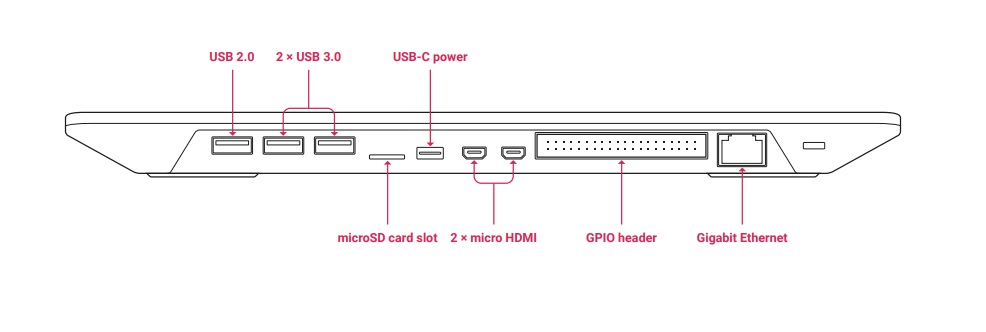

Complete with 8GB of high-speed LPDDR4X-4267 SDRAM and a preinstalled 32GB microSD card loaded with Raspberry Pi OS, this system is ready for immediate productivity, coding, web browsing, and media creation. It features a dedicated physical power button, enhanced security via a built-in Kensington lock slot, dual micro-HDMI ports capable of driving dual 4K displays at 60Hz, high-speed USB 3.0 ports, Gigabit Ethernet, and a horizontal 40-pin GPIO header for hardware experimentation.
Key Features
- Quad-Core ARM Cortex-A76 SoC: Powered by a 2.4GHz 64-bit processor featuring cryptography extensions, 512KB per-core L2 caches, and a 2MB shared L3 cache.
- 8GB LPDDR4X-4267 RAM: High-bandwidth system memory configuration enabling smooth multitasking and execution of heavy desktop environments.
- Integrated All-in-One Design: Combines the core motherboard and a compact 78-key US layout keyboard into a single elegant, portable unit.
- Advanced Thermal Management: Features a built-in one-piece aluminum heatsink to maintain optimal performance without thermal throttling.
- Dual 4K Video Outputs: Two micro-HDMI ports support dual independent displays at resolutions up to 4Kp60 with HDR support.
- Preinstalled OS Storage: Comes with an official 32GB A2-class microSD card preloaded with Raspberry Pi OS for instant plug-and-play setup.
- Dedicated Power Button: Integrated physical power key allows for clean, safe system power management.
- Physical Security: Built-in Kensington lock slot to secure the unit safely in public or educational environments.
- Standard 40-Pin GPIO Header: Fully accessible horizontal GPIO header for connecting electronic circuits, sensors, and expansion HATs.
Benefits
- Uncompromising Desktop Power: Brings full Raspberry Pi 5 capability to a neat, cable-minimized form factor that clears up desk clutter.
- Effortless Setup: With the OS preloaded on the included 32GB SD card, you can go from unboxing to a fully functioning desktop in minutes.
- Improved Connectivity & Speed: Dual USB 3.0 ports and Gigabit Ethernet provide lightning-fast data transfers for external drives and network resources.
- Robust Reliability: Engineered for continuous commercial, educational, and personal computing with long-term production availability.
Applications
- Education & Computer Labs: Ideal, cost-effective workstation solution for teaching Python programming, computer science, and Linux workflows.
- Home & Office Productivity: Compact everyday desktop computer for document editing, web browsing, online learning, and media streaming.
- Embedded Prototyping & IoT: Convenient developer station allowing direct access to 40-pin GPIO accessories without needing a separate board housing.
- Digital Signage & Kiosks: Easily mountable behind commercial screens to drive dual high-definition interactive public terminals.
Package Includes
- 1 x Raspberry Pi 500 Unit Only (US Layout Keyboard Chassis)
- 1 x Preinstalled Raspberry Pi-Branded 32GB Micro SD Card (with Raspberry Pi OS)
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Series | SPIDER Automation / Raspberry Pi 500 Series |
| Item / Product Type | All-in-One Desktop Personal Computer Keyboard |
| Model Order Code / SKU | Raspberry Pi 500 US Unit / SKU-SPIDER-RPI-500-US |
| Main Processor (SoC) | 2.4GHz Quad-Core 64-bit Arm Cortex-A76 CPU (with cryptography extensions & RP1 I/O controller) |
| System Memory (RAM) | 8 GB LPDDR4X-4267 SDRAM |
| Onboard Storage Media | Preinstalled 32GB Raspberry Pi A2-Class MicroSD Card (OS included) |
| Keyboard Layout & Build | 78-Key Compact Keyboard (US Layout) with Integrated Aluminum Heatsink |
| Wireless Connectivity | Dual-Band 2.4GHz & 5.0GHz IEEE 802.11b/g/n/ac Wi-Fi, Bluetooth 5.0, BLE |
| Wired Network Interface | Gigabit Ethernet RJ45 Port |
| Video & Display Outputs | 2 × Micro-HDMI Ports (Supporting up to 4Kp60 resolution with HDR) |
| USB Peripheral Ports | 2 × USB 3.0 Ports, 1 × USB 2.0 Port |
| Expansion & GPIO Header | Horizontal 40-Pin GPIO Header |
| Graphics & Multimedia | Broadcom VideoCore VII (OpenGL ES 3.1, Vulkan 1.3), H.265 (4Kp60 decode) |
| Physical Controls & Security | Dedicated Mechanical Power Button & Kensington Security Lock Slot |
| Power Supply Input | 5V DC via USB Type-C Port (Compatible with official 27W USB-C PD power supplies) |
| Operating Temperature Range | 0°C to +50°C ambient |
| Keyboard Dimensions | 286 mm × 122 mm × 23 mm |
| Package Shipping Weight | 0.45 kg (450 g) |
| Package Shipping Dimensions | 30 cm × 13 cm × 5 cm |
