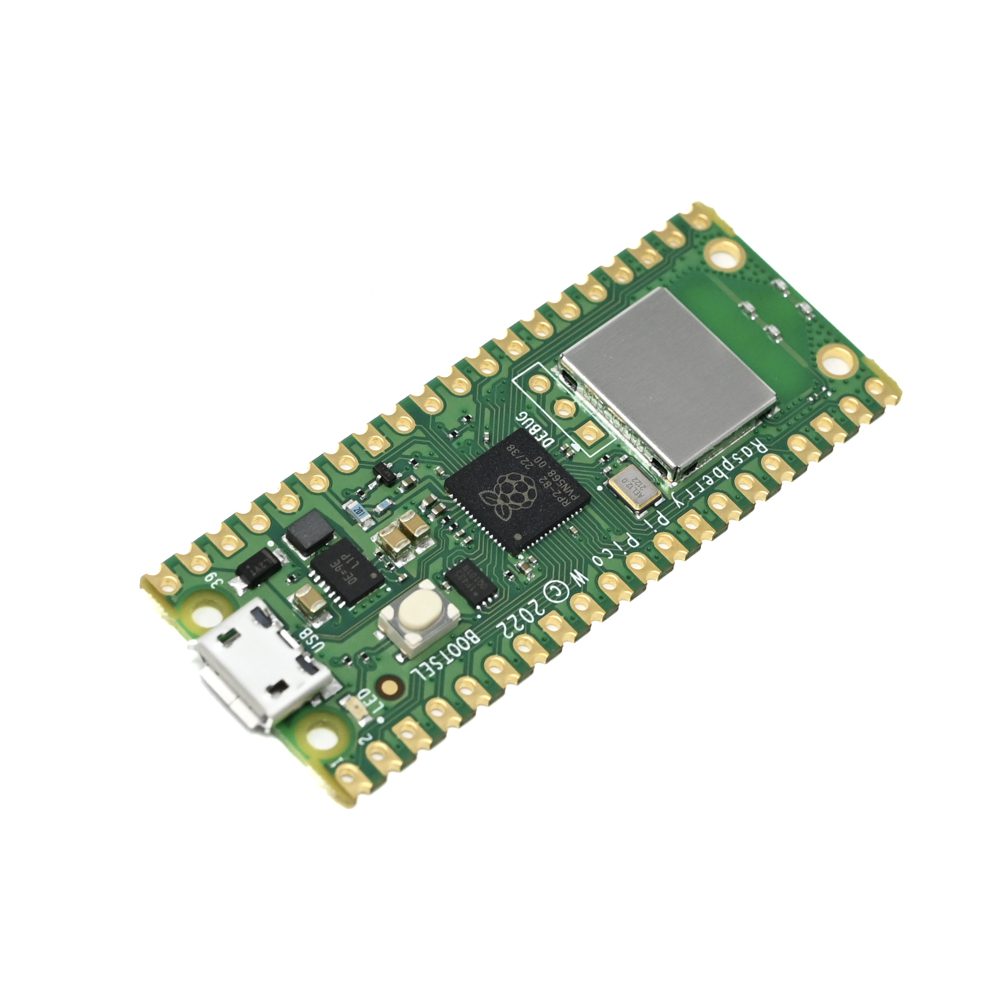

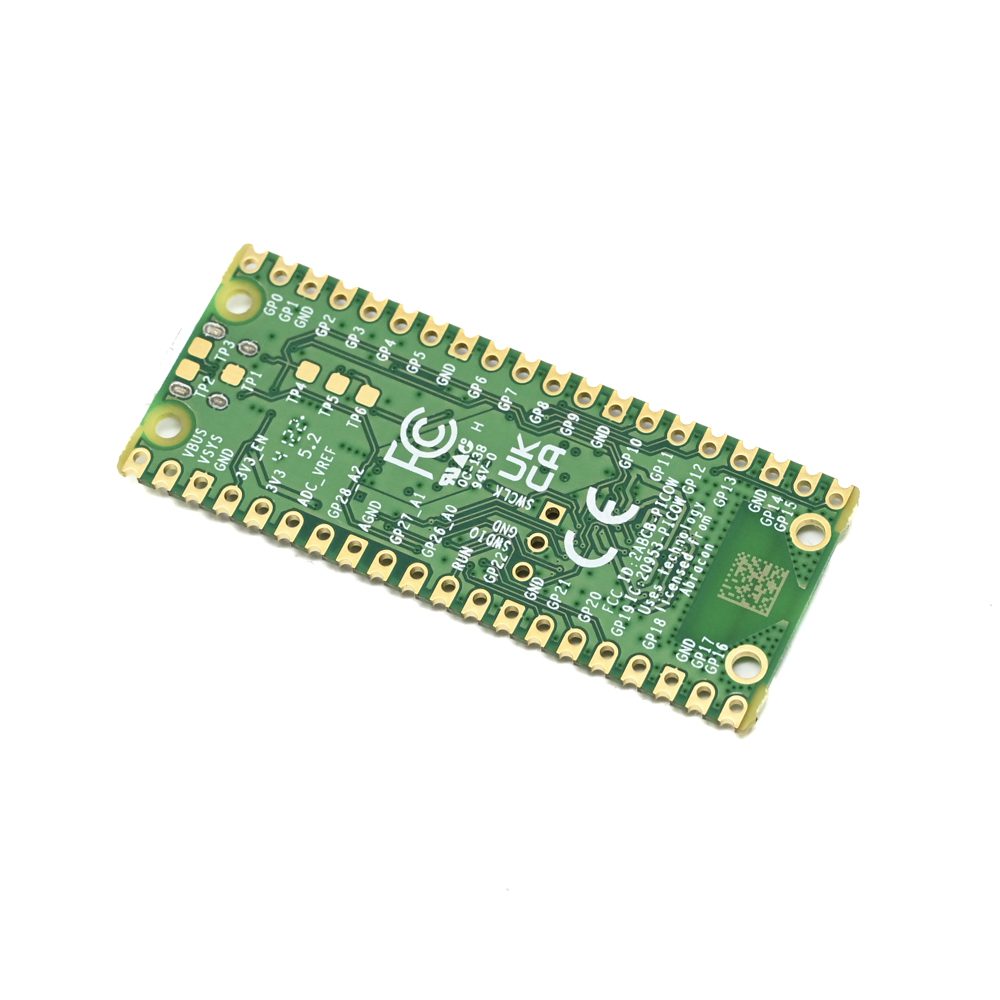

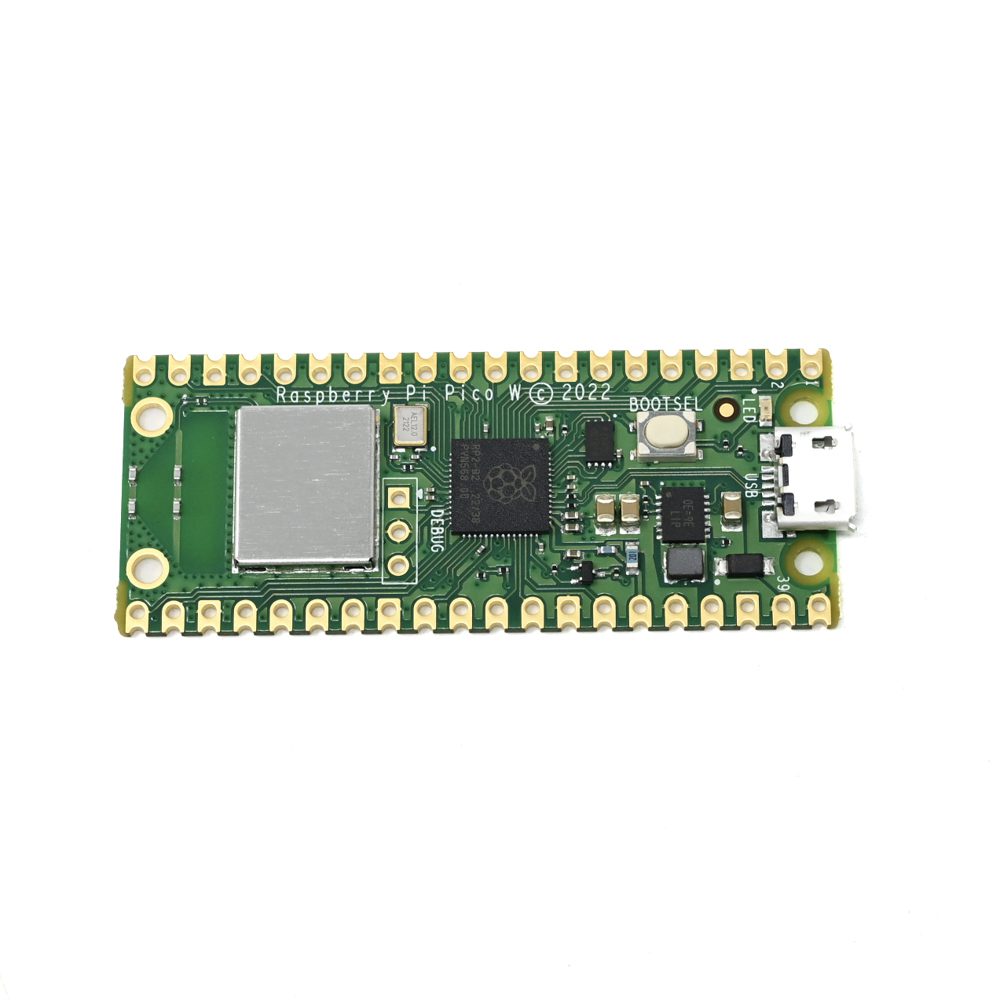

SPIDER Automation Raspberry Pi Pico W Wireless Microcontroller Board | RP2040 with 2.4GHz Wi-Fi
Description
SPIDER Automation Raspberry Pi Pico W elevates the immensely popular Pico lineup by introducing built-in wireless networking, transforming a standard microcontroller into a complete, connected IoT (Internet of Things) solution. At its core, the Pico W retains the powerful RP2040 microcontroller designed by the Raspberry Pi Foundation, featuring a flexible dual-core ARM Cortex-M0+ processor running up to 133 MHz, 264KB of high-performance SRAM, and 2MB of onboard QSPI flash memory.
By integrating an onboard Infineon CYW43439 wireless chip supporting 2.4GHz 802.11 b/g/n wireless LAN, the Pico W allows developers to connect projects directly to local networks and cloud platforms without requiring bulky external shields or modules. Retaining the exact 21mm x 51mm “DIP” style form factor, castellated edge pins for surface mounting, and the familiar 40-pin layout of its predecessor, it ensures seamless compatibility with existing carrier boards, breadboards, and expansion hardware while unlocking limitless wireless automation potential.
Key Features
- RP2040 Microcontroller Core: Custom dual-core ARM Cortex-M0+ 32-bit processor running at flexible clock speeds up to 133 MHz.
- Onboard Wireless LAN: Integrated Infineon CYW43439 chip providing single-band 2.4GHz IEEE 802.11 b/g/n wireless connectivity.
- Optimized Memory Allocation: 264KB of multi-bank high-performance SRAM paired with 2MB of onboard QSPI flash storage.
- Castellated Edge PCB Design: 1mm thick 40-pin board with edge castellations allowing direct surface-mounting onto custom carrier boards.
- Comprehensive I/O Peripherals: Exposes 26 multi-function 3.3V GPIO pins (including 23 digital-only lines and 3 analog ADC-capable pins).
- Flexible Power Architecture: Supports multiple power supply options via micro-USB, external power supplies, or batteries.
- Developer Friendly: Comprehensive SDK, software support for C/C++ and MicroPython, and drag-and-drop mass storage programming over USB.
- Debugging Support: Dedicated 3-pin ARM Serial Wire Debug (SWD) port for advanced hardware troubleshooting.
Benefits
- Seamless IoT Integration: Easily connect embedded projects to Wi-Fi networks for remote monitoring, data logging, and cloud control.
- Exact Form-Factor Compatibility: Drop-in replacement for standard Raspberry Pi Pico setups without needing enclosure or PCB redesigns.
- Cost-Effective Connectivity: Professional-grade wireless microcontroller performance delivered at an accessible price point.
- Versatile Ecosystem: Backed by extensive documentation, community libraries, and versatile programming options.
Applications
- Smart Home Automation: Building wireless wall switches, smart lighting controllers, and IoT appliance monitors.
- Remote Environmental Sensors: Deploying wireless weather stations or greenhouse monitors transmitting data over local Wi-Fi networks.
- Industrial IoT (IIoT) Gateways: Interfacing factory machinery sensors with local server dashboards or cloud logging systems.
- Wireless Robotics: Controlling mobile robotic platforms and smart RC cars remotely via web servers or socket communication.
Package Includes
- 1 x SPIDER Automation Raspberry Pi Pico W Wireless Microcontroller Board
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Brand / Series | SPIDER Automation / Raspberry Pi Pico Range |
| Item / Board Type | Wireless Microcontroller Development Board (IoT SBC) |
| Model Order Code / SKU | Raspberry Pi Pico W / SKU-SPIDER-RPI-PICO-W |
| Main Microcontroller Chip | RP2040 Designed by Raspberry Pi Foundation |
| Wireless LAN Module | Infineon CYW43439 (2.4GHz IEEE 802.11b/g/n Wireless LAN) |
| Core Processor Architecture | Dual-Core ARM Cortex-M0+ 32-bit processor |
| System Clock Speed | Flexible clock running up to 133 MHz (On-chip PLL) |
| On-Chip SRAM Memory | 264 KB multi-bank high-performance SRAM |
| Onboard Flash Storage | 2 MB QSPI Flash Memory |
| Power & Data Interface | Micro-USB B Port (Supports power, data, and drag-and-drop programming) |
| General Purpose I/O (GPIO) | 26 Multi-function 3.3V GPIO Pins (23 Digital-only, 3 ADC capable) |
| Board Form Factor & Dimensions | DIP Style PCB, 21 mm × 51 mm × 4 mm (1mm thick PCB with castellated edges) |
| Debugging Interface | 3-Pin ARM Serial Wire Debug (SWD) Port |
| Supported Programming Languages | C / C++ and MicroPython via official SDK |
| Package Shipping Weight | 0.02 kg (20 g) |
| Package Shipping Dimensions | 7 cm × 4 cm × 2 cm |
