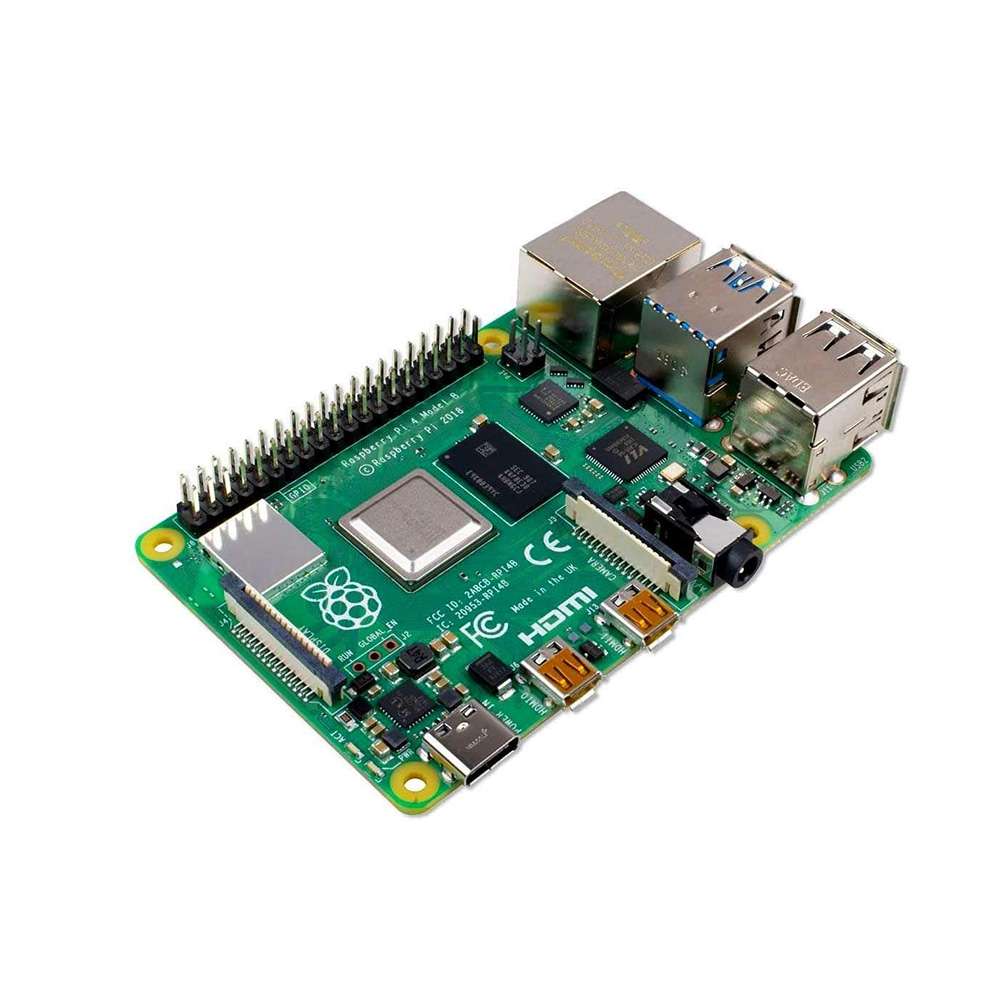

SPIDER Automation Raspberry Pi 4 Model B 8GB RAM | Quad-Core SBC & High-End Desktop Workstation
Description
SPIDER Automation Raspberry Pi 4 Model B (8GB RAM) is the flagship, highest-capacity variant in the world-renowned Raspberry Pi lineup, designed for advanced users, developers, and industrial engineers who demand uncompromising performance. Powered by the 64-bit Broadcom BCM2711 quad-core Cortex-A72 processor operating at 1.5GHz and paired with an expansive 8GB of high-speed LPDDR4 SDRAM, this board bridges the gap between single-board computers and traditional desktop workstations.
To accommodate the power requirements of the high-density 8GB memory package, the board layout features an optimized power management architecture with relocated switch-mode power regulators near the USB-C input. Retaining all hallmark features—including dual 4K micro-HDMI outputs, true Gigabit Ethernet, dual USB 3.0 ports, Bluetooth 5.0, and complete 40-pin HAT compatibility—the Raspberry Pi 4 8GB delivers ultimate flexibility for heavy computational tasks, server hosting, and edge automation.
Key Features
- Broadcom BCM2711 SoC: Quad-core 64-bit ARM Cortex-A72 processor clocked at 1.5GHz for exceptional execution speeds.
- 8GB LPDDR4 SDRAM: Massive system memory capacity allowing simultaneous heavy applications, heavy compilation, and local server hosting.
- Optimized Power Architecture: Redesigned onboard power delivery layout specifically engineered to handle peak currents for the 8GB memory package.
- Dual 4K Micro-HDMI Output: Connect up to two independent displays at resolutions up to 4K at 60Hz with H.265 hardware decode support.
- True Gigabit Ethernet: High-speed wired networking controller delivering unthrottled local network performance.
- Dual-Band Wi-Fi: Integrated 802.11 b/g/n/ac wireless LAN supporting both 2.4GHz and 5GHz bands with reduced interference.
- Bluetooth 5.0 Support: Upgraded wireless peripheral connectivity offering 4x range and 2x speed over previous generations.
- USB 3.0 Integration: Two USB 3.0 ports alongside two USB 2.0 ports for rapid data exchange with external hard drives.
- USB-C Power Interface: Modern 5V/3A power input supporting higher current delivery to power connected accessories safely.
- Standard 40-Pin GPIO Header: Fully backwards-compatible low-level pinout supporting all standard industrial and hobbyist HATs.
Benefits
- Heavy-Duty Multi-Tasking: The 8GB RAM pool eliminates memory bottlenecks during intensive coding, compiling, and data analysis tasks.
- Advanced Server & Container Host: Ideal for running Docker containers, Kubernetes nodes, home automation servers, and relational databases.
- PC-Level Capabilities: Easily replaces traditional desktop computers for daily web browsing, document management, and media production.
- Reliable High-Speed Networking: Dual-band Wi-Fi and fast Gigabit Ethernet eliminate network congestion in demanding environments.
- Future-Proof Performance: Maximizes software compatibility and headroom for upcoming resource-heavy Linux applications and operating systems.
Applications
- Local Server & Cloud Storage: Deploying high-performance personal cloud storage nodes, media servers, and Pi-hole network filters.
- Industrial Edge Computing: Managing complex industrial automation gateways, data loggers, and real-time telemetry systems.
- Dual-Screen Workstations: Setting up compact desktop productivity stations with dual 4K monitor support.
- Software Development & Testing: Compiling native code, testing containerized microservices, and running local development environments.
- Embedded Prototyping & Robotics: Interfacing physical sensors, actuators, and high-resolution camera modules using the GPIO headers.
Package Includes
- 1 x Raspberry Pi 4 Model B (8GB RAM) Single Board Computer
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Raspberry Pi 4 Range |
| Item Type | Single Board Computer (SBC) |
| Model Order Code / SKU | Raspberry Pi 4 Model B (8GB) / SKU-SPIDER-RPI-4B-8GB |
| Processor (SoC) | Broadcom BCM2711, Quad-Core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz |
| System RAM Memory | 8 GB LPDDR4 SDRAM |
| Graphics Processing Unit | Broadcom VideoCore VI, OpenGL ES 3.0 support |
| Wireless Networking | Dual-Band 2.4GHz & 5GHz IEEE 802.11.b/g/n/ac Wi-Fi, Bluetooth 5.0 |
| Wired Network Interface | Gigabit Ethernet (Supports PoE via optional PoE HAT) |
| General-Purpose I/O | Standard 40-Pin GPIO Header (Fully HAT compatible) |
| Video & Display Outputs | 2 × Micro-HDMI Ports (Supports up to 4Kp60 dual display) |
| Camera & Display Connectors | 2-Lane MIPI CSI Camera Port & 2-Lane MIPI DSI Display Port |
| USB & Storage Interfaces | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports, MicroSD Card Slot |
| Audio Interface | 4-Pole Stereo Audio & Composite Video Jack, HDMI Audio Out |
| Power Requirements | 5V / 3A DC Input via USB Type-C Connector |
| Board Physical Dimensions | 85 mm × 56 mm × 17 mm |
| Package Shipping Weight | 0.06 kg (60 g) |
| Package Shipping Dimensions | 10 cm × 6 cm × 2 cm |
