Description

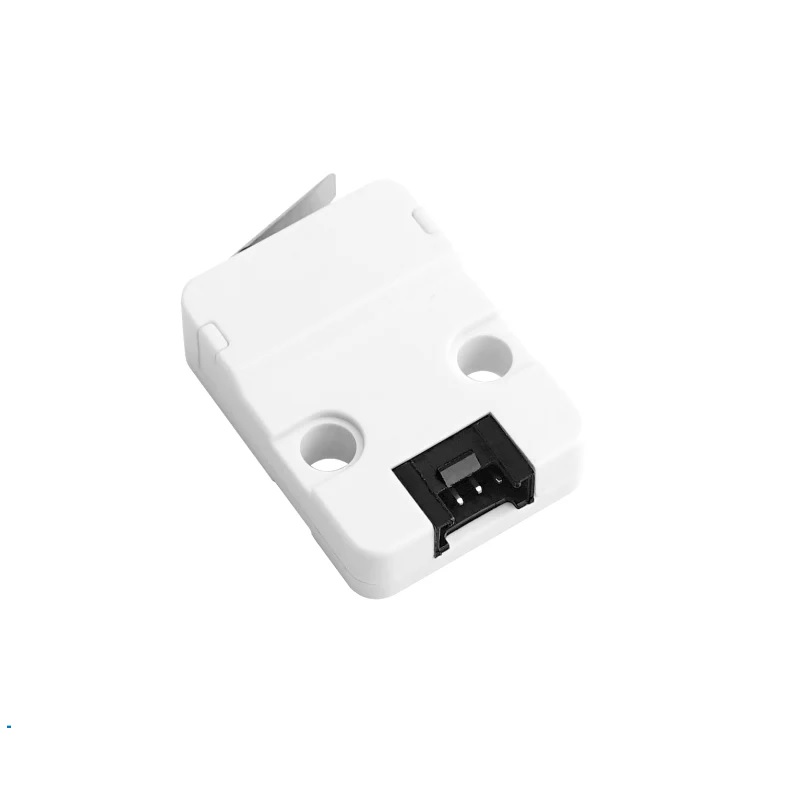

The Unit Limit is a highly reliable contact limit switch sensor specifically engineered for industrial and precision mechanical applications. It serves as an essential component for detecting position or motion limits, providing a seamless transition in digital signals whenever the switch bar is pressed. By shifting from a logical 3.3V to 0V, this sensor delivers an instantaneous and clean trigger signal to your microcontroller (MCU) or peripheral electronic systems.
Designed for versatility and durability, the Unit Limit is widely applied in various mechanical equipments to achieve robust limit protection. Its compact footprint, combined with support for multiple installation methods, allows for easy integration into space-constrained projects. Whether you are building an automated production line, a DIY robotics project, or advanced IoT machinery, this sensor provides the dependable performance needed to maintain operational safety and precision.
Features
- Contact Limit Switch: Robust design for reliable mechanical limit detection.
- Long Durability: Engineered for a long service life with a lifetime of up to 400,000 operations.
- Versatile Installation: Supports multiple mounting methods for easy integration into diverse setups.
Package Includes
- 1 x Unit Limit
- 1 x HY2.0-4P Cable (20cm)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | General Limit Switch |
| Operating Voltage | 5V DC |
| Operating Current | 3mA |
| Standby Current | 2mA |
| Output Signal | 3.3V DC (Logical) |
| Mechanical Lifetime | 400,000 Times |
| Product Dimensions | 37 × 24 × 9.5 mm |
| Net Weight | 6.3 g |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 10 × 9 × 1 cm |
