Description

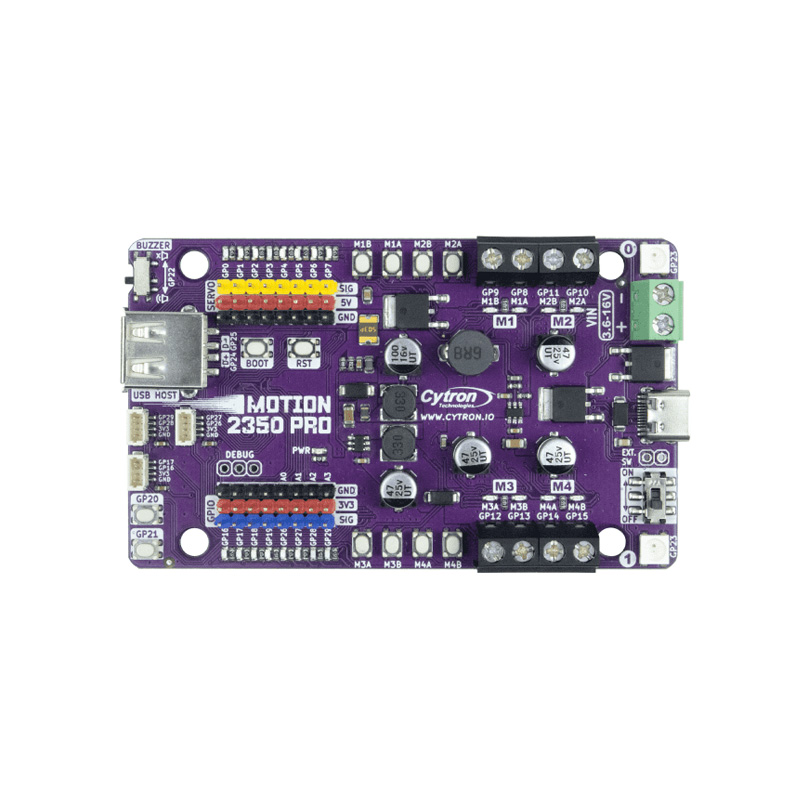

The Motion 2350 Pro is an advanced, multi-axis motion control platform designed for high-precision industrial prototyping and autonomous mechatronic systems. Capable of independently driving up to 4 brushed DC motors with a robust 3A capacity per channel, this controller is the ideal foundation for omnidirectional platforms, such as mecanum-wheeled robotic systems, and complex multi-linkage automation.
Engineered for versatility, the Motion 2350 Pro serves as a centralized hub for your robotics architecture. Beyond its motor driving capabilities, it features a comprehensive I/O suite including 8-channel 5V servo ports, an 8-channel GPIO breakout, and 3 dedicated Maker Ports for peripheral sensor integration. With its high-performance Dual-core Arm Cortex-M33 processor and direct USB host functionality for gamepad/joystick input, the Motion 2350 Pro enables rapid, plug-and-play development for sophisticated motion control tasks.
Note: Product images are for reference only. Ensure proper thermal management when operating at peak current loads.
Key Features
- 4-Channel DC Motor Control: Independent drive capability for four brushed DC motors (up to 3A per channel), perfect for multi-wheel or multi-axis platforms.
- Integrated I/O Architecture: Includes 8-channel servo ports and an 8-channel GPIO breakout for extensive peripheral and sensor connectivity.
- High-Performance Processing: Powered by a Dual-core Arm Cortex-M33 processor running at 150 MHz for low-latency motion calculation.
- USB Host Connectivity: Integrated USB Type-C host port allows for direct plug-and-play interfacing with joysticks, gamepads, and other input devices.
- Expandable Design: Equipped with 3 Maker Ports to facilitate modular expansion and rapid integration of specialized industrial components.
- Wide Voltage Range: Supports flexible power input from 3.6V to 16V, catering to various battery chemistries and power delivery systems.
Benefits
- System Centralization: Replaces multiple discrete controllers with a single high-performance board, reducing wiring complexity and assembly time.
- Advanced Maneuverability: Specifically optimized for complex kinematics, such as mecanum drive systems, requiring precise multi-motor synchronization.
- Rapid Prototyping: The intuitive I/O breakout and USB host capability allow for immediate testing and iteration of automated platforms.
- Computational Power: Dual-core architecture ensures stable performance even when executing complex motion algorithms and sensor feedback loops.
- Professional Scalability: Industrial-grade ports and expandability options provide a robust upgrade path for evolving engineering projects.
Applications
- Autonomous Robotics: Drive system for omnidirectional platforms, delivery robots, and heavy-duty automated vehicles.
- Precision Mechatronics: Coordinated control of robotic limbs, industrial manipulators, and multi-axis automated jigs.
- Industrial Automation: Reliable motion control for custom laboratory actuators, sorters, and high-precision inspection rigs.
- Embedded Motion Control: Ideal for developers requiring a powerful, centralized controller for sophisticated, sensor-rich mechatronic environments.
Package Includes
- 1 x Motion 2350 Pro 4-Channel DC Motor Driver Controller
Specifications
| Parameter | Specification |
|---|---|
| Processor | Dual-core Arm Cortex-M33 |
| Operating Voltage (Vin) | 3.6V – 16V DC |
| Clock Speed | 150 MHz |
| Internal RAM | 520 KB |
| Flash Memory | 2 MB |
| Max Current Range | 3A (Continuous) / 5A (Peak) |
| Connectivity | USB Type-C |
| GPIO Ports | 8-Channel Breakout |
| Servo Ports | 8-Channel (5V) |
