Description

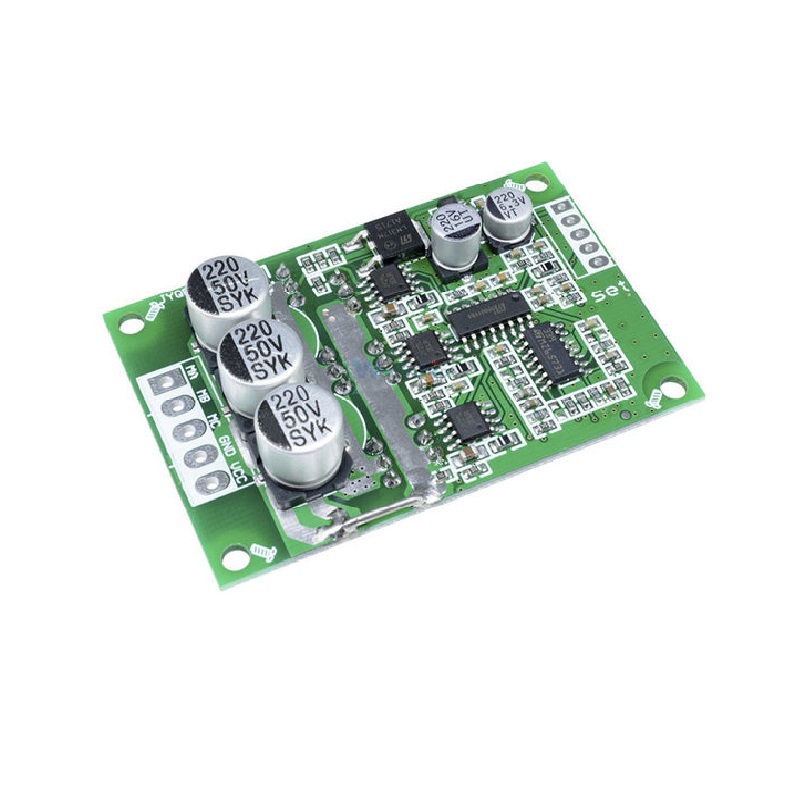

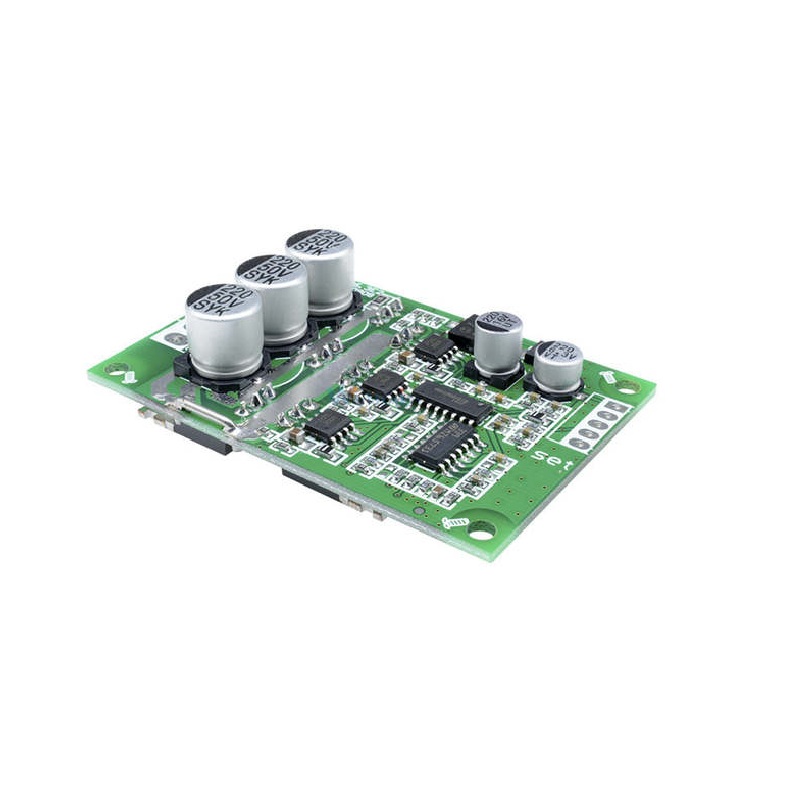

This Brushless Motor Controller DC 12-36V 500W PWM Driver Board is used for 3-phase brushless sensorless motors. While optimized for a broad range of motors, certain models may require fine-tuning: if the driving effect is suboptimal (such as starting jitter, reversing issues, excessive no-load current, unstable speed, low efficiency, or failure to start under load), users can adjust the onboard resistance and capacitance values to achieve peak performance.
Specifications & Key Features
- Active Protections: Equipped with overload protection, locked-rotor protection, and over-current protection.
- Analog Voltage Speed Regulation: Supports smooth 0 to 5V analog control.
- Operating Temperature Span: Designed to function reliably from -40℃ up to +85℃.
- Drive Power Capacity: Delivers up to 500W (strictly dependent on working voltage and motor specs).
- Dual Speed Control Modes: Supports external voltage regulation or single-chip microcomputer PWM speed governance.
Pin & Port Configuration
- Control Port (2.54mm pitch):
- 5V: Driver board internal output voltage (strictly reserved for onboard potentiometers/switches; do not power external devices).
- Signal: Motor speed pulse signal output port (5V push-pull output, max current <5mA).
- Z/F: Rotating direction control. Connect to 5V / leave open for Forward; connect to 0V / GND for Reverse.
- VR: Speed control port. Accepts 0.1V–5V analog linear voltage (20K input resistance) or GND-connected PWM (1–20kHz, 0–100% duty cycle).
- GND: Internal control ground.
- Power Port (3.96mm pitch):
- MA, MB, MC: Motor phase A, B, and C connections.
- GND / VCC: DC Power Negative (-) and Positive (+) terminals.
Important Application Notes & Installation Guidelines
- Parameter Matching: Ensure motor voltage and power parameters never exceed the board’s specified limits.
- Thermal Management: This JYQD-V6.3E2 unit is a bare board. Motors under 60W require no heatsink (only good ventilation and insulation), whereas motors exceeding 100W must be paired with an appropriate external heatsink and proper MOSFET insulation.
- Polarity Warning: The board features no anti-reverse connection protection. Reversing the power polarity will permanently destroy the circuit board.
- Wiring Distance: Use shielded wires if the driver board is positioned more than 50 cm away from the motor to prevent abnormal operating behavior.
Applications
- High-Speed Cooling & Exhaust Systems: Precision PWM speed control for industrial blowers, wind tunnels, and heavy-duty equipment cooling fans.
- Automated Conveyor & Roller Drives: Smooth brushless motor governance for automated assembly lines, sorting tracks, and material handling belts.
- Laboratory Pumps & Centrifugal Agitators: High-efficiency rotational control for medical fluid pumps, chemical mixers, and laboratory centrifuges.
- Robotics Traction & Automated Guided Vehicles (AGVs): Reliable drive electronics for heavy mobile robotic platforms, autonomous carts, and service robots.
- Specialized Rotary Machinery & Jigs: Variable-speed driving solutions for custom winding machines, engraving spindles, and automated test fixtures.
Package Includes
- 1 x Brushless Motor Controller DC 12-36V 500W PWM Driver Board (JYQD-V6.3E2)
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | 3-Phase Brushless Sensorless Motor Driver Board |
| Controller Model / Board | JYQD-V6.3E2 |
| Operating Voltage Range | DC 12V to 36V |
| Max Drive Power Capacity | Up to 500 W (Voltage-dependent) |
| Speed Control Inputs | 0–5V Analog Voltage or 1–20kHz PWM (0–100% Duty Cycle) |
| Signal & Control Features | Z/F Direction Control, 5V Pulse Speed Output Signal (<5mA) |
| Safety & Circuit Protection | Overload, Locked-Rotor, and Over-Current Protection |
| Operating Temperature | -40℃ to +85℃ |
| Port Pin Pitches | Control Port: 2.54 mm | Power Port: 3.96 mm |
| Physical Form Factor | Bare Board Layout (Requires heatsink for motors >100W) |
