Description

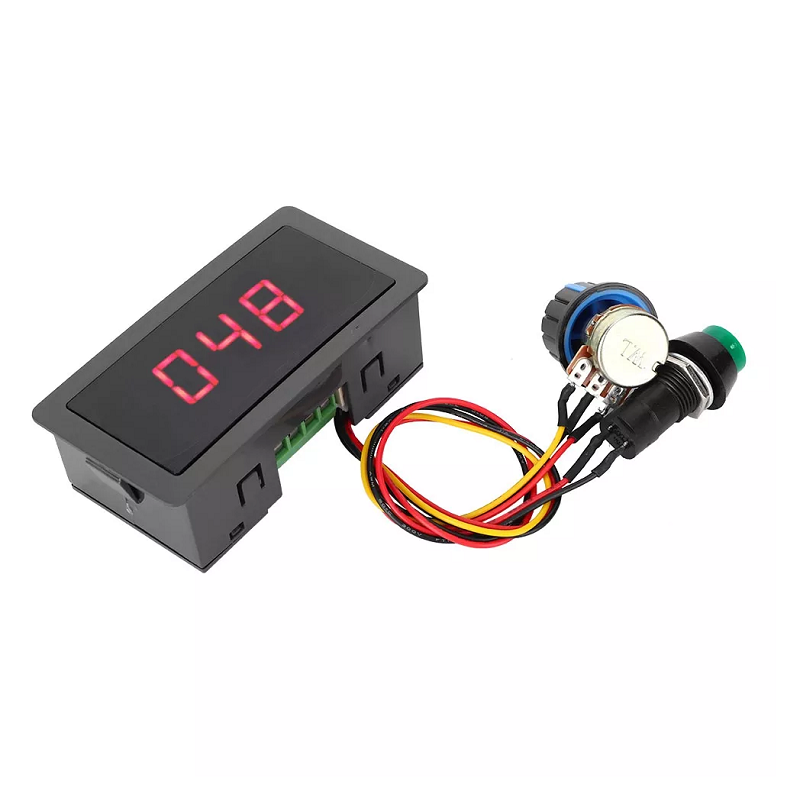

This CCM5D Digital PWM DC Motor Speed Controller With Display is used to control the speed of a DC motor through Pulse-Width Modulation (PWM). This controller comes with a 3-digit 7-segment red color display, which clearly exhibits the operating duty cycle of the PWM across a precise range from 0 to 100.
Constructed from high-quality, durable ABS material, it combines digital convenience with rugged industrial build quality, ensuring reliable performance in demanding speed-governance tasks.
Key Features
- Industrial-Grade Touch Buttons: Includes a tactile touch button interface allowing operators to easily enter sleep mode or restart work instantly.
- Digital Numerical Display: High-visibility 3-digit red LED screen shows real-time 0–100 numerical values for effortless operation tracking.
- Stepless Speed Regulation: Precision rotary potentiometer knob delivers smooth 0% to 100% adjustment for accurate speed positioning.
- Quiet 16kHz PWM Frequency: Advanced frequency tuning keeps motors running silently at low speeds while retaining full twisting torque force.
- Wide Operating Range: Handles 6V to 24V DC input voltages with a continuous current capacity of up to 8A.
Benefits
- Precise Visual Feedback: Digital display eliminates guesswork, allowing technicians to replicate exact speed settings consistently.
- Energy-Saving Sleep Mode: Quick-toggle touch controls enable idle power reduction without resetting main power switches.
- Enhanced Low-Speed Torque: High-frequency modulation prevents motor stalling and stuttering under heavy low-RPM loads.
Applications
- Automated Laboratory & Analytical Stirrers: Digital speed regulation for precision magnetic chemical stirrers, sample centrifuges, and liquid mixing apparatus.
- Precision Optical & Camera Scanners: Smooth, display-monitored rotational speed control for automated photography turntables and inspection scanning heads.
- Medical Diagnostic & Dispensing Devices: Exact RPM governance for automated fluid metering pumps, syringe drivers, and sample tray rotators.
- Industrial Conveyor & Feed Regulators: Real-time speed adjustment for small auxiliary material handling belts, packaging diverters, and labeling feeds.
- Prototyping & Benchtop Test Consoles: Essential digital control module for testing DC gearmotors, actuator response curves, and variable-load electrical rigs.
Package Includes
- 1 x CCM5D Digital PWM DC Motor Speed Controller With Display
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | Digital PWM Speed Regulator / Motor Governor |
| Model Part | CCM5D |
| Operating Voltage Range | 6V to 24V DC |
| Max Operating Current | Up to 8.0 A |
| PWM Frequency | 16 kHz (Low noise & high low-speed twisting force) |
| Speed / Duty Cycle Range | 0% to 100% (Stepless adjustment via knob) |
| Display Interface | 3-Digit 7-Segment Red LED Digital Readout |
| Control Interface | Industrial-Grade Touch Buttons & Rotary Potentiometer |
| Enclosure Material | High-Quality ABS Plastic |
| Physical Dimensions (L x W x H) | 71 × 40 × 26 mm | Net Weight: ~52g |
| Shipping Dimensions & Weight | 10 × 10 × 4 cm | Shipping Weight: 0.057 kg |
