Description
The 20A PWM DC Motor Speed Regulator Module (9V, 12V, 24V, 36V, 48V, 60V) is suitable for DC brushed motors or heavy DC loads within 20A. It comes equipped with a rugged metal shell and precise connective labels, making it exceptionally easy to install and safely deploy in demanding commercial and industrial environments.

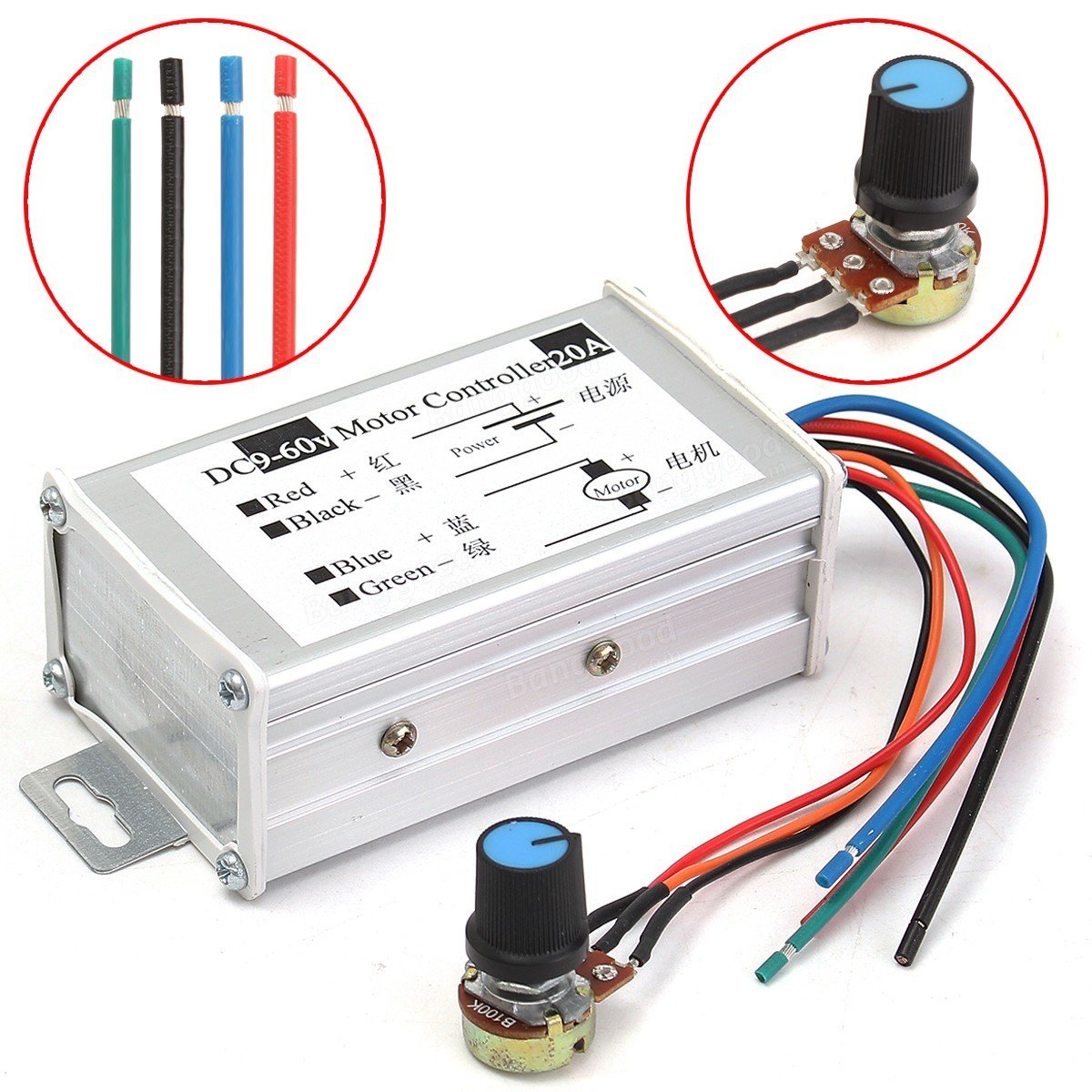

The unit features a precision rotary potentiometer with an integrated speed adjustment switch and a secondary button switch function for seamless operational control. Operating at an optimized 25KHz PWM frequency, it ensures highly efficient, low-noise power delivery across a linear load spectrum.

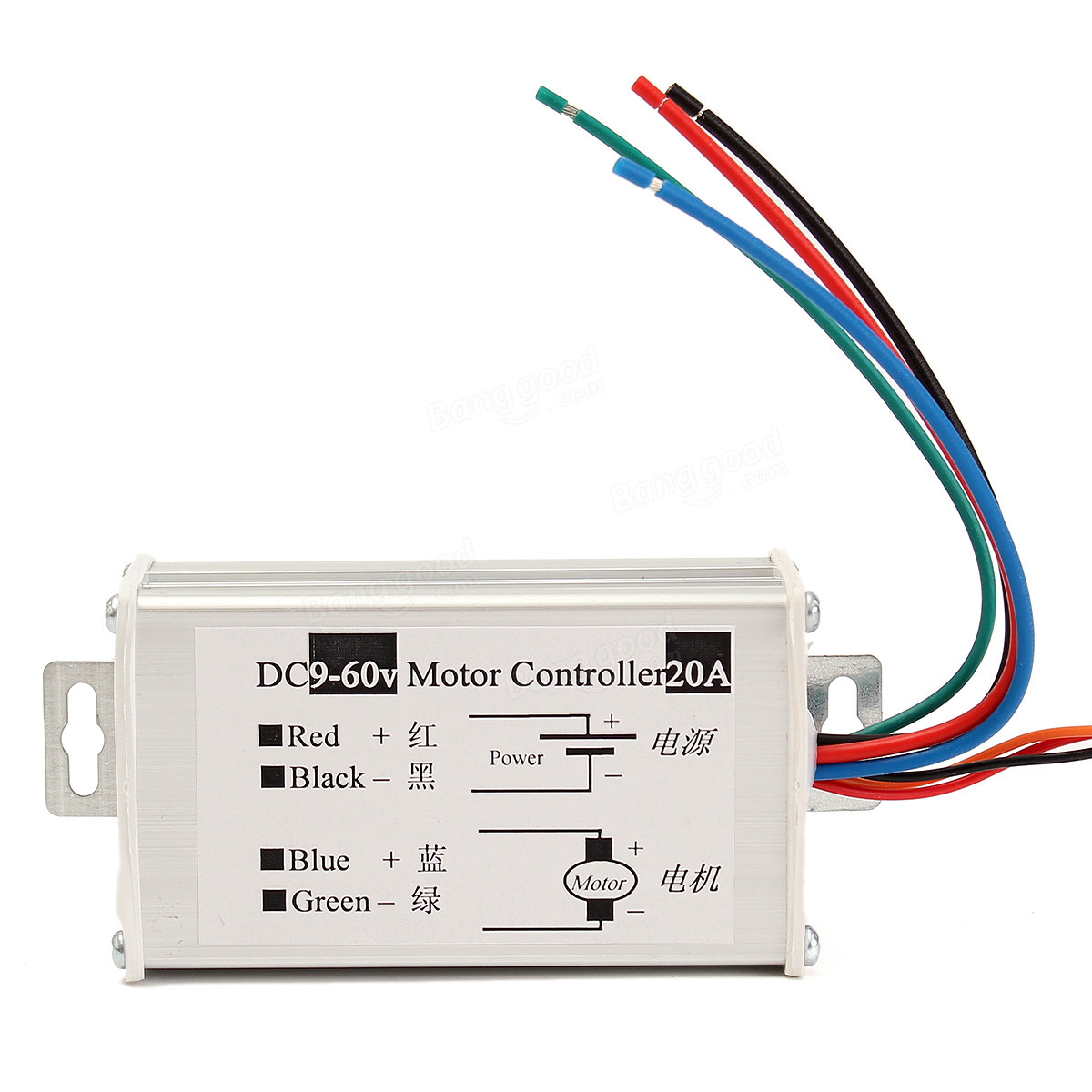

Wiring & Connection Mode
- Red Wire: Power Positive (+)
- Black Wire: Power Negative (-)
- Blue Wire: Motor Positive (+)
- Green Wire: Motor Negative (-)
Note: Always ensure main power is completely turned off before attempting to wire the controller.
Important Warnings & Operating Instructions
- Polarity Warning: DO NOT REVERSE POSITIVE AND NEGATIVE POWER LOADS. Reversing power supply polarity will permanently damage the controller.
- Direction Control: To change the motor rotation direction, simply interchange the positive and negative wires of the motor (Blue and Green lines).
- Operation Steps: 1. Connect wires according to the color-coded wiring diagram. 2. Power on the system. 3. Adjust the rotary potentiometer to scale motor speed.
Key Features
- Wide Operating Voltage: Compatible with 9V, 12V, 24V, 36V, 48V, and 60V DC power systems.
- Massive Power Handling: Delivers up to 1200W of max continuous power output.
- Linear Speed Control: Output voltage remains linear under load with a 0% to 100% adjustable speed range.
- Thermal Protection: Built-in thermal protection safeguards against overheating during prolonged heavy-duty operations.
- Motor Condition Control: Built-in mechanism for Forward / Stop / Reverse operation handling.
- Robust Protection: Includes reverse polarity protection on power input lines alongside clean 25KHz PWM switching frequency.
Benefits
- Industrial-Grade Durability: Solid metal protective housing shields internal electronic components from physical damage and ambient workshop debris.
- High Torque Maintenance: Advanced high-frequency PWM switching ensures the driven motor retains high torque even when operating at reduced RPMs.
- Plug-and-Play Installation: Pre-labeled wiring lines and external panel-mount potentiometer configuration cut down setup time significantly.
Applications
- Automated Conveyor & Material Handling Systems: Precise speed governance for commercial packaging belts, assembly line rollers, and sorting logistics tracks.
- Industrial Mixing & Agitation Equipment: High-power speed adjustment for chemical batch mixers, food processing vats, and liquid stirring machinery.
- Heavy-Duty CNC & Milling Auxiliary Rigs: Spindle or auxiliary cooling pump speed regulation on custom metalworking and woodworking cutting tables.
- Commercial Cleaning & Maintenance Vehicles: Drive and traction motor speed control for automated floor scrubbers, industrial sweepers, and electric utility carts.
- Agricultural Automation & Feeders: Speed control for automated livestock feeding augers, greenhouse ventilation winches, and crop processing machinery.
Package Includes
- 1 x 20A PWM DC Motor Speed Regulator Module (9V-60V)
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | PWM Speed Regulator / Heavy-Duty Motor Controller |
| Driver Model | 20A PWM DC Motor Speed Regulator Module |
| Operating Voltage Range | 9V to 60V DC (Supports 9V, 12V, 24V, 36V, 48V, 60V rails) |
| Continuous Current Rating | 18.0 A |
| Peak Current Rating | 20.0 A |
| Max Continuous Power Capacity | 1200 W |
| PWM Frequency | 25 kHz |
| Speed Adjustment Range | 0% to 100% (Linear under load) |
| Control Features | Potentiometer Speed Adjust, Power Switch, Forward/Stop/Reverse |
| Safety Protections | Reverse Polarity Protection (Power Input) & Thermal Protection (Yes) |

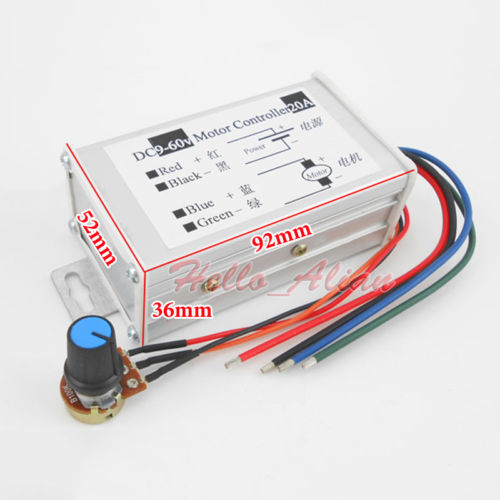

| Enclosure Material | Protective Industrial Metal Shell with Clear Labels |
| Number of Channels | 1 Channel |
