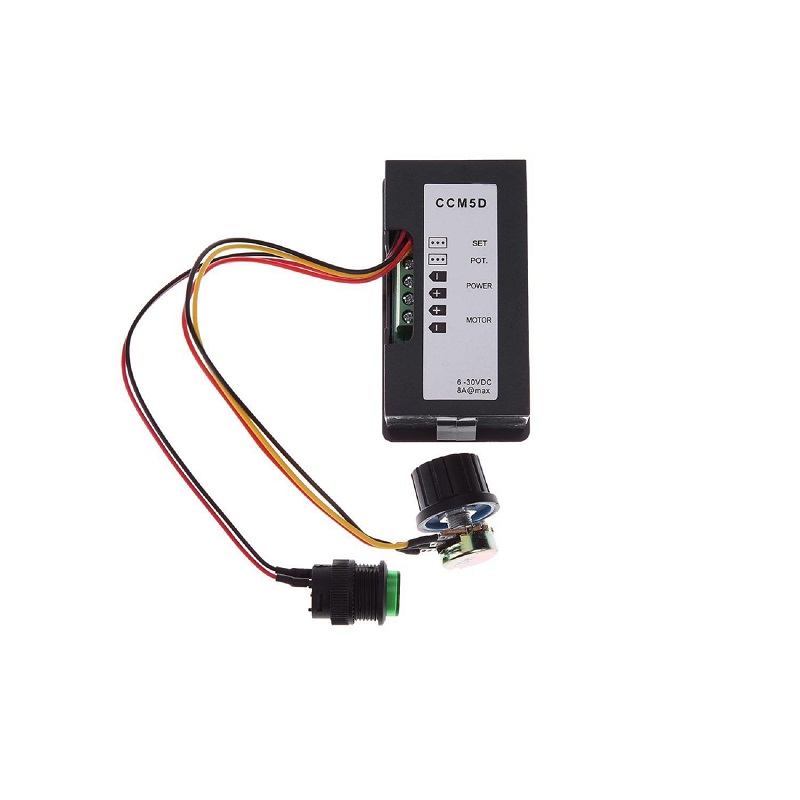

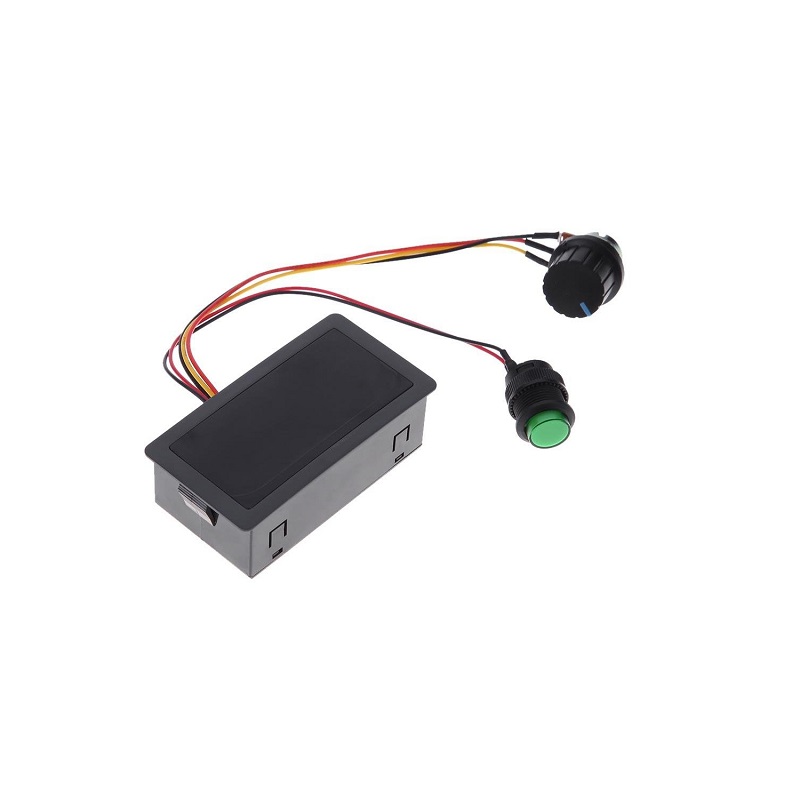

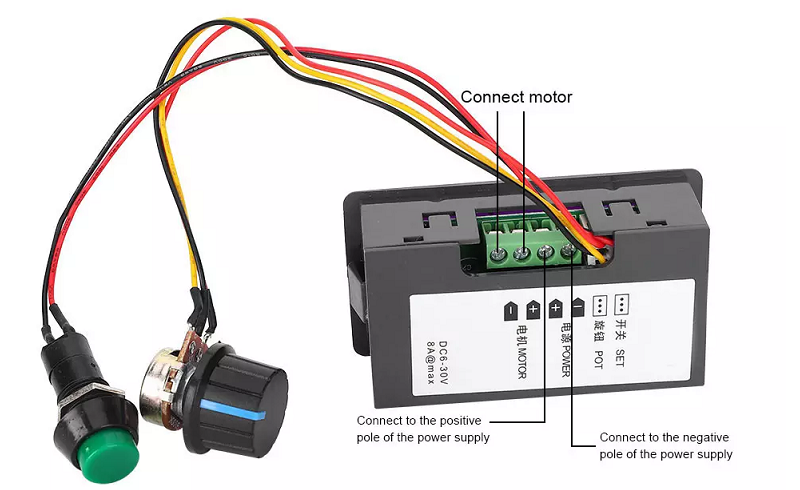

SPIDER Automation CCM5D Digital PWM DC Motor Speed Controller | 6–30V 8A | Displayed 0–100% PWM Control
Description
The SPIDER Automation CCM5D Digital PWM DC Motor Speed Controller is a compact electronic speed regulator designed for controlling the speed of compatible DC motors through pulse-width modulation (PWM). It combines adjustable PWM control with an integrated digital display, providing a convenient interface for monitoring and setting the motor-control duty cycle.

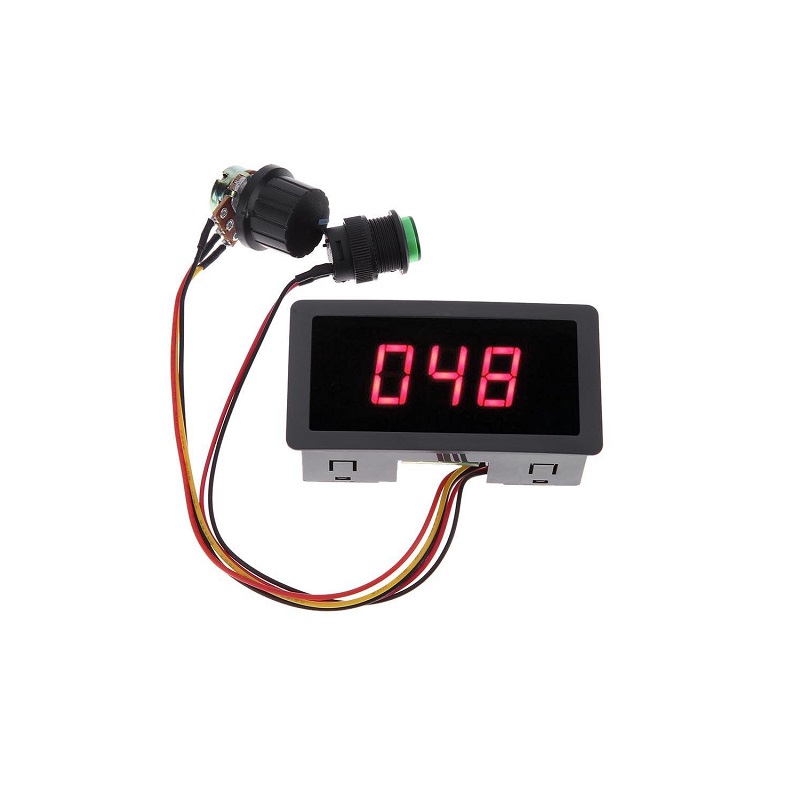

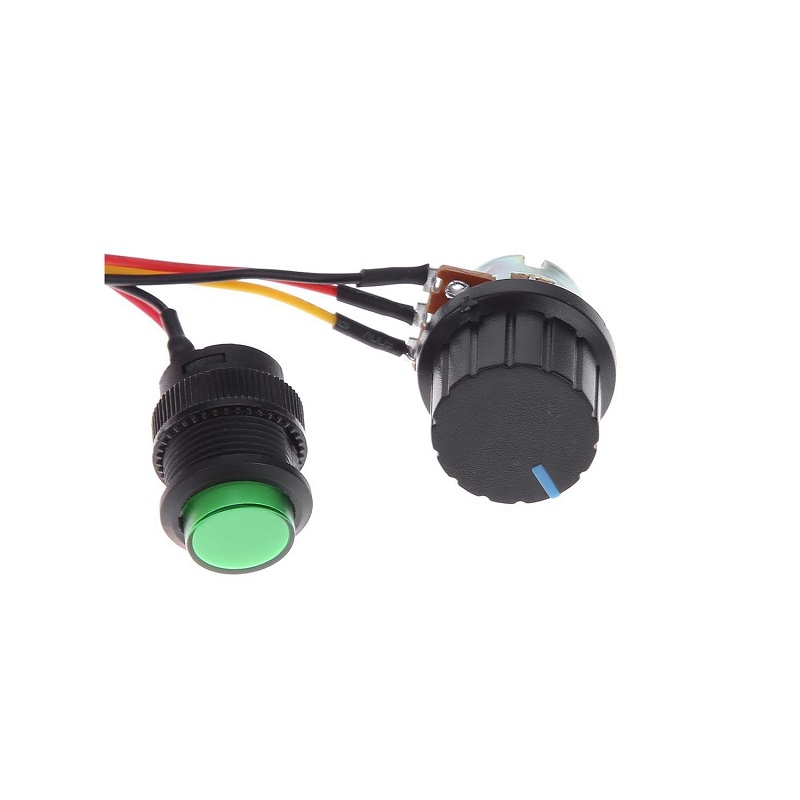

The controller features a 3-digit red 7-segment display that indicates the PWM duty-cycle value from 0 to 100. A front-panel adjustment knob provides continuous speed/duty-cycle positioning across the 0–100% range, allowing the motor speed to be adjusted smoothly without fixed steps.
With a specified operating range of 6–30V DC and current capacity of up to 8A, the CCM5D can be integrated into a variety of DC motor-control systems. Its 16kHz PWM frequency is designed for quiet motor operation at lower speeds while maintaining the motor’s available torque characteristics.
The controller also incorporates industrial-grade touch buttons. The touch interface can be used to place the controller into a sleep state and reactivate normal operation, providing convenient control when the motor system is not continuously required.
The controller is housed in an ABS construction, providing a compact and durable format for embedded equipment, motor-control panels and other DC motor speed-regulation applications.
Key Features
- Digital PWM Motor Control: Controls compatible DC motor speed by varying PWM duty cycle.
- 3-Digit Digital Display: Integrated red 7-segment display provides a clear numerical PWM indication.
- 0–100 Display Range: Displays PWM duty-cycle values across the complete 0–100 range.
- 6–30V DC Operation: Supports a wide DC operating-voltage range.
- 8A Current Capacity: Supports operating current up to 8A according to the supplied specification.
- 16kHz PWM Frequency: Provides high-frequency PWM motor-speed control.
- Stepless Adjustment: Rotary knob provides continuous 0–100% adjustment.
- Speed Positioning: Knob adjustment facilitates repeatable positioning of the required speed/duty-cycle setting.
- Touch Button Interface: Uses industrial-grade touch buttons for convenient operation.
- Sleep Function: Touch control can place the controller into a sleep state and restart normal operation when activated again.
- ABS Construction: Uses ABS material for the controller enclosure.
- Compact Form Factor: Measures approximately 80 × 40 × 25mm for convenient equipment integration.
Benefits
- Visual PWM Monitoring: The integrated display makes the selected PWM duty-cycle value immediately visible.
- Smooth Speed Adjustment: Continuous knob control enables precise adjustment rather than fixed speed steps.
- Wide Supply Compatibility: The 6–30V DC range accommodates a broad range of compatible DC motor systems.
- Convenient User Interface: The combination of rotary adjustment and touch buttons simplifies day-to-day operation.
- Quiet PWM Operation: The 16kHz PWM frequency is designed to support quiet operation at lower motor speeds.
- Compact Integration: The relatively small enclosure is suitable for equipment panels and embedded motor-control assemblies.
Digital Display & Control
- Display Type: 3-digit red 7-segment display.
- Display Value: PWM duty-cycle indication from 0 to 100.
- Adjustment Method: Rotary control knob.
- Adjustment Range: 0–100%.
- Control Method: PWM-based DC motor speed regulation.
- Touch Interface: Industrial-grade touch buttons.
PWM Motor Control
The CCM5D regulates DC motor speed by controlling the PWM duty cycle. Increasing or decreasing the duty-cycle setting changes the effective power delivered to the motor, allowing continuous speed adjustment across the specified control range.
The controller operates at a 16kHz PWM frequency. This high-frequency PWM operation is intended to provide quiet motor operation at lower speeds while maintaining strong available motor torque characteristics.
Applications
- DC Motor Speed Control: Variable-speed control of compatible DC motors.
- Industrial Equipment: Speed adjustment for DC motor-driven machinery and mechanisms.
- Automation Systems: PWM-based speed regulation in embedded automation equipment.
- Motorized Mechanisms: Continuous speed adjustment where visual duty-cycle feedback is useful.
- Control Panels: Compact motor-speed control installations requiring an integrated digital display.
- Embedded Motor Systems: DC motor applications requiring 6–30V operation and up to 8A current capacity.
Package Includes
- 1 × CCM5D Digital PWM DC Motor Speed Controller with Display – Standard Quality
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Digital PWM DC Motor Speed Controller |
| Model | CCM5D |
| Motor Type | DC Motor |
| Control Method | PWM Speed Regulation |
| Voltage Rating | 6–30V DC |
| Operating Voltage | 6–30V DC |
| Current Rating | 8A |
| Maximum Operating Current | Up to 8A |
| PWM Frequency | 16kHz |
| Speed Control Range | 0–100% |
| PWM Duty-Cycle Display | 0–100 |
| Display | 3-Digit Red 7-Segment Display |
| Adjustment Method | Rotary Knob, Stepless Adjustment |
| Adjustment Range | 0–100% |
| Control Buttons | Industrial-Grade Touch Buttons |
| Sleep Function | Supported |
| Material | ABS |
| Product Weight | 50g |
| Shipping Weight | 0.057kg |
| Shipping Dimensions | 7 × 5 × 1cm |
