Description

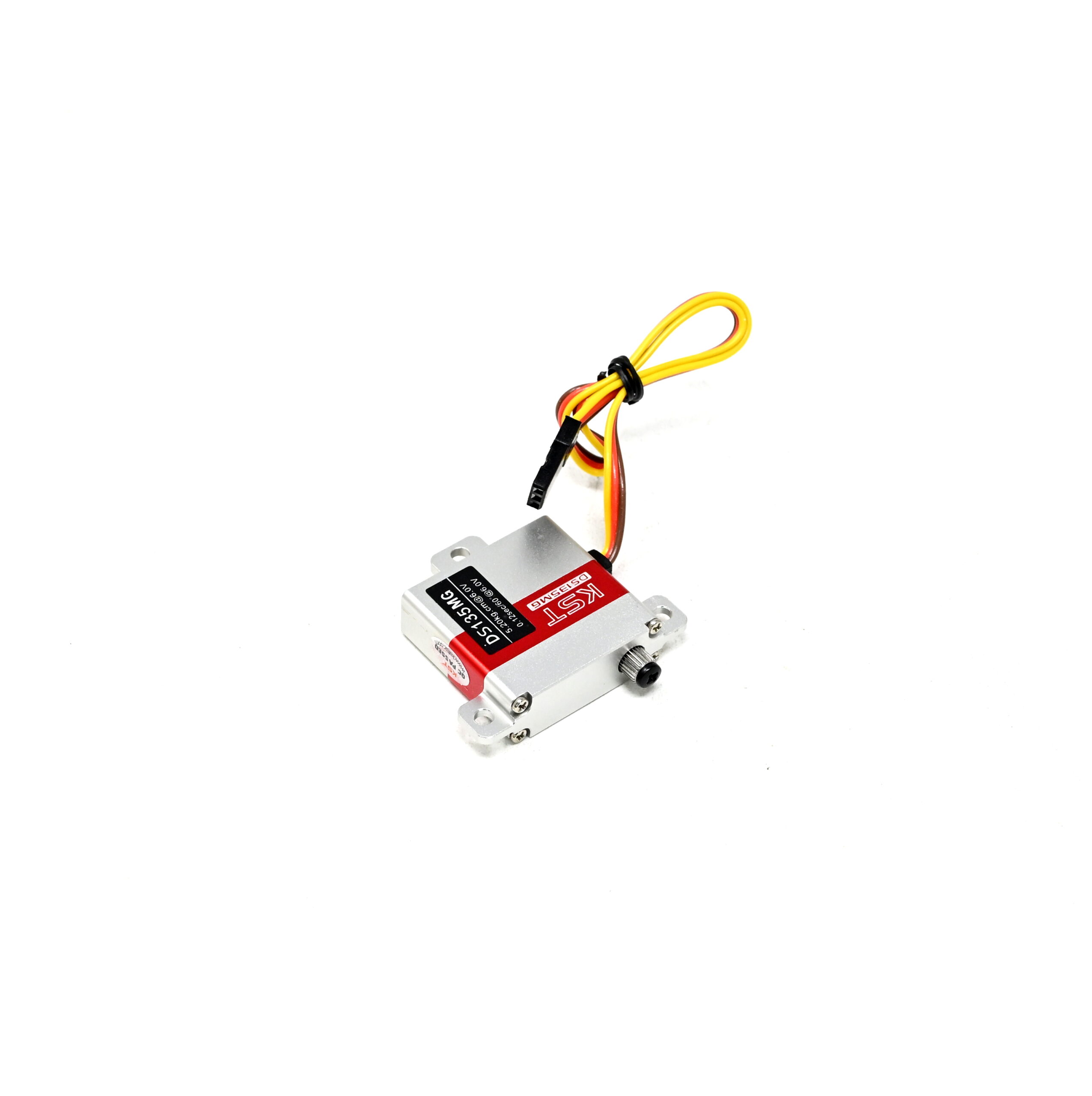

The KST DS135MG is a high-performance digital servo engineered to provide a robust, cost-effective solution for precision motion control in space-constrained environments. With a slim 10mm thickness, this compact actuator is ideally suited for integration into thin-profile wings, automated inspection enclosures, and streamlined robotic instrumentation. Despite its small form factor, it delivers a formidable 5.2kg-cm of torque, rivaling industry-standard actuators in both reliability and operational precision.
Constructed with a precision-machined CNC aluminum case and dual-ball bearing support, the DS135MG is built to maintain structural integrity under high-load conditions while ensuring smooth, jitter-free motion. Its programmable architecture allows for fine-tuning of travel limits and neutral points, providing developers with the granular control necessary for complex linkage synchronization. As a reliable and high-value component, it is an excellent choice for professional-grade prototyping and high-density industrial automation projects.
Note: Product images are for reference only. The actual product may vary slightly in appearance or dimensions.
Key Features
- Ultra-Slim Profile: The 10mm-thick design allows for seamless installation in high-density mechatronic assemblies and thin-profile equipment.
- High-Torque Density: Capable of delivering up to 5.2kg-cm of stall torque, providing powerful performance for challenging mechanical tasks.
- CNC Aluminum Housing: Precision-engineered chassis facilitates efficient thermal dissipation, maintaining performance stability during sustained operation.
- Programmable Logic: Advanced firmware supports digital adjustment of travel limits and signal parameters, simplifying system calibration.
- Industrial Build Quality: Features dual-ball bearing (2BB) support for low-friction operation and enhanced mechanical reliability.
- Zero-Backlash Engineering: Precision gear design ensures high-fidelity positional control, essential for repeatable automated positioning.
Benefits
- Optimized Cost-to-Performance: Delivers professional-grade performance and build quality at a highly competitive price point, ideal for industrial scale-up.
- Simplified Calibration: Programmable parameters enable quick fine-tuning of motion paths, reducing time spent on manual linkage adjustment.
- Reliable Load Management: Durable metal gear construction significantly minimizes the risk of gear stripping, even during high-resistance tasks.
- Versatile Integration: Compatible with 4.8V – 6.0V power architectures, allowing for easy deployment in diverse embedded systems.
- Consistent Precision: Engineered for high repeatability, crucial for the reliability of multi-axis robotic joints and sensor orientation systems.
Applications
- Industrial Motion Control: Ideal for fine-tuning positioning in sensor arrays, automated gates, and compact industrial actuators.
- Precision Instrumentation: A preferred component for validating mechanical linkages in automated testing and new product development.
- Robotics & Mechatronics: Suitable for compact joint articulation, specialized gripper control, and micro-positioning hardware.
- Embedded Systems: Perfectly suited for developers integrating high-torque, high-accuracy motion capability into space-constrained enclosures.
Package Includes
- 1 x KST DS135MG Digital Servo
- 1 x Comprehensive Accessories Set
Specifications
| Parameter | Specification |
|---|---|
| Model Name | KST DS135MG |
| Operating Voltage | 4.8V – 6.0V DC |
| Torque (@4.8V / 6.0V) | 4.3 / 5.2 kg-cm |
| Transit Speed (@4.8V / 6.0V) | 0.15 / 0.12 sec/60° |
| Motor Type | Core Motor |
| Gear Material | Metal |
| Case Material | Anodized Aluminium |
| Programmable | Yes |
