Description

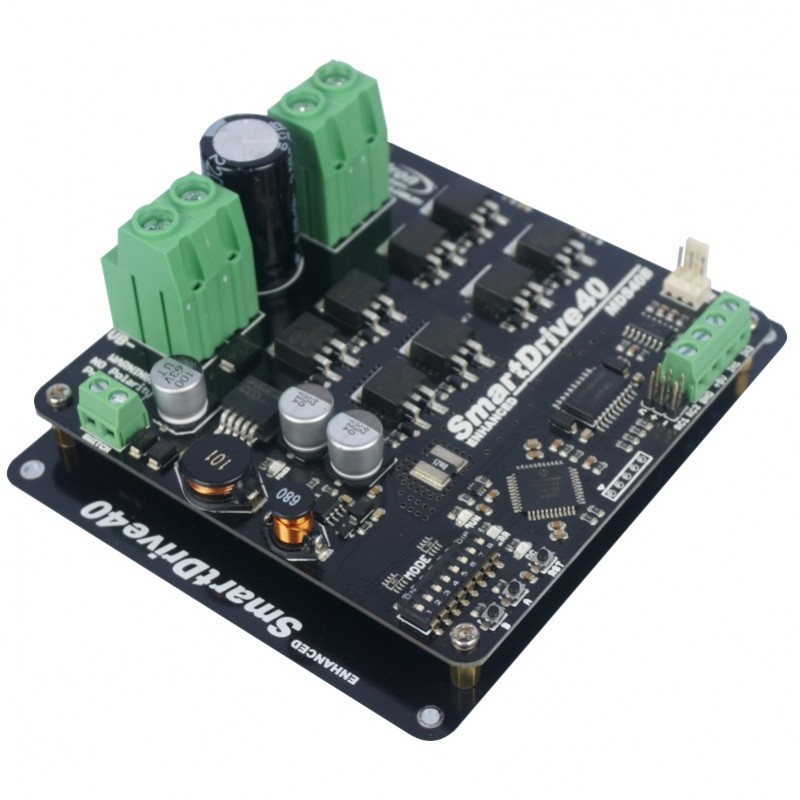

The Enhanced Cytron 40A DC Motor Driver (MDS40B) is a high-power, single-channel motion control solution engineered for demanding industrial environments and competitive robotics. Building upon the proven architecture of its predecessor, the MDS40B features an expanded operating voltage range of 10V to 45V DC, capable of sustaining 40A continuous current and 80A peak surges. This makes it an ideal driver for high-torque starter motors and medium-to-high-power brushed DC motors.
The MDS40B integrates a high-performance microcontroller unit, enabling sophisticated features such as active thermal protection, real-time current limiting, and versatile multi-mode inputs including PWM, UART, Analog, and RC servo signals. Designed for efficiency and ease of integration, the unit utilizes a 16kHz switching frequency for silent operation and features a high-efficiency switching regulator to provide a stable 5V supply for external controllers. With the addition of an active activation/deactivation terminal, system architects can eliminate the need for cumbersome high-power mechanical switches, streamlining the design of mission-critical control systems.
Note: This driver does not include reverse-polarity protection. Exercise strict caution when wiring power inputs. For optimal performance under load, we strongly recommend using AWG14 or higher-rated multi-core cabling.
Key Features
- High-Power Density: Sustains 40A continuous current with 80A peak capability, supporting intensive duty cycles in industrial and combat robotics.
- Advanced Thermal Intelligence: Dynamically scales current limiting based on real-time board temperature monitoring, protecting both the motor and the MOSFET array.
- Multi-Mode Interfacing: Seamlessly switch between RC (Radio Control), Analog, PWM, and Serial (Packetized/Simplified) input modes to accommodate various control architectures.
- High-Efficiency Power Management: Integrated switching power supply ensures optimized efficiency and stable 5V logic output, even under high-load conditions.
- Optimized Industrial Design: Features high-amperage screw terminals for secure connections and an auxiliary terminal for logic-based power cutting.
- Enhanced Operational Reliability: Includes over-voltage, under-voltage, and thermal protection protocols to ensure long-term system integrity.
Benefits for Industrial Integration
- Streamlined Power Control: The dedicated activation terminal allows for logic-level control of the driver’s power state, removing the necessity for high-current physical power switches.
- Modular Scalability: Units can be paired to facilitate differential drive systems, providing a plug-and-play experience for complex motion platforms.
- Deployment Flexibility: Increased input voltage range (up to 45V) broadens the scope of compatible battery chemistries and power delivery systems.
- Maintenance-Ready: Onboard manual test buttons allow technicians to validate drive-train functionality without the need for a host controller, reducing downtime during commissioning.
Applications
- Industrial Automation: Heavy-duty motor control for automated manufacturing equipment, conveyors, and linear actuators.
- Autonomous Mobile Platforms: High-reliability drive solution for warehouse AGVs and autonomous logistical carts.
- High-Performance Robotics: Ruggedized control for combat robotics, rumble bots, and large-scale animatronics.
- Propulsion Systems: Capable of handling the high-startup-torque requirements of starter motors and heavy industrial actuators.
Package Includes
- 1 x Enhanced Cytron 40Amp DC Motor Driver (MDS40B)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Single Channel DC Motor Driver |
| Operating Voltage | 10V to 45V DC |
| Continuous Current | 40A |
| Peak Current | 80A |
| Control Interfaces | RC, Analog, PWM, Serial (UART) |
| Protection | Overcurrent, Thermal, Overvoltage, Undervoltage |
| Switching Frequency | 16 kHz |
