Description

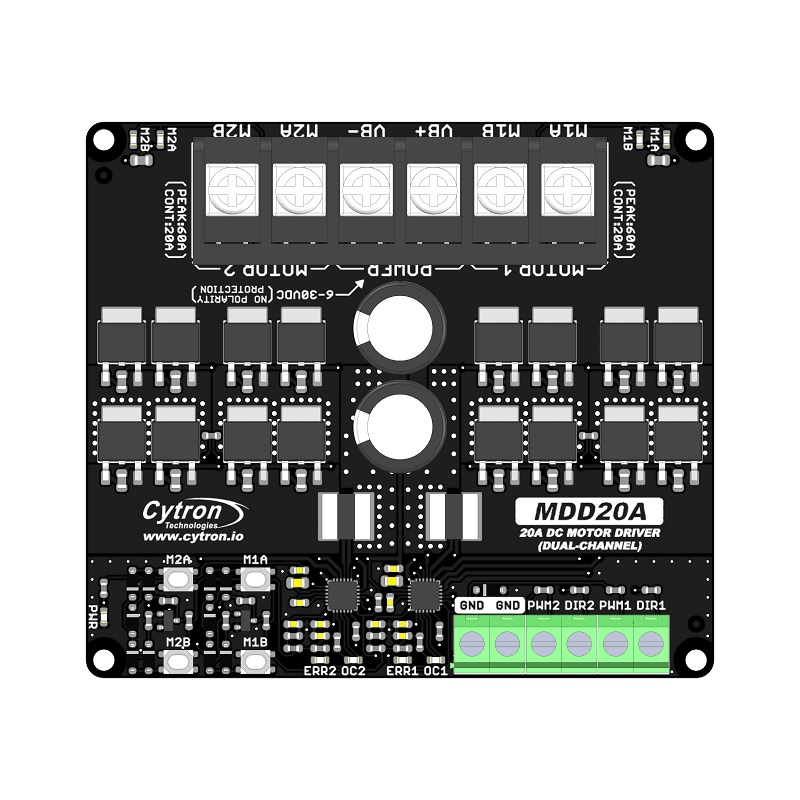

The Cytron 20A Dual-Channel DC Motor Driver (MDD20A) is a high-performance, bidirectional motion control solution designed for brushed DC motors operating between 6V and 30V. Featuring a full-discrete NMOS H-Bridge architecture, this driver is engineered for industrial reliability, capable of sustaining 20A of continuous current per channel without the need for additional heat sinks.
Unlike many drivers that overstate capabilities based on theoretical MOSFET limits, the MDD20A is optimized for real-world thermal efficiency, PCB copper thickness, and switching performance. It provides high-fidelity motor control via standard PWM and DIR inputs, with an interface logic voltage range of 1.8V to 12V, ensuring seamless integration with diverse host controllers including industrial PLCs, microcontrollers, and specialized automation hardware. Equipped with robust protection protocols such as overcurrent limiting, thermal monitoring, and undervoltage shutdown, the MDD20A is a dependable choice for mission-critical automation systems.
Note: Product images are for reference only. Ensure that your power supply and cabling are rated to handle the continuous 20A load per channel to maintain system integrity.
Key Features
- High-Power Dual-Channel Drive: Controls two independent brushed DC motors with 20A continuous and 60A peak current (10s) per channel.
- Optimized NMOS Architecture: Discrete H-bridge design delivers superior thermal efficiency and high-current capacity without bulky external heat dissipation.
- Industrial Logic Compatibility: Accepts PWM/DIR control signals at logic levels from 1.8V to 12V, ensuring compatibility with industry-standard control systems.
- Integrated Diagnostics: Onboard test buttons and LED output status indicators allow for rapid functional validation and system commissioning.
- Comprehensive Protection Suite: Features active overcurrent limiting, temperature protection, and undervoltage shutdown to protect against stalled motors or electrical faults.
- High-Frequency Operation: Supports 20kHz PWM frequency for precise, quiet, and responsive motor velocity control.
Benefits for Industrial Integration
- Thermal Robustness: Engineered for sustained performance, reducing the risk of failure in demanding, high-duty-cycle industrial environments.
- Deployment Flexibility: High-logic compatibility allows for easy integration into existing PLC-based or microcontroller-based control architectures.
- Streamlined Troubleshooting: Integrated manual testing capabilities reduce downtime by allowing engineers to verify motor and drive-train health independently of the host controller.
- Application Versatility: Ideal for precision positioning, high-torque industrial actuation, and autonomous navigation platforms.
Applications
- Automated Guided Vehicles (AGV): Reliable drive control for high-duty logistics and autonomous warehouse platforms.
- Industrial Automation: Precise motion control for conveyor systems, automated sorting jigs, and industrial assembly lines.
- Game Simulators & Motion Platforms: Capable of handling the high-torque, dynamic loads required for professional simulation hardware.
- Solar Tracking Systems: Provides robust, long-term drive reliability for outdoor solar array orientation equipment.
Package Includes
- 1 x Cytron 20Amp 6V-30V DC Motor Driver (2 Channels)
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Dual-Channel DC Motor Driver |
| Operating Voltage | 6V to 30V DC |
| Continuous Current | 20A per channel |
| Peak Current | 60A (10 seconds) |
| Logic Interface | PWM / DIR (1.8V to 12V) |
| PWM Frequency | 20 kHz |
| Dimensions | 89 (L) x 79 (W) mm |
