Description

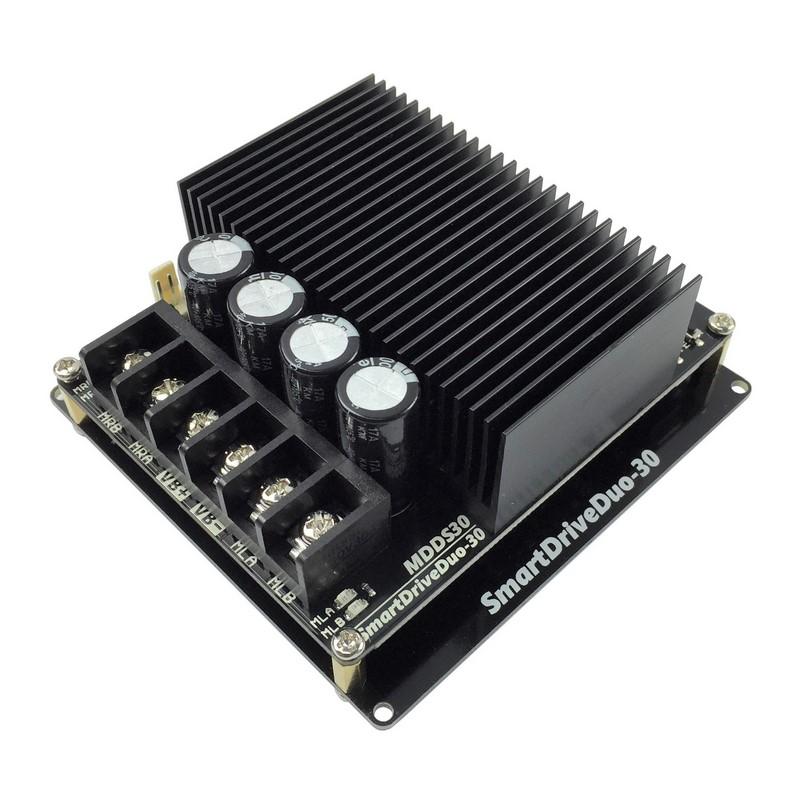

The Cytron Smart Drive MDDS30 is a high-performance, dual-channel motor driver engineered for robust motion control in mid-power industrial applications and automated mobile platforms. Designed to deliver 30A of continuous current per channel, with 80A peak surge capacity, this driver is the ideal solution for differential-drive systems, Automated Guided Vehicles (AGVs), and high-torque robotic actuators.
The MDDS30 is built with an integrated microcontroller, offering advanced logic and safety features, including real-time thermal monitoring, active current limiting, and low/over-voltage protection. The MOSFET stage operates at a high-frequency 18kHz switching rate, ensuring silent operation suitable for indoor environments and precision instrumentation. Whether controlled via standard R/C signals, analog inputs, or digital serial communication, the MDDS30 offers the flexibility and reliability required for professional-grade automation.
Note: This driver does not feature reverse-polarity protection. Verify all power connections for correct polarity before energizing the system to prevent immediate hardware failure.
Key Features
- High-Power Dual-Channel Drive: Controls two independent brushed DC motors with 30A continuous and 80A peak capability per channel.
- Intelligent Protection Suite: Real-time monitoring provides undervoltage, overvoltage, and thermal protection, with stage-by-stage current limiting to prevent hardware damage.
- Versatile Control Architectures: Supports multiple input protocols including R/C servo signals, Analog, PWM, and Serial (Simplified/Packetized UART).
- Industrial-Ready Connectivity: Equipped with GROVE-compatible connectors for rapid signal integration and standard R/C-friendly headers.
- Advanced Diagnostics: Onboard LED arrays provide clear status feedback for power, errors, operational run status, and motor output, supplemented by manual test buttons for rapid commissioning.
- Silent Operation: 18kHz switching frequency eliminates audible high-pitched whining common in lower-cost drive solutions.
Benefits for Industrial Integration
- Rapid Prototyping: The standardized R/C interface allows for plug-and-play setup for differential drive mobile platforms.
- Maintenance Efficiency: Onboard error indicators and manual test buttons allow technicians to perform diagnostics without a host controller, reducing system downtime.
- Design Flexibility: Wide operating voltage range (7V–35V DC) supports a variety of battery chemistries (3S–8S LiPo or SLA), simplifying power system design.
- High Reliability: The robust solid-state design handles intensive duty cycles effectively, ensuring long-term operational consistency.
Applications
- Automated Guided Vehicles (AGV): Reliable control for autonomous warehouse logistics and material transport platforms.
- Industrial Robotics: Robust actuation for mobile robotic bases, heavy-duty conveyor systems, and automated sorting equipment.
- Precision Instrumentation: High-frequency operation ensures quiet performance, suitable for labs and controlled factory environments.
- Custom Automation: A versatile drive hub for proprietary industrial jigs and automated mobile fixtures.
Package Includes
- 1 x Cytron Smart Drive MDDS30 Dual Motor Driver
- Set of Connecting Cables
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Dual-Channel DC Motor Driver |
| Operating Voltage | 7V to 35V DC |
| Continuous Current | 30A per channel |
| Peak Current | 80A (for 1 second) |
| Control Modes | RC, Analog, PWM, UART |
| Switching Frequency | 18 kHz |
| Diagnostics | Integrated LEDs, Manual Test Buttons |
