Description
The Maker Drive is a high-efficiency, dual-channel H-bridge motor driver engineered to provide professional-grade motion control in a compact form factor. Designed to meet the stringent reliability requirements of industrial prototyping and automated system integration, this driver simplifies the deployment of small-scale DC brushed motor architectures while ensuring robust electrical protection.
The Maker Drive features an integrated buck-boost regulator capable of delivering a stable 5V output (200mA) from input voltages as low as 2.5V, enabling streamlined, single-source power designs for your control electronics. With its discrete NMOS H-Bridge design, it delivers rapid switching response times and high efficiency, far outperforming legacy relay-based or bulky heat-sink-dependent alternatives. For rapid system commissioning and on-site maintenance, the driver includes manual diagnostic test buttons and status LEDs, allowing technicians to verify drive-train functionality independently of the host controller.
Key Industrial Features
- Robust Electrical Protection: Integrated reverse polarity protection at the power input prevents hardware damage during assembly or maintenance, reducing operational downtime.
- Integrated Power Management: The buck-boost regulator ensures stable 5V logic supply from a wide 2.5V–9.5V input range, simplifying cabling and power distribution in custom machinery.
- Diagnostic-Ready Architecture: Onboard manual test buttons and high-visibility status LEDs allow for instantaneous system verification and on-site troubleshooting.
- High-Efficiency Performance: Solid-state NMOS architecture provides superior power efficiency and faster switching response compared to traditional relay systems.
- Wide Logic Compatibility: Input stages are fully compatible with industry-standard 1.8V, 3.3V, and 5V logic levels, ensuring seamless integration with PLCs, microcontrollers (ESP32, Arduino), and industrial embedded systems.
- Advanced Braking Logic: Supports regenerative braking, enabling precise speed control and rapid deceleration required for sophisticated motion profiling.
Benefits for Industrial Integration
- System Reliability: Eliminates mechanical failure points by using pure solid-state switching, extending the mean time between failures (MTBF).
- Reduced Footprint: Highly optimized 43mm x 35mm x 14mm dimensions allow for integration into high-density enclosure designs.
- Development Speed: Onboard test functionality significantly reduces commissioning time by allowing functional validation before final firmware integration.
- Application Versatility: The addition of stepper motor control capability expands its utility beyond standard DC drive tasks, offering a flexible solution for multi-purpose automation.
Applications
- Industrial Automation: Reliable actuation for small-scale conveyor belts, automated sorting mechanisms, and robotic assembly jigs.
- Mobile Robotics & AGVs: Ideal for compact, autonomous mobile platforms requiring high-precision differential drive control.
- Process Instrumentation: Precise, high-speed motor control for automated laboratory equipment and precision dispensing systems.
- Embedded Control Systems: A robust interface for mission-critical small-scale mechatronic devices.
Package Includes

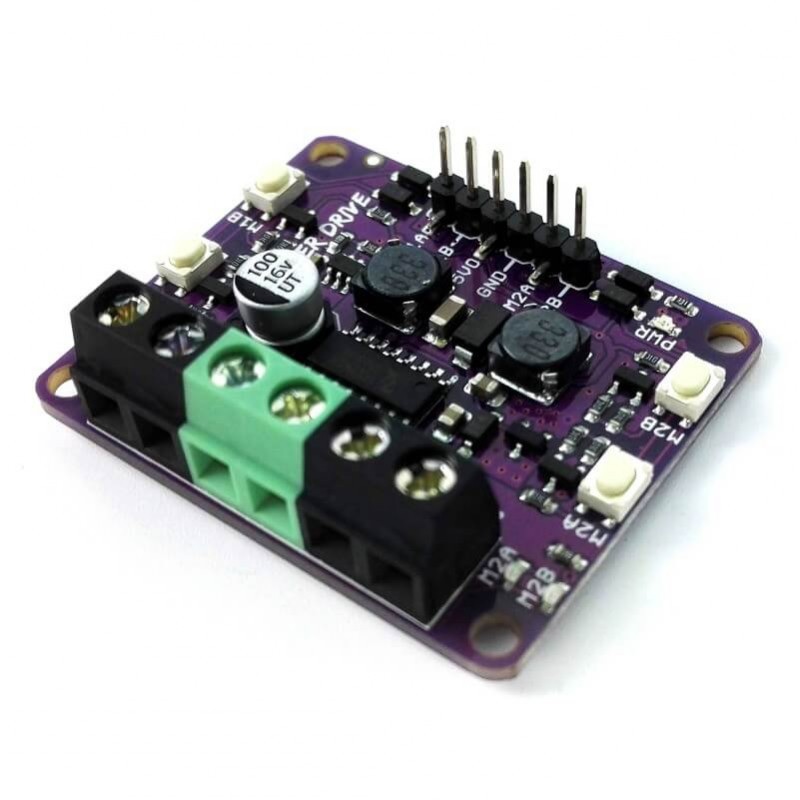

- 1 x Cytron Maker Drive H-Bridge Motor Driver
Specifications
| Parameter | Specification |
|---|---|
| Item Type | Dual-Channel DC Motor Driver |
| Input Supply Voltage | 2.5V to 9.5V DC |
| Continuous Current | 1.0A per channel |
| Peak Current | 1.5A (< 5 seconds) |
| Logic Compatibility | 1.8V, 3.3V, 5V |
| Dimensions | 43 x 35 x 14 mm |
