Description

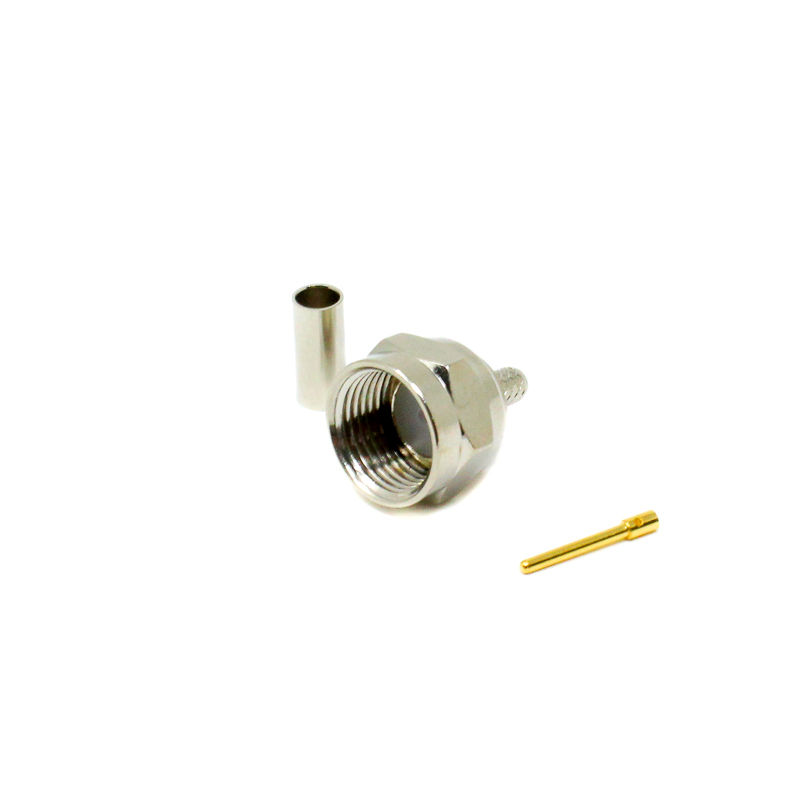

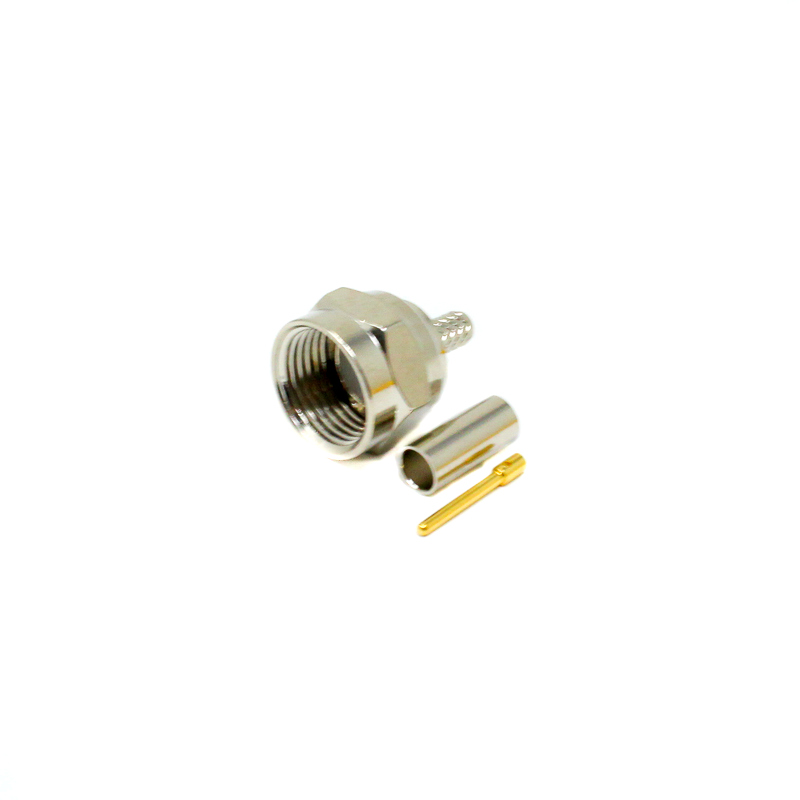

The F-Type Male Straight Crimp Connector is a high-performance RF plug designed for reliable coaxial cable termination in broadcast and telecommunications systems. Featuring a secure 3/8-32 threaded coupling, this connector is engineered to maintain constant 75Ω impedance, ensuring minimal signal loss and high-quality transmission for CATV, satellite, and high-definition video applications. Its crimp-style shield termination provides a robust, permanent connection that protects against signal interference and mechanical strain.
Built with a durable, nickel-plated copper body, this F-type connector offers excellent environmental protection and long-term durability. With an impressive RF leakage rating of -100dB at 1GHz, it effectively minimizes external interference, making it an ideal choice for professional-grade cable TV networks and satellite receiver installations. Its compact, straight-profile design allows for space-efficient cable management in high-density distribution environments.
Key Features
- Design: F-Type Male (Plug), Straight (180°) orientation
- Mounting: Cable mount with professional crimp-style shield termination
- Coupling: Threaded 3/8-32 interface for a secure, high-integrity connection
- Performance: Optimized 75Ω impedance for broadcast and satellite systems
- Frequency: Stable signal transmission from DC up to 3 GHz
- Build Quality: Nickel-plated copper body for superior durability and corrosion resistance
- Shielding: High RF leakage protection (-100dB min @ 1GHz)
Technical Benefits
- Crimp termination ensures a reliable, permanent bond to the cable shield
- Threaded locking mechanism prevents accidental disconnects and maintains signal integrity
- Compact design is perfect for crowded behind-the-panel cable runs
- High-grade materials support consistent performance across ≥500 mating cycles
- Meets strict industry standards for CATV and high-frequency video distribution
Applications
- Consumer Electronics: Satellite Receivers, Set-Top Boxes, and HDTV
- Telecommunications: CATV (Cable TV) Networks and Broadband Infrastructure
- Broadcasting: High-Definition Video Signal Distribution
- Data/Communications: Cable modems and RF signal interfaces
- Industrial: Professional RF instrumentation and signal monitoring
Specifications
| Parameter | Specification |
|---|---|
| Brand | ElecBee |
| Orientation | Straight (180°) |
| Gender | Male (Plug) |
| Mounting Type | Cable Mount |
| Termination Style | Crimp (Shield) / Solder (Center) |
| Body Material | Copper |
| Body Plating | Nickel Plating |
| Impedance | 75 Ω |
| Frequency Range | 0 – 3 GHz |
| Operating Temperature | -40°C to +60°C |
