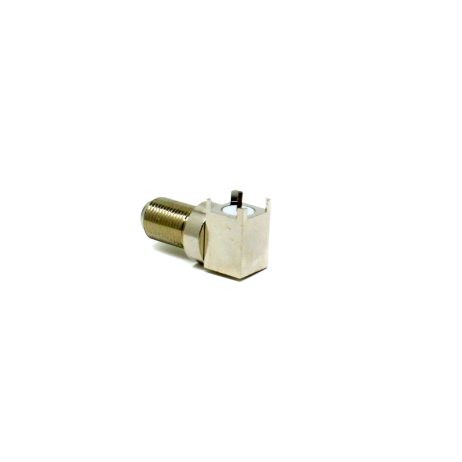

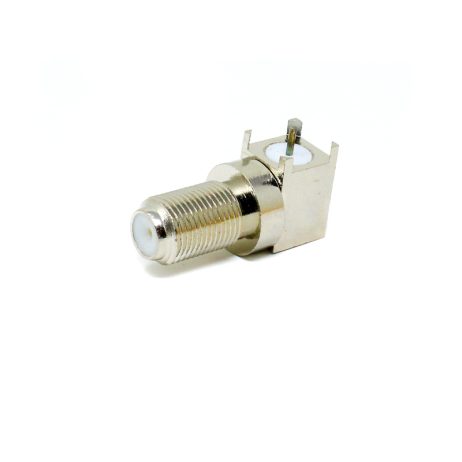

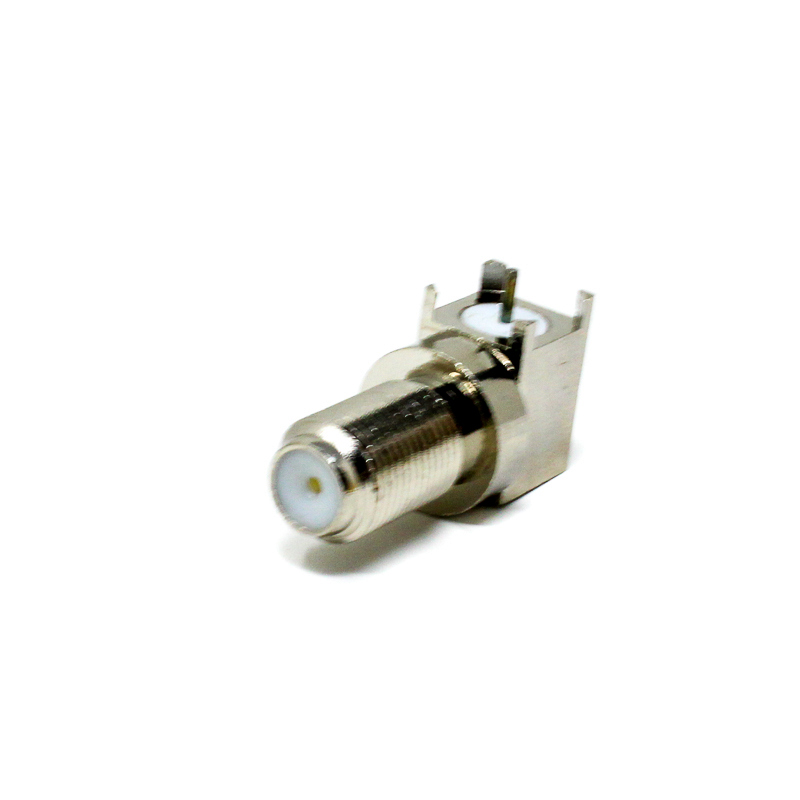

Description
The 90° F-Type Female Bulkhead RF Connector is a high-quality right-angle connector designed for reliable RF signal transmission in television, communication, and RF electronic applications. Featuring a 75Ω impedance, this connector is suitable for coaxial cable systems requiring low signal loss and stable high-frequency performance.
Designed for PCB and panel mounting, the connector incorporates a durable bulkhead threaded design for secure installation and solder-type termination for dependable electrical connections. Its compact right-angle construction helps save installation space, making it ideal for densely populated PCB layouts and compact electronic equipment.
Supporting frequencies up to 3GHz, the connector delivers excellent RF performance with low contact resistance, high insulation resistance, and outstanding shielding against signal leakage. It is widely used in satellite receivers, CATV systems, set-top boxes, RF communication equipment, instrumentation, and industrial electronic devices.

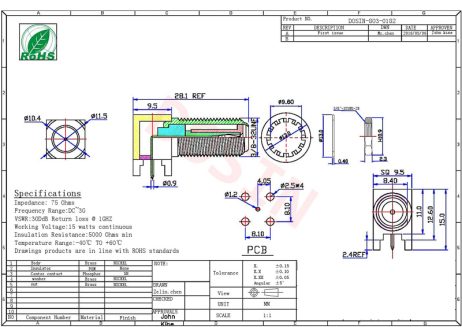

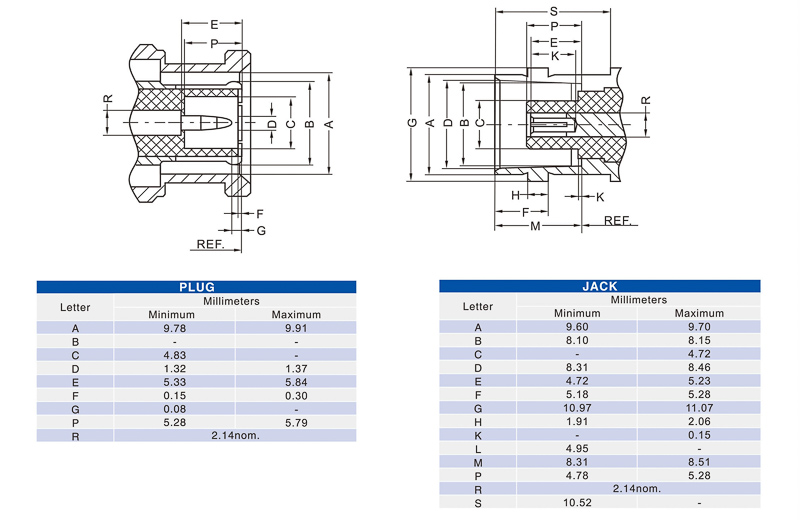

Note: Please refer to the dimensional drawing in the schematic image and the datasheet (if available) before installation. Product appearance may vary slightly depending on the manufacturing batch.
Features
- 90° right-angle F-Type female RF connector
- 75Ω impedance for RF applications
- PCB and panel mount bulkhead design
- Solder-type termination
- Compact construction for space-saving installation
- Supports frequencies up to 3GHz
- Low contact resistance for improved signal quality
- Excellent shielding against RF leakage
- Threaded bulkhead mounting for secure installation
- Durable construction with over 500 mating cycles
Benefits
- Provides reliable high-frequency RF signal transmission
- Minimizes signal loss and interference
- Easy installation on PCBs and equipment panels
- Suitable for compact electronic designs
- Offers long operational life with durable construction
- Ensures secure mechanical and electrical connections
- Compatible with standard F-Type RF systems
- Ideal for professional RF and communication equipment
Applications
- Satellite Receivers
- Set-Top Boxes
- CATV Systems
- Cable Television Networks
- RF Communication Equipment
- Broadcast Equipment
- Telecommunication Systems
- Network Distribution Equipment
- RF Test Instruments
- Signal Distribution Systems
- Industrial Electronics
- Embedded RF Devices
- Consumer Electronics
- Video Distribution Equipment
- Measurement Equipment
- Electronic Prototyping
- PCB RF Circuits
- Panel Mount RF Interfaces
- Coaxial Cable Connections
- General RF Applications
Package Includes
- 1 x 90° F-Type Female Bulkhead RF Connector for PCB Mount
Specifications
| Parameter | Specification |
|---|---|
| Product Name | 90° F-Type Female Bulkhead RF Connector |
| Brand | ElecBee |
| Connector Type | F-Type Female |
| Orientation | Right Angle (90°) |
| Gender | Female |
| Impedance | 75 Ω |
| Frequency Range | DC to 3 GHz |
| Mounting Type | PCB Mount / Panel Mount |
| Mounting Style | Bulkhead / Through Hole |
| Termination Type | Solder |
| Working Voltage | 170 V RMS |
| Withstand Voltage | 500 V RMS |
| Center Contact Resistance | ≤ 10 mΩ |
| Outer Contact Resistance | ≤ 5 mΩ |
| Insulation Resistance | ≥ 1000 MΩ |
| RF Leakage | ≥ 100 dB @ 1 GHz |
| Coupling Thread | 3/8-32 Thread |
| Minimum Cable Retention | 20 lbs |
| Mechanical Life | ≥ 500 Mating Cycles |
| Operating Temperature | -40°C to +60°C |
