Description
The 16mm Latching Push Button Switch Socket Plug is a convenient and essential accessory designed to streamline the wiring process for panel-mount push-button switches. By using this socket, you eliminate the need for direct soldering onto switch terminals, ensuring a secure, organized, and professional connection for your electrical projects.

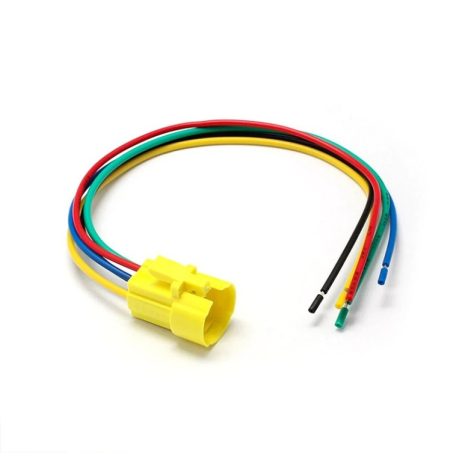

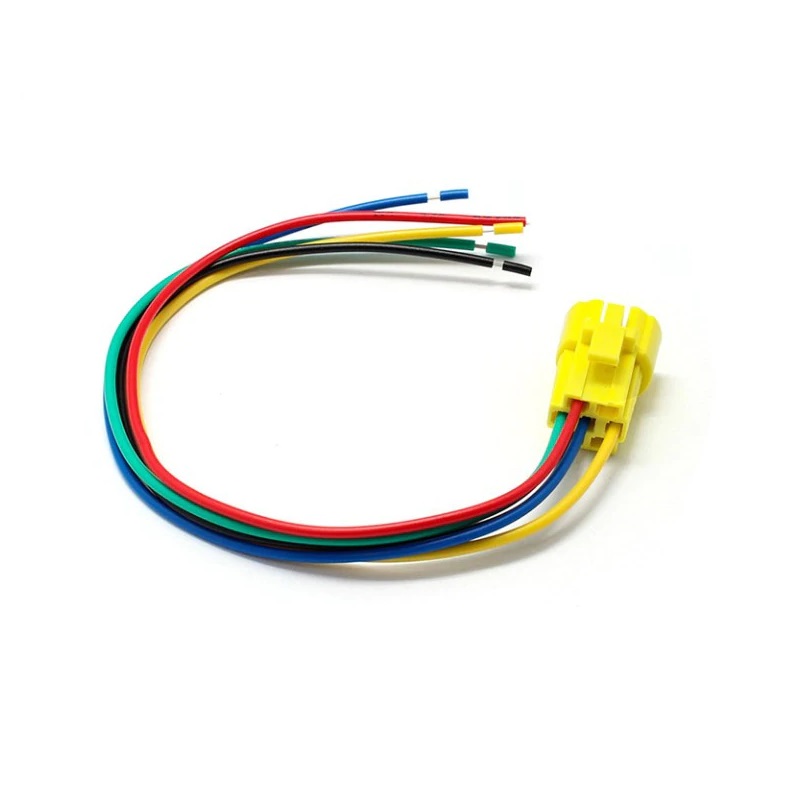

The plug comes with a 5-wire harness, making installation straightforward with clearly identified wires:
- Red Wire: LED Positive (+)
- Black Wire: LED Negative (-)
- Green Wire: Common (C)
- Blue Wire: Normally Open (NO)
- Yellow Wire: Normally Closed (NC)
This socket is compatible with standard 16mm switches and is perfect for automotive, marine, and industrial applications such as relay controls, custom lighting, and circuit management. Please note that the switch itself is not included.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Features
- 5-wire harness for simplified, tool-free wiring
- Compact, durable plastic construction
- Compatible with standard 16mm panel-mount switches
- Easy to connect and install
- Supports flexible LED wiring (always on or switch-controlled)
- Color-coded cabling for easy identification
- Suitable for automotive, industrial, and DIY electronic projects
Benefits
- Creates a clean, professional-grade wiring interface
- Eliminates the need for soldering directly to switch pins
- Facilitates quick switch replacement or maintenance
- Robust build quality ensures a secure electrical contact
- Compatible with high-voltage AC and low-voltage DC systems
Applications
- Automotive Lighting (Fog Lamps, Chassis Lamps)
- Industrial Control Panels
- Relay Control Systems
- Home Automation Projects
- Custom Dashboard Controls
- Marine Electrical Equipment
- DIY Electronics & Robotics
- Power Distribution Panels
Package Includes
- 1 x 16mm Latching Push Button Switch Connector (5-Wire Socket)
Specifications
| Parameter | Specification |
|---|---|
| Product Type | Push Button Switch Socket Plug |
| Compatible Mounting Size | 16mm |
| Material | Plastic |
| Wire Count | 5 Wires |
| Color | Yellow |
| Switch Compatibility Rating | 5A / 250V AC, 5A / 30V DC |
| Shipping Weight | 0.011 kg |
| Shipping Dimensions | 8 × 7 × 2 cm |
