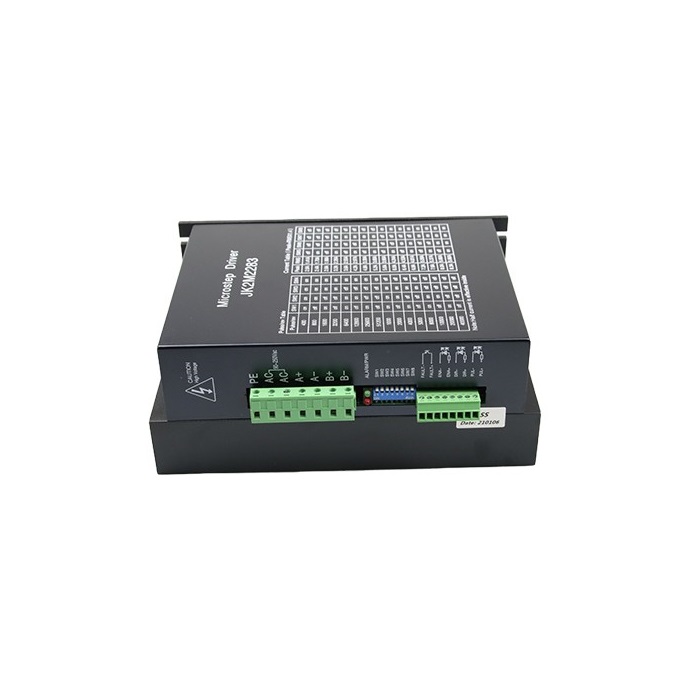

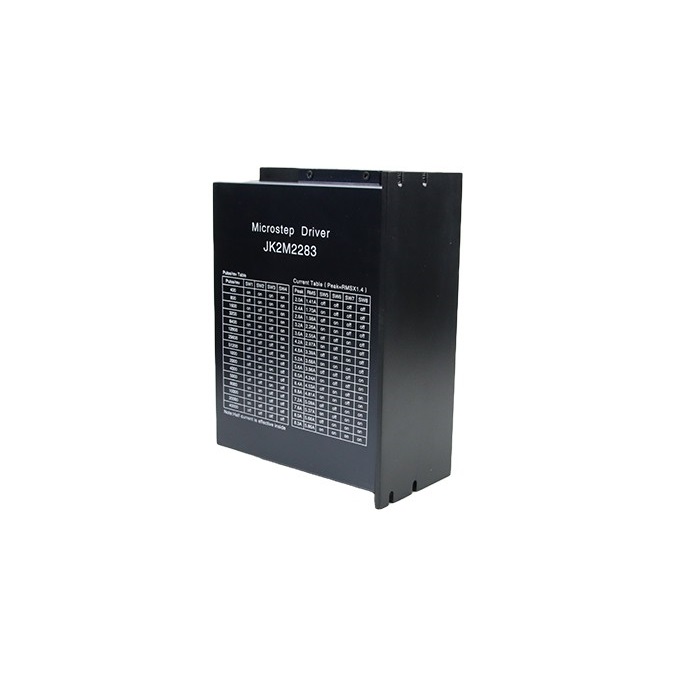

2M2283 High-Performance Microstep Stepper Motor Driver
Description
The 2M2283 Stepper Motor Driver is a high-performance microstepping driver designed for precision motion control applications requiring smooth, stable, and high-torque motor operation. It is suitable for driving two-phase and four-phase hybrid stepper motors including 130BYG, 110BYG, and other compatible stepper motors with output current requirements up to 8.3A.
The driver utilizes advanced constant angle and constant torque control technology with a control architecture similar to servo drive systems. This enables smoother motor movement, reduced vibration, low operational noise, and lower motor temperature rise during continuous operation.
The 2M2283 supports 16 selectable microstepping resolutions ranging from full-step operation up to 51200 steps per revolution, allowing highly accurate positioning and precise motion control. The output current can be configured from 2.0A to 8.3A with 16 adjustable current levels for flexible motor matching.
The driver also features automatic idle-current reduction, online adaptive PID technology, self-test functionality, and multiple protection systems including overvoltage, undervoltage, and overcurrent protection for improved operational safety and reliability.
Designed for industrial applications, the driver operates directly from AC power input ranging from 150VAC to 220VAC and supports high-speed pulse response frequencies up to 200KHz.
Features
- High-performance industrial stepper motor driver
- Supports two-phase and four-phase hybrid stepper motors
- Advanced constant angle and constant torque control
- Smooth motor operation with low noise and vibration
- 16 selectable microstepping resolutions
- Supports up to 51200 steps per revolution
- Adjustable output current from 2.0A to 8.3A
- Automatic idle-current reduction function
- Optically isolated signal I/O interface
- Maximum pulse response frequency up to 200KHz
- Online adaptive PID technology
- Built-in self-test functionality
- Overvoltage, undervoltage, and overcurrent protection
- Industrial-grade stable and reliable operation
Applications
- CNC machines
- Industrial automation systems
- Packaging machinery
- Textile machinery
- Laser cutting and engraving machines
- Robotics systems
- Precision positioning equipment
- Motion control applications
Package Includes
- 1 × 2M2283 Stepper Motor Driver
Specifications
| Parameter | Value |
|---|---|
| Model | 2M2283 |
| Operating Voltage | 150VAC to 220VAC |
| Motor Driver Voltage | 150VAC ~ 220VAC |
| Current Rating | 2.0A to 8.3A |
| Stepper Motor Output Current | 2A ~ 8.3A |
| Microstepping Resolution | 16 Selectable Microstep Modes |
| Maximum Resolution | 51200 Steps/Rev |
| Pulse Frequency | 200 KHz |
| Logic Signal Current | 7 – 16 mA |
| Control Technology | Online Adaptive PID |
| Protection Features | Overvoltage, Undervoltage, Overcurrent Protection |
| Isolation Type | Optically Isolated Signal I/O |
| Compatible Motors | 110BYG, 130BYG and Similar Hybrid Stepper Motors |
| Shipping Weight | 1.56 kg |
| Shipping Dimensions | 25 × 21 × 12 cm |
