Description

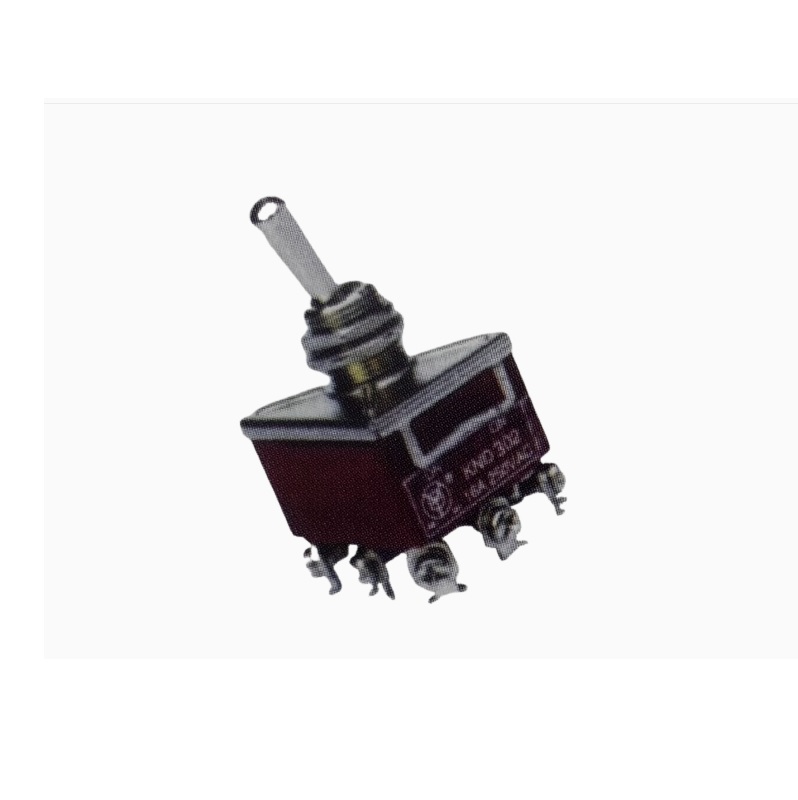

The KND-302 Toggle Switch is a professional-grade, heavy-duty electrical switch engineered for demanding power-switching applications. Capable of handling high-capacity loads up to 15A at 250VAC and 10A at 380VAC, this switch is the ideal choice for industrial machinery, heavy-duty power supplies, and robust control systems.
Designed for resilience, the KND-302 operates reliably in extreme temperatures ranging from -25°C to 85°C. It features excellent electrical characteristics, including an insulation resistance of ≥100MΩ and a withstand voltage capability of AC 1500V (50Hz) for one minute, ensuring safety and performance in diverse electrical environments. With a precise actuating force of 2-8N, it provides positive, tactile feedback for secure operation.
Note: Product images are for reference only. The actual product may vary slightly in appearance or manufacturer markings depending on stock availability.
Key Features
- High Power Capacity: Rated for demanding industrial loads up to 15A (250VAC) or 10A (380VAC).
- Wide Temperature Tolerance: Operates consistently from -25°C to 85°C.
- Safety & Durability: Withstands AC 1500V (50Hz) for one minute to ensure circuit safety.
- Low Contact Resistance: Engineered for efficient power transfer with low contact loss (≤0.05Ω).
- Tactile Operation: Features a robust 2-8N actuating force for reliable, intentional switching.
Detailed Benefits & Uses
- Industrial Robustness: Built to withstand the rigors of factory environments, heavy machinery, and high-current hardware.
- Flexible Power Control: Suitable for single-phase and three-phase (lower current) control applications.
- Easy Panel Integration: Compact, sturdy design allows for quick mounting in control consoles and equipment enclosures.
Applications
- Industrial Machinery: Primary power control for motors, conveyor systems, and CNC equipment.
- Power Distribution: Used in switchboards and heavy-duty power distribution panels.
- Laboratory Equipment: Reliable state selection for high-power testing devices.
- Large-Scale Lighting: Controlling high-wattage lighting systems in warehouses or stadiums.
- Automotive & Marine: Suitable for heavy-duty DC or AC power management in custom vehicles or marine craft.
Package Includes
- 1 x KND-302 Toggle Switch
Specifications
| Parameter | Specification |
|---|---|
| Model | KND-302 |
| Operating Temperature | -25°C to +85°C |
| Rated Input Voltage/Current | 15A @ 250V AC / 10A @ 380V AC |
| Contact Resistance | ≤ 0.05Ω |
| Insulation Resistance | ≥ 100MΩ |
| Withstand Voltage | AC 1500V (50Hz) / min |
| Actuating Force | 2 – 8N |
| Shipping Weight | 0.048 kg |
| Shipping Dimensions | 7 × 5 × 4 cm |
