Description
The TMC2208 Stepper Motor Driver Module is a high-performance and ultra-quiet two-phase stepper motor driver designed for precision motion control applications such as 3D printers, CNC machines, robotics, and automation systems. It supports advanced motor control technologies that deliver smooth, silent, and efficient motor operation.
The driver provides a continuous output current of up to 1.4A and supports peak currents up to 2A. With an operating voltage range of 4.75V to 36V DC, it is compatible with a wide range of bipolar stepper motors and controller systems.
The TMC2208 features advanced StealthChop2 ultra-quiet technology, enabling near-silent motor performance with significantly reduced vibration and noise levels. Its SpreadCycle current control technology ensures smoother motor movement by minimizing torque ripple and eliminating current dead zones commonly found in traditional stepper drivers.
The integrated MicroPlyer interpolation technology supports up to 256 microsteps, providing highly precise motion control and smoother motor operation even at lower pulse frequencies. The module is designed with a standard STEP/DIR interface for easy integration with existing motion control systems and 3D printer electronics.
The included aluminum heat sink improves thermal performance and enhances driver reliability during continuous operation.
Features
- Ultra-quiet TMC2208 stepper motor driver IC
- Supports up to 256 microstepping
- StealthChop2 technology for silent motor operation
- SpreadCycle current control for smooth motion
- Continuous output current up to 1.4A
- Peak current support up to 2A
- Wide operating voltage range: 4.75V to 36V DC
- Compatible with 3.3V and 5V logic systems
- Standard STEP/DIR control interface
- Reduced motor vibration and noise
- Smooth sinusoidal current control
- No synchronization loss under high load conditions
- Supports selectable microstep resolutions
- Compact module design with included heat sink
- Ideal for precision motion control applications
Applications
- 3D printers
- CNC machines
- Laser engraving systems
- Robotics and automation projects
- DIY motion control systems
- Precision positioning systems
- Silent stepper motor applications
- Embedded motor control systems

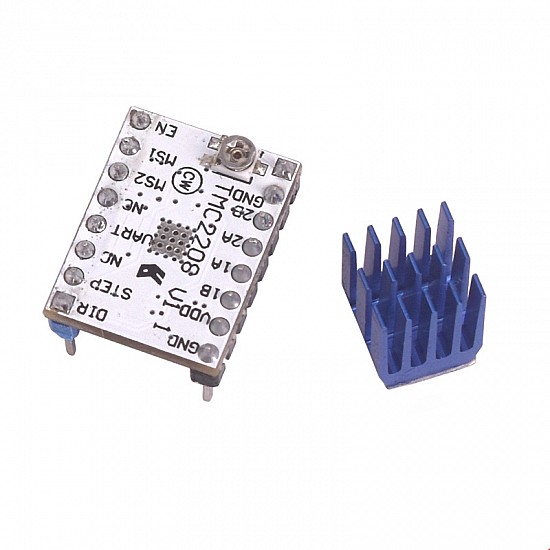

Package Includes
- 1 × TMC2208 Stepper Motor Driver Module
- 1 × Aluminum Heat Sink
Technical Specifications
| Parameter | Value |
|---|---|
| Model Series | TMC Series, Heat Sink |
| Model Number | TMC2208 |
| Operating Voltage | 4.75V to 36V DC |
| Continuous Current | 1.4A |
| Peak Current | 2A |
| Microstepping Support | Up to 1/256 Microstepping |
| Logic Voltage Compatibility | 3.3V to 5V |
| Control Interface | STEP/DIR |
| Supported Technologies | StealthChop2, SpreadCycle, MicroPlyer |
| Selectable Microstep Modes | 2, 4, 8, 16 and 256 Microsteps |
| Color | Black |
| Module Size | 20 × 15 × 11 mm |
| Shipping Weight | 0.005 kg |
| Shipping Dimensions | 6 × 6 × 2 cm |
