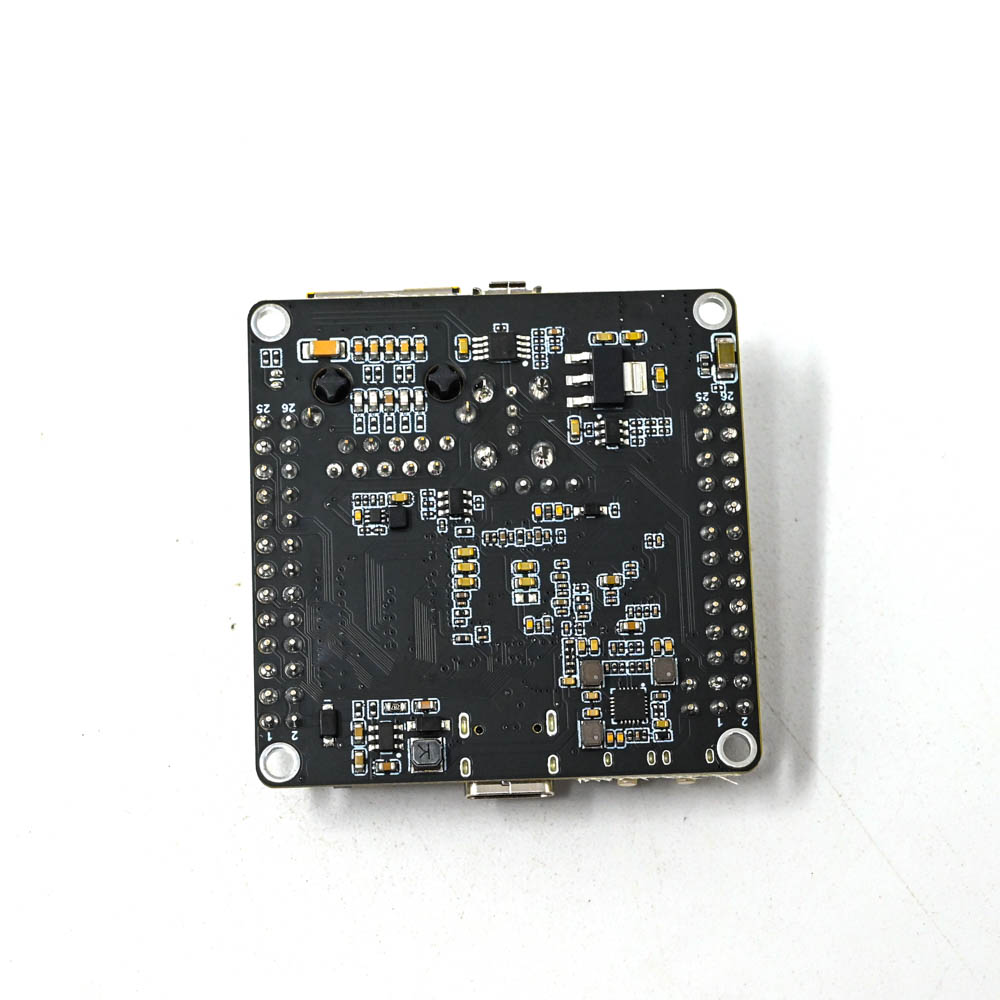

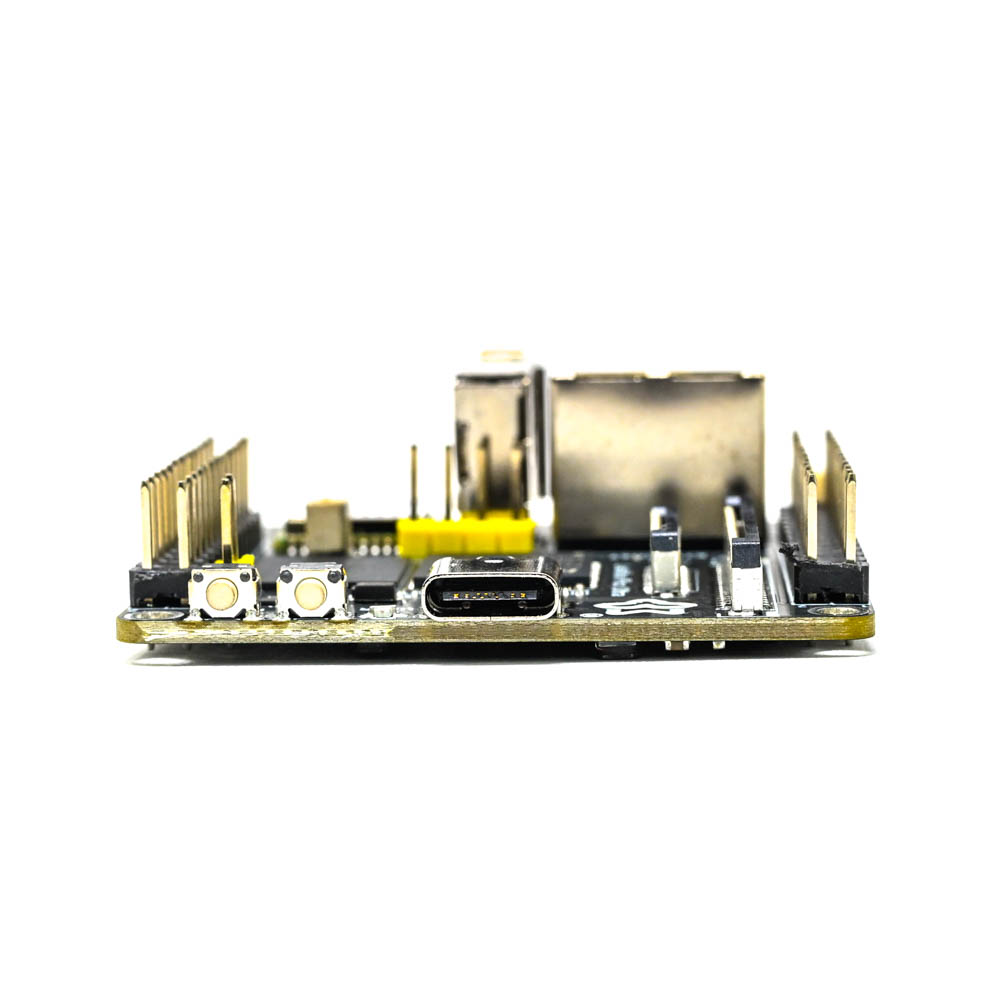

SPIDER Automation Luckfox Pico Ultra RV1106 | Linux Micro Development Board
Description
SPIDER Automation Waveshare Luckfox Pico Ultra RV1106 Linux Micro Development Board represents a powerful convergence of technologies designed to empower developers with versatile edge computing capabilities. At its core, it integrates a sophisticated array of processors, including an ARM Cortex-A7 CPU, a RISC-V MCU, a Neural Processing Unit (NPU), and an Image Signal Processor (ISP). This amalgamation enables a wide spectrum of applications ranging from real-time AI inference and smart video encoding to machine vision and general-purpose Linux development.
Built with 256MB of onboard DDR3L memory, an MIPI CSI camera interface, and an IEEE 802.1af PoE-compatible Ethernet controller, the Luckfox Pico Ultra provides a compact, high-efficiency solution for industrial monitoring, smart home cameras, and embedded AI prototyping.
Key Features
- Rockchip RV1106G3 SoC: Single-core ARM Cortex-A7 32-bit core running at 1.2 GHz with integrated NEON and FPU.
- High-Precision NPU: Rockchip 4th-generation Neural Processing Unit supporting int4, int8, and int16 hybrid quantization (0.5 TOPS at int8).
- Advanced ISP3.2 Image Processor: Supports 5-megapixel input with built-in hardware correction algorithms including HDR, WDR, and multi-level noise reduction.
- Intelligent Video Encoding: High-performance encoder supporting adaptive stream saving, reducing conventional CBR bit rates by over 50% while maintaining crystal-clear definition.
- Embedded System Memory: Built-in 16-bit DDR3L DRAM totaling 256MB to sustain demanding memory bandwidths.
- Networking & Power over Ethernet: Integrated 10/100M Ethernet controller with embedded PHY and IEEE 802.1af PoE interface support.
- Camera Interface: MIPI CSI 2-lane connector for high-speed sensor module integration.
Benefits
- Powerful Edge AI Inference: Onboard NPU enables lightweight neural networks and smart object detection directly on the microcontroller device.
- Superior Image Quality: Advanced hardware ISP ensures clean, balanced video streams even in difficult lighting conditions.
- Bandwidth Optimization: Smart encoding saves storage and transmission bandwidth without sacrificing video clarity.
- Compact Form Factor: Micro-sized Linux board ideal for tight spatial constraints in custom hardware enclosures.
Applications
- Smart Security Cameras: AI-enabled IP cameras capable of local motion detection, face recognition, and object tracking.
- Industrial Machine Vision: Automated optical inspection nodes and quality control sensor units.
- IoT Edge Gateways: Compact Linux computers processing local camera feeds and transmitting telemetry data.
- Robotics Vision Systems: Visual navigation and obstacle detection modules for small autonomous rovers.
- Embedded Linux & AI Education: Advanced development platform for learning edge machine learning and video pipeline programming.
Package Includes
- 1 x Luckfox Pico Ultra RV1106 Linux Micro Development Board (Integrated ARM Cortex-A7, NPU, & ISP)
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Waveshare Luckfox Pico Ultra Series |
| Item Type | Linux Micro Development Board & Edge AI Evaluation Platform |
| Model / Part Number | Luckfox Pico Ultra RV1106 |
| Main Chipset (SoC) | Rockchip RV1106G3 |
| Main Processor | Single-Core ARM Cortex-A7 @ 1.2 GHz with NEON and FPU |
| Neural Network Processor (NPU) | 4th-Gen Rockchip NPU (0.5 TOPS at int8, supports int4, int8, int16 quantization) |
| Image Signal Processor (ISP) | Third-Generation ISP3.2 (Max input: 5M @ 30fps with HDR, WDR) |
| System Memory (RAM) | 256 MB DDR3L (16-bit DRAM) |
| Camera Interface | MIPI CSI 2-Lane Interface |
| Wired Networking & PoE | 10/100M Ethernet Controller with Embedded PHY & IEEE 802.1af PoE Support |
| Package Shipping Weight | 0.07 kg (70 g) |
| Package Shipping Dimensions | 16 cm × 11 cm × 3 cm |
