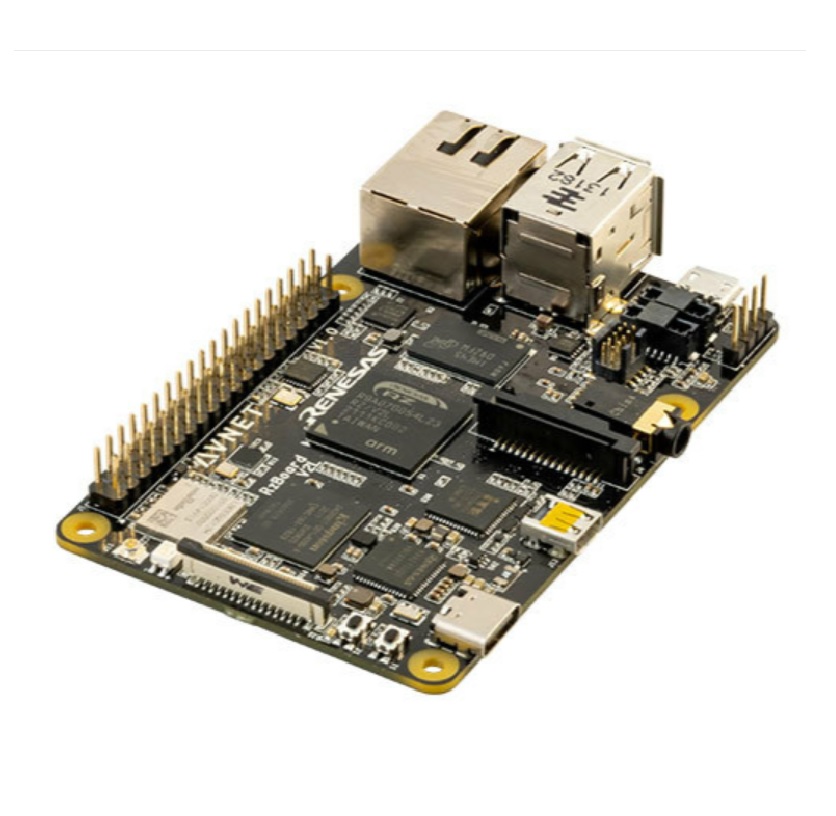

RZBoard V2L Single Board Computer | Renesas RZ/V2L Vision AI SBC | For Edge AI & Machine Learning Applications
Description
SPIDER Automation RZBoard V2L Single Board Computer is an advanced, power-efficient development platform engineered specifically for cost-effective vision AI and edge computing. Driven by the powerful Renesas RZ/V2L System-on-Chip (SoC), this single-board computer combines dual 1.2GHz ARM Cortex-A55 application cores with a 200MHz Cortex-M33 real-time core, a Mali 3D GPU, and an Image Scaling Unit.
What sets the RZBoard V2L apart is its integrated DRP-AI (Dynamically Reconfigurable Processor for AI) accelerator, enabling high-speed, low-power deep learning inference directly at the edge. Alongside robust hardware capabilities like hardware H.264 video encode/decode (1920×1080), 2GB DDR4 RAM, 32GB eMMC storage, and a Raspberry Pi compatible 40-pin header, this board provides developers with a production-ready foundation for smart cameras, automated access control, and industrial robotics.
Key Features
- Heterogeneous Multi-Core Processing: Dual ARM Cortex-A55 cores (1.2GHz) paired with an ARM Cortex-M33 core for versatile task management.
- Integrated DRP-AI Accelerator: Dedicated hardware accelerator optimized for real-time artificial intelligence and machine learning inference.
- Robust Onboard Memory: Equipped with 2 GB of high-speed DDR4 RAM, 32 GB eMMC flash, 16 MB QSPI flash, and a microSD card slot.
- High-Performance Graphics & Video: Built-in 3D GPU alongside hardware H.264 video encoding and decoding up to 1920×1080 resolution.
- Wired & Wireless Networking: Features 1Gbps RJ45 Ethernet, dual-band Wi-Fi 802.11ac, and Bluetooth 5 connectivity.
- Industrial Bus Integration: Onboard CAN-FD interface complete with transceiver for reliable automotive and industrial networking.
- Rich Display & Camera Interfaces: Supports MIPI-DSI, micro-HDMI output, and MIPI-CSI camera connections for machine vision setups.
- Raspberry Pi HAT Compatibility: 40-pin header layout allows seamless integration with standard off-the-shelf expansion shields and sensors.
Benefits
- Edge AI Acceleration: DRP-AI core executes complex neural networks locally without requiring cloud connectivity or expensive GPUs.
- Industrial-Grade Longevity: Backed by CIP (Civil Infrastructure Platform) Linux kernel support offering up to 10 years of software reliability.
- Flexible Prototyping Ecosystem: Standard SBC dimensions and Pi HAT header compatibility accelerate hardware customization.
- Multitasking Efficiency: Separation of Linux application processing (Cortex-A55) and real-time operations (Cortex-M33) ensures deterministic response times.
Applications
- Vision-Accelerated Artificial Intelligence: Real-time object detection, facial recognition, and automated optical inspection systems.
- Smart Surveillance & Security: IP cameras with onboard artificial intelligence and anomaly detection.
- Industrial Automation & Robotics: Autonomous mobile robots (AMRs), robotic arm vision guidance, and factory asset tracking.
- Smart Access Control & IoT: Enterprise security gates, biometric scanners, and intelligent home automation hubs.
Package Includes
- 1 x RZBoard V2L Single Board Computer
- 1 x Dual-Band U.FL Connected External Antenna
- 1 x Quick Start Instruction Card
Technical Specification
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Renesas RZ/V Series Single Board Computer |
| Item Type | Vision-AI Accelerated Single Board Computer (SBC) |
| Model Order Code / SKU | RZBoard V2L / SKU-SPIDER-RZBOARD-V2L |
| Chipset Manufacturer & Model | Renesas RZ/V2L (Renesas / RZ Sub-brand) |
| Processor Architecture (CPU) | 2x ARM Cortex-A55 @ 1.2GHz + 1x ARM Cortex-M33 @ 200MHz |
| AI Acceleration Hardware | On-Chip DRP-AI Accelerator & Mali 3D GPU |
| System Memory (RAM) | 2 GB DDR4 RAM |
| Onboard Storage Media | 32 GB eMMC, 16 MB QSPI Flash, MicroSD Card Slot |
| Operating System Support | CIP Linux Kernel (Long-Term Support) |
| Wired & Wireless Networking | 1 Gbps RJ45 Ethernet (with LEDs), Wi-Fi 802.11ac, Bluetooth 5 |
| USB & Serial Interfaces | 2x USB 2.0 Host (Type-A), 1x USB 2.0 OTG (Micro-USB), CAN-FD (with Transceiver) |
| Display & Camera Ports | MIPI-DSI, Micro-HDMI (Display); MIPI-CSI (Camera) |
| Audio Interface | Dialog DA7212 Stereo Audio Codec routed to 3.5mm Jack |
| Expansion Connectors | Raspberry Pi HAT Compatible 40-Pin Header |
| Power Requirements | USB-C Power Adapter (5V, 2A DC) |
| Board Physical Dimensions | 12 cm Length × 8 cm Width × 3.5 cm Height (SBC Standard Format) |
| Package Shipping Weight | 0.055 kg (55 g) |
| Package Shipping Dimensions | 12 cm × 8 cm × 3.5 cm |
