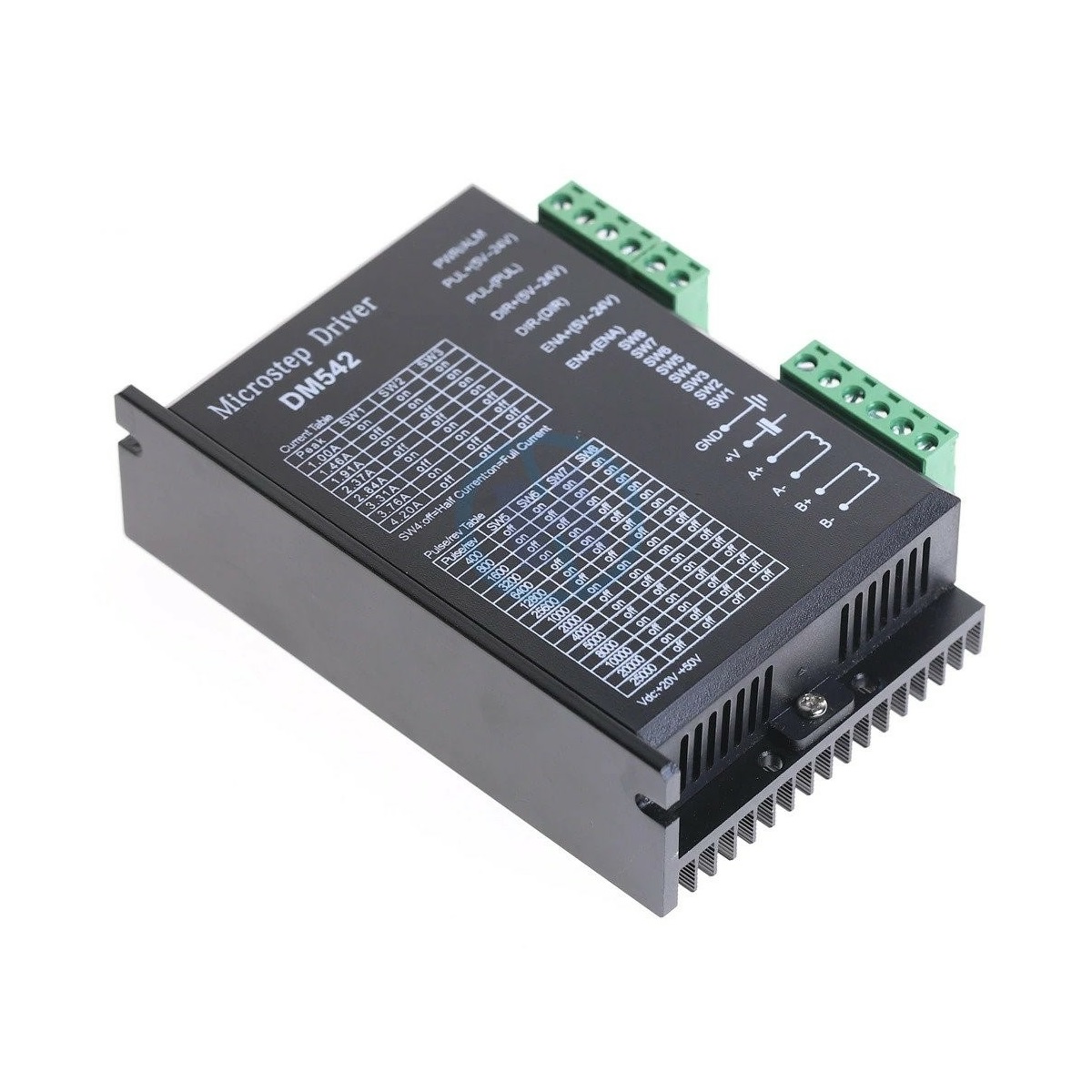

DM542 4.2A High-Performance Stepper Motor Driver for CNC Machines & 3D Printers
Description :
The Stepper Motor Driver DM542 4.2A is a sophisticated and high-performance motor control device designed specifically for driving stepper motors. Stepper motors are widely used in applications requiring precise positioning, accurate rotation, and controlled motion, such as CNC machines, 3D printers, robotics, engraving machines, and industrial automation systems.
The DM542 driver is engineered to provide stable motor control and efficient power amplification for demanding motion control applications. It supports advanced pure sinusoidal current control technology, which helps reduce motor noise, vibration, and heat generation while improving smoothness and accuracy during operation.
This driver features automatic idle-current reduction to minimize motor heating and power consumption when the motor is idle. It also incorporates self-adjustment technology for enhanced performance and reliability under varying operating conditions.
The DM542 supports up to 15 selectable microstep resolutions in decimal and binary modes, offering resolutions up to 25,600 steps per revolution for high precision applications. The current setting can be easily configured through DIP switches with 8 selectable current levels.
TTL compatible and optically isolated inputs provide reliable signal transmission and improved protection against electrical interference, making the driver suitable for industrial and automation environments.
This driver is suitable for 2-phase stepper motors and delivers excellent high-speed performance with smooth and stable motor operation.
Features:
- Extremely cost-effective design
- Excellent high-speed performance
- Automatic idle-current reduction
- 3-state current control technology
- Self-adjustment technology
- Pure sinusoidal current control technology
- TTL compatible and optically isolated inputs
- Supports up to 25,600 steps per revolution
- 15 selectable microstep resolutions
- DIP switch current setting with 8 selectable values
- Suitable for 2-phase stepper motors
- Low motor noise and smooth operation
Package Includes:
- 1 x Stepper Motor Driver DM542 4.2A
Specification :
| Model Series | Two Trees Series |
| Voltage Rating (V) | 24 to 60VDC |
| Current Rating (A) | 4.5 |
| Input Voltage (VDC) | 24 ~ 60 |
| Output Current (A) | 4.5A |
| Logic Current (mA) | 10 ~ 20mA |
| Operating Temperature (°C) | -15°C to +45°C |
| Supported Motor Type | 2-Phase Stepper Motor |
| Maximum Microstep Resolution | 25,600 steps/rev |
| Shipping Weight | 0.153 kg |
| Shipping Dimensions | 13 × 9 × 4 cm |
