SPIDER Automation Raspberry Pi 4 Model B 4GB RAM | Quad-Core SBC & Dual 4K Desktop Workstation
Description
SPIDER Automation Raspberry Pi 4 Model B is the flagship model in the world-famous Raspberry Pi lineup, bringing ground-breaking increases in processor speed, multimedia capabilities, system memory, and network throughput. Driven by the 64-bit Broadcom BCM2711 quad-core Cortex-A72 processor operating at 1.5GHz, the Pi 4 delivers smooth multi-tasking and desktop-grade application performance. Coupled with 4GB of high-speed LPDDR4 SDRAM, it easily manages heavy computational workloads and intensive desktop environments.
Designed with modern connectivity in mind, the Pi 4 replaces legacy interfaces with dual micro-HDMI ports capable of driving two separate 4K monitors simultaneously, dual USB 3.0 ports for high-speed external storage transfers, and Bluetooth 5.0 for extended range and double the data rates. Powered reliably via a reversible USB Type-C port supporting 5V/3A operation, and retaining complete backwards compatibility with standard 40-pin HAT pinouts, the Raspberry Pi 4 B provides an unmatched platform for professional engineering, robotics, and edge computing.
Key Features
- Broadcom BCM2711 SoC: Quad-core 64-bit ARM Cortex-A72 processor clocked at 1.5GHz for exceptional execution speeds.
- 4GB LPDDR4-3200 RAM: High-bandwidth system memory ensuring fluid desktop navigation and heavy application handling.
- Dual 4K Micro-HDMI Output: Connect up to two independent displays at resolutions up to 4K at 60Hz with H.265 hardware decode support.
- True Gigabit Ethernet: High-speed wired networking controller delivering unthrottled local network performance.
- Dual-Band Wi-Fi & Bluetooth 5.0: Integrated 802.11ac wireless LAN and BT 5.0 offering 4x range and 2x speed over previous generations.

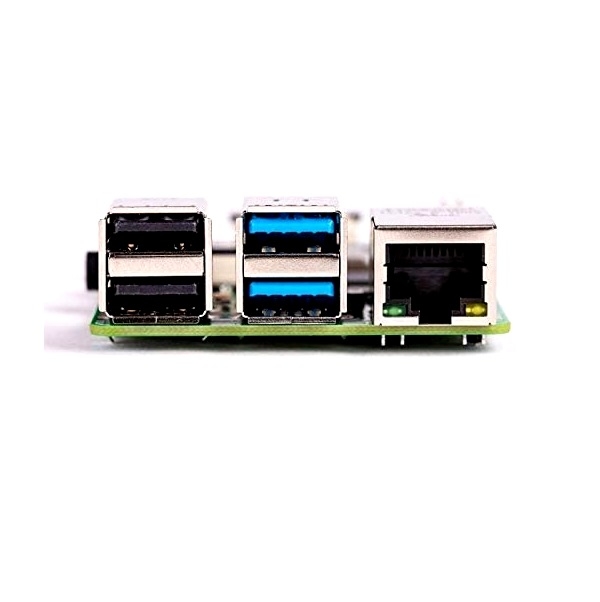

- USB 3.0 Integration: Two USB 3.0 ports alongside two USB 2.0 ports for rapid data exchange with hard drives and peripherals.
- USB-C Power Interface: Modern 5V/3A power input supporting higher current delivery to power connected accessories safely.
- Standard 40-Pin GPIO Header: Fully backwards-compatible low-level pinout supporting all standard industrial and hobbyist HATs.
Benefits
- PC-Level Capabilities: Easily replaces entry-level desktop computers for web browsing, document editing, and software compilation.
- Advanced Multimedia Hub: Effortlessly stream 4K ultra-high-definition video content with hardware-accelerated video decoding.
- Robust Ecosystem Support: Fully compatible with Raspberry Pi OS, Ubuntu, and a vast library of open-source Linux software.
Applications
- Edge Computing & IoT Gateways: Deploying smart industrial monitoring nodes, data loggers, and local server environments.
- Dual-Screen Workstations: Setting up compact desktop productivity stations with dual 4K monitor support.
- Media Center & Digital Signage: Building high-end media players, home automation dashboards, and commercial display systems.
- Embedded Prototyping & Robotics: Interfacing physical sensors, motors, and camera modules using the CSI/DSI and 40-pin GPIO headers.
Package Includes
- 1 x Raspberry Pi 4 Model B (4GB RAM) Single Board Computer

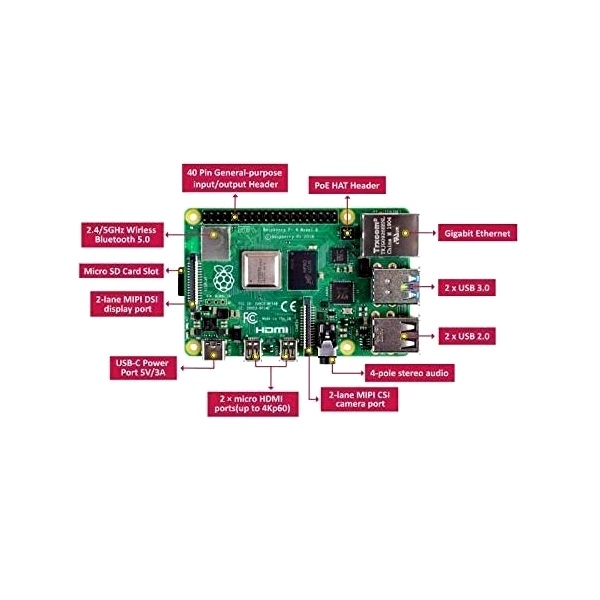

Technical Specifications
| Parameter | Specification |
|---|---|
| Brand / Series | SPIDER Automation / Raspberry Pi 4 Range |
| Item Type | Single Board Computer (SBC) |
| Model Order Code / SKU | Raspberry Pi 4 Model B / SKU-SPIDER-RPI-4B-4GB |
| Processor (SoC) | Broadcom BCM2711, Quad-Core Cortex-A72 (ARM v8) 64-bit @ 1.5GHz |
| System RAM Memory | 4 GB LPDDR4-3200 SDRAM |
| Graphics Processing Unit | Broadcom VideoCore VI, OpenGL ES 3.0 support |
| Wireless Networking | Dual-Band 2.4GHz & 5GHz IEEE 802.11.b/g/n/ac Wi-Fi, Bluetooth 5.0 |
| Wired Network Interface | Gigabit Ethernet (Supports PoE via optional PoE HAT) |
| General-Purpose I/O | Standard 40-Pin GPIO Header (Fully HAT compatible) |
| Video & Display Outputs | 2 × Micro-HDMI Ports (Supports up to 4Kp60 dual display) |
| Camera & Display Connectors | 2-Lane MIPI CSI Camera Port & 2-Lane MIPI DSI Display Port |
| USB & Storage Interfaces | 2 × USB 3.0 Ports, 2 × USB 2.0 Ports, MicroSD Card Slot |
| Audio Interface | 4-Pole Stereo Audio & Composite Video Jack, HDMI Audio Out |
| Power Requirements | 5V / 3A DC Input via USB Type-C Connector |
| Board Physical Dimensions | 85 mm × 56 mm × 17 mm |
| Package Shipping Weight | 0.057 kg (57 g) |
| Package Shipping Dimensions | 10 cm × 6 cm × 2 cm |
