Ingenium Drives 300W BLDC Motor Driver | 12-56VDC 15A 3-Phase Brushless DC Motor Controller with Hall Sensor Support
Description
Brushless DC motors require precise 3-phase commutation to control motor phases at appropriate timings. Ingenium Drives brings you a robust 300W Brushless DC Motor Drive, engineered to efficiently drive 3-phase BLDC motors equipped with Hall Effect sensors in a reliable closed-loop configuration.
This high-performance driver offers versatile operation through dual control mechanisms: it can be managed via external microcontrollers or industrial controllers like PLCs and SCMs, or adjusted manually using a built-in onboard potentiometer for seamless speed regulation. Designed for industrial efficiency, it delivers a large starting torque, rapid acceleration, quick braking, and smooth clockwise/counter-clockwise directional switching, offering a perfect combination of manual flexibility and automated precision.
Key Features
- Dual Speed Control Modes: Operate using an external controller (PLC/SCM) or the built-in manual potentiometer.
- High Power Output: Delivers up to 15A current capacity for demanding 300W motor load requirements.
- Dynamic Response: Features rapid start/brake cycles, high starting torque, and smooth directional switching.
- Safety & Timing Control: Includes customizable acceleration/deceleration time settings and a dedicated alarm signal output.
Benefits
- Versatile Integration: Easily interfaces with standard industrial automation hardware and microcontroller setups.
- Precise Motion Control: Closed-loop operation ensures stable speed maintenance under varying loads.
- Reliable Protection: Built-in safeguards and feedback mechanisms prevent system overloads and motor stalling.
Applications
- Industrial Automation Machinery & Conveyor Systems
- Autonomous Mobile Robots (AMRs) & AGVs
- CNC Machine Spindles & Custom Robotics
- Pumps, Fans, and Variable Speed Actuators
Package Includes

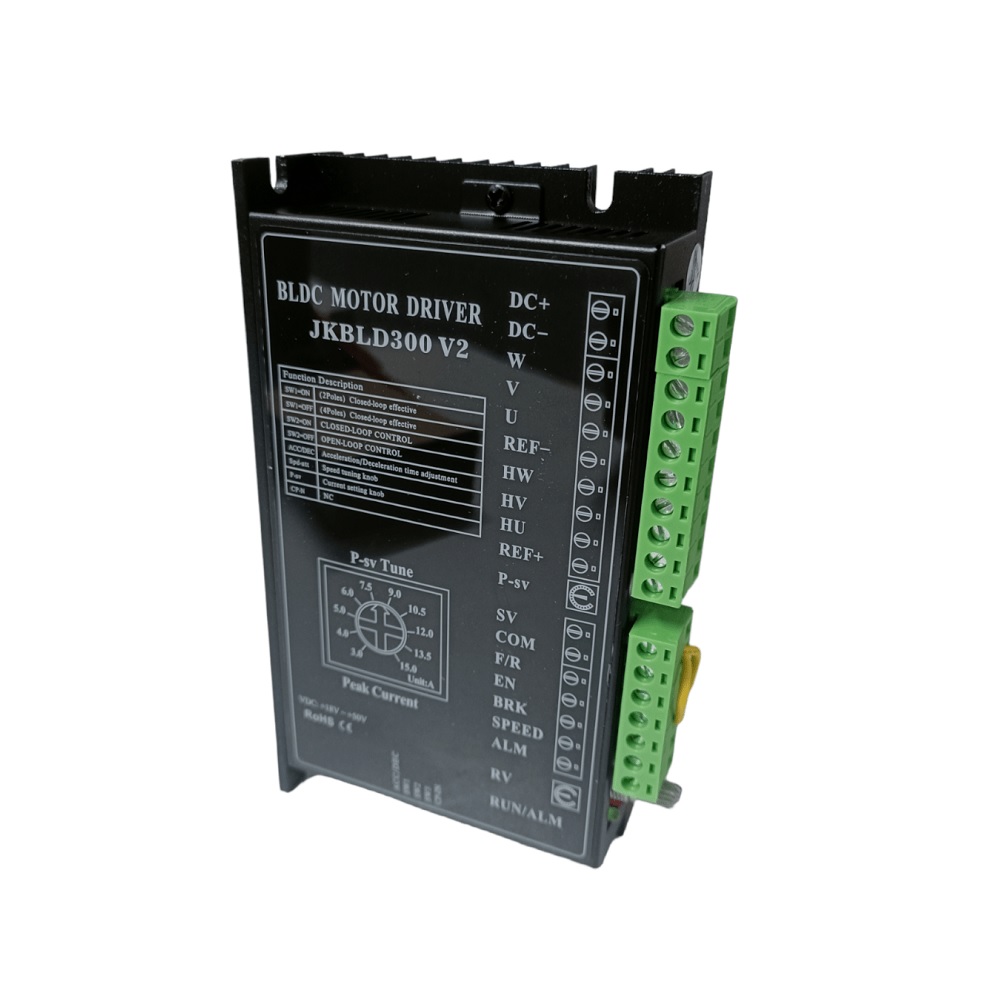

- 1 x BLD300 Brushless DC Motor Driver
Specifications
| Parameter | Specification |
|---|---|
| Item Type / Series | BLD Series Brushless DC Motor Driver |
| Model Number | BLD300 |
| Operating Voltage Range | 12 to 56 VDC (Rated: 48V / Range: 18 to 50VDC recommended) |
| Output Current Rating | 15 Amps Max |
| Control Interface | External Control Signals (PLC / SCM) & Built-in Potentiometer |
| Motor Compatibility | 3-Phase BLDC Motors with Hall Effect Sensors |
| Dimensions (L x W x H) | 142 x 90 x 33 mm |
| Weight | 306g (Shipping Weight: 336g) |
