Description

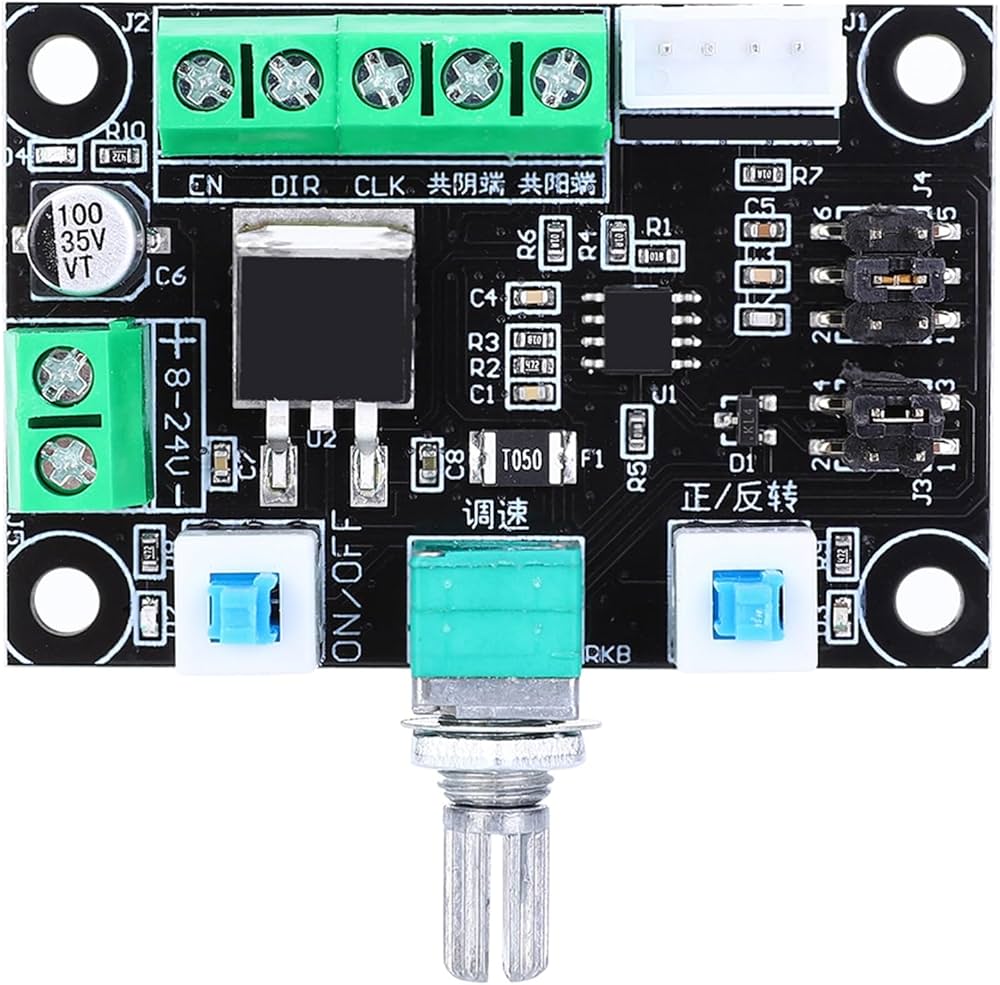

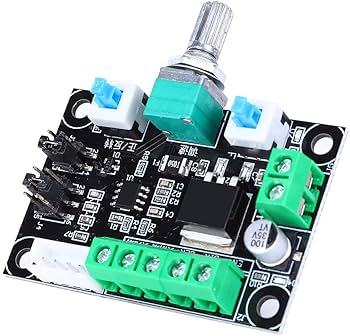

The MKS OSC Stepper Motor Controller Module is a compact pulse and PWM signal generator designed for controlling stepper motor drivers in CNC machines, 3D printers, automation systems, and motion control applications. The module generates pulse signals required by external stepper motor drivers for precise motor speed and direction control.
This controller module can be used to create a simple standalone motion control platform when combined with a stepper driver, stepper motor, and DC power supply. It supports PWM signal generation and pulse output, making it suitable for testing, debugging, and operating stepper motor systems without requiring a microcontroller.
The module supports multiple selectable frequency ranges, allowing flexible speed adjustment for different types of stepper motor drivers and applications. It also supports both common anode and common cathode driver connection methods, ensuring compatibility with a wide range of industrial and DIY stepper drivers.
The MKS OSC controller is widely used for motor testing, conveyor systems, positioning systems, CNC applications, and educational electronics projects.
Features
- Compact pulse and PWM signal generator module
- Designed for stepper motor driver control
- Supports pulse and PWM signal output
- Multiple selectable frequency ranges
- Supports speed and direction control
- Compatible with common anode and common cathode drivers
- Suitable for CNC machines and 3D printers
- Easy integration with external stepper drivers
- Can be used as a standalone motor control platform
- Simple wiring and operation
- Compact and lightweight design
Supported Frequency Ranges
- 5.4 kHz to 160 kHz
- 540 Hz to 16.6 kHz
- 80 Hz to 2.4 kHz
Driver Signal Compatibility
| Signal Name | Equivalent Labels | Function |
|---|---|---|
| EN | ENA / FREE | Enable Signal |
| PUL | PULS / CLK | Pulse Signal |
| DIR | CW / CCW | Direction Signal |
Applications
- 3D printers
- CNC machines
- Stepper motor testing
- Motion control systems
- Conveyor systems
- Automation equipment
- DIY electronics projects
- Educational and training projects
Package Includes
- 1 × MKS OSC Stepper Motor Controller PWM Pulse Generator Module
Technical Specifications
| Parameter | Value |
|---|---|
| Item Type | Stepper Motor Controller |
| Operating Voltage | 8V to 24V DC |
| Signal Output | Pulse and PWM |
| Supported Driver Modes | Common Anode and Common Cathode |
| Frequency Ranges | 80Hz to 160kHz |
| Color | Multi-color PCB |
| Length | 5.8 cm |
| Width | 3.8 cm |
| Weight | 15 g |
| Shipping Weight | 0.02 kg |
| Shipping Dimensions | 6 × 4 × 1 cm |
