TMC2209 UART Stepper Motor Driver Module with Heatsink
Description
The latest version of the TMC2209 Stepper Motor Driver Module is a high-performance ultra-quiet motor driver designed for 3D printers, CNC machines, robotics, and precision motion control applications. This upgraded version provides direct UART functionality, eliminating the need for additional UART wiring and simplifying system integration.
The driver features advanced Trinamic motor control technologies including StealthChop™ for silent motor operation and SpreadCycle™ for smooth and precise motor movement. These technologies significantly reduce motor noise, vibration, and resonance while improving overall motion quality and positioning accuracy.
The integrated MicroPlyer™ interpolation unit supports up to 1/256 microstepping resolution, enabling highly accurate sinusoidal motor control even in systems with limited pulse rates. The module is designed to remain compatible with existing 3D printer controller boards and standard StepStick-style driver sockets.
The TMC2209 supports both standalone STEP/DIR operation and advanced UART configuration modes, allowing flexible setup and tuning options through digital configuration pins or serial communication.
Built-in protection features guard against overheating, overcurrent, undervoltage, and short-circuit conditions for reliable and safe operation. The included aluminum heatsink improves thermal dissipation and helps maintain stable performance during continuous operation.
Features
- Integrated UART functionality with simplified wiring
- Ultra-quiet motor operation using StealthChop™ technology
- SpreadCycle™ technology for smoother motor movement
- Supports up to 1/256 microstepping interpolation
- Compatible with 3.3V and 5V logic systems
- Supports STEP/DIR and UART configuration modes
- Built-in protection against overheating and short circuits
- Reduced motor vibration and resonance
- Integrated heatsink for improved cooling performance
- Compatible with standard StepStick-style sockets
Applications
- 3D printers
- CNC machines
- Robotics systems
- DIY automation projects
- Precision motion control applications
- Embedded motor control systems
Connection Diagram
Connection diagram available as per product reference documentation.

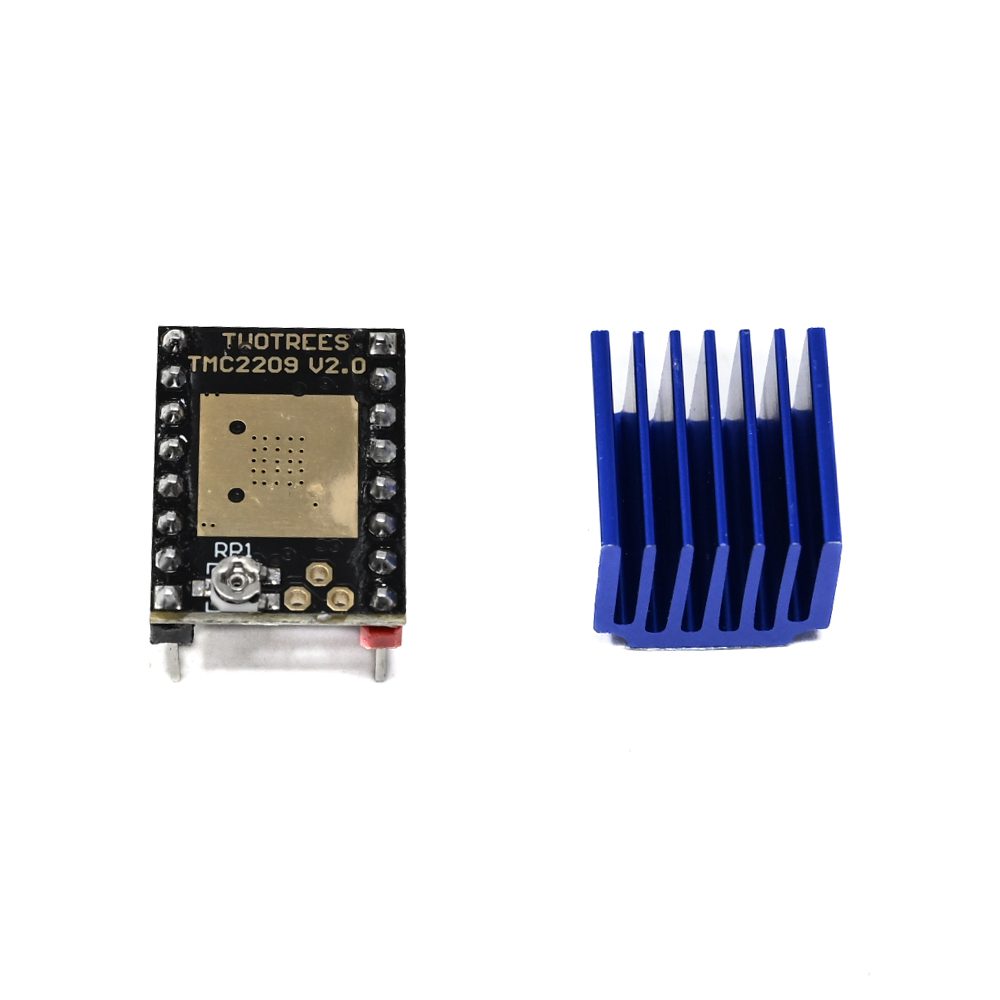

Package Includes
- 1 × TMC2209 Stepper Motor Driver
- 1 × Aluminum Heatsink
Specifications
| Parameter | Value |
|---|---|
| Model Series | TMC Series |
| Operating Voltage | 4.75V – 29V DC |
| Logic Voltage | 3.3V – 5V |
| Current Rating | 2A – 2.8A |
| Maximum Current | 2.8A Peak per Phase |
| Continuous Current | 2A per Phase |
| Microstepping | Up to 1/256 Step |
| Configuration Modes | CFG Pins or UART |
| Motor Control Technologies | StealthChop™, SpreadCycle™ |
| Dimensions (L × W × H) | 21 × 15 × 13 mm |
| Weight | 6 g |
| Shipping Weight | 0.01 kg |
| Shipping Dimensions | 10 × 8 × 3 cm |
